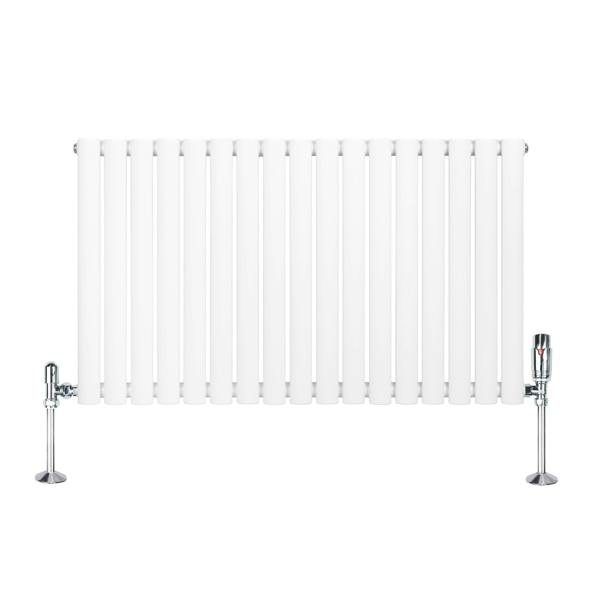

Monstershop Oval Single Column Radiator & Valves – 600mm x 1020mm – White

A clean, architectural look meets practical heating with the Monstershop Oval Single Column Radiator & Valves set. Finished in white with a triple layered powder coating, this 600mm x 1020mm radiator brings a crisp, modern presence to living spaces, bedrooms and home offices, while the included polished chrome thermostatic valve set completes the installation with a coordinated finish.

Made from 1.5mm carbon steel, the 17-column design uses individual oval tubes sized 50mm x 25mm, with a 10mm gap between tubes. Heat output is rated at 2625 BTU at 50 and 3310 BTU at 60 (769W at 50 and 970W at 60). Supplied with secure brackets, a fixing kit and a flexible cleaning brush, it is tested to BS EN 442 and ISO9001:2015 standards and carries CE and UKCA certification.

Key features

• Monstershop oval single column radiator with thermostatic valve set
• White finish with triple layered powder coating
• 600mm x 1020mm size
• Heat output: 3310 BTU at 60
• Standard 0.5" BSP inlet/outlet compatibility
• Angled thermostatic valves with rotary knob control
• Temperature range: 6–28 degrees
• 15-year radiator guarantee and 10-year valve guarantee

Specifications

Radiator

• Material: 1.5mm carbon steel
• Weight: 17.2kg
• Height: 600mm / 60cm / 23.6”
• Width: 1020mm / 102cm / 40.2”
• Radiator depth: 56mm / 5.6cm / 2.2”
• Depth with bracket: 83mm / 8.3cm / 3.3”
• Number of columns: 17
• Gap between tubes: 10mm / 1cm / 0.4”
• Individual oval tube size: 50mm x 25mm
• BTU rating @ 50: 2625
• BTU rating @ 60: 3310
• Watt rating @ 50: 769
• Watt rating @ 60: 970
• Max working temperature: 95°C
• Max working pressure: 10 Bar
• Test pressure: 13 Bar
• Recommended application area: 10m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 554mm / 55.4cm / 21.8”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• CE certificate: CE & UKCA

Valves

• Material: Brass
• Finish: Polished chrome
• Weight: 0.9kg
• Style: Angled
• Control style: Rotary knob
• Type: Thermostatic
• Temperature range: 6–28 degrees
• Maximum bar pressure: 12
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm

In the box

• 1 x Oval single column radiator
• 4 x Secure brackets
• 1 x Fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
