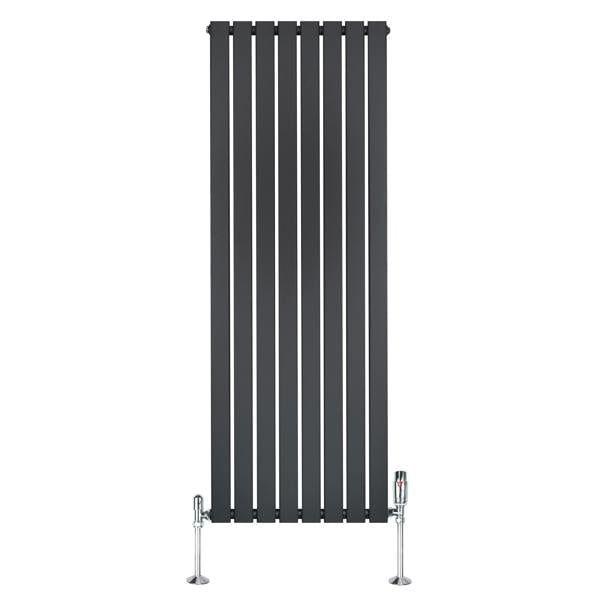

Monstershop Flat Single Column Radiator & Valves – 1600mm x 560mm – Anthracite Grey

A bold, architectural update for contemporary interiors, the Monstershop Flat Single Column Radiator & Valves set pairs an anthracite grey radiator with a polished chrome thermostatic valve set. Measuring 1600mm x 560mm, it brings a tall, slim profile that suits a wide range of rooms while keeping the look clean and understated.

Made from 1.5mm carbon steel and finished in triple layered powder coating, the radiator combines a flat, single column format with 8 columns and individual tube sizing of 60mm x 15mm. Heat output is rated at 4195 BTU @ 60 (1229W @ 60), with a maximum working temperature of 95°C and maximum working pressure of 5 Bar. Supplied with secure brackets, a fixing kit and a flexible cleaning brush, it’s also backed by CE & UKCA certification, BS EN 442 testing and a 15-year guarantee.

Key features

• Flat single column radiator with 8 columns
• Size: 1600mm (H) x 560mm (W)
• Colour: anthracite grey
• Material: 1.5mm carbon steel
• Heat output: 4195 BTU @ 60
• Standard 0.5" BSP inlet/outlet size
• Includes angled thermostatic valve set with rotary knob control (6–28 degrees)
• Supplied with brackets, fixing kit and flexible cleaning brush
• CE & UKCA certified; tested to BS EN 442 & ISO9001:2015 standards

Specifications

Radiator

• Weight: 22.5kg
• Finish: triple layered powder coating
• Height: 1600mm / 160cm / 63”
• Width: 560mm / 56cm / 22”
• Radiator depth: 46mm / 4.6cm / 1.8”
• Depth with bracket: 73mm / 7.3cm / 2.9”
• Gap between tubes: 10mm / 1cm / 0.4”
• Individual flat tube size: 60mm x 15mm
• BTU rating @ 50: 3304
• BTU rating @ 60: 4195
• Watt rating @ 50: 968
• Watt rating @ 60: 1229
• Max working temperature: 95°C
• Max working pressure: 5 Bar
• Test pressure: 6.5 Bar
• Recommended application area: 12m²
• Inlets/outlets size: standard 0.5" BSP bore
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 1554mm / 155.4cm / 61.2”
• Compatibility: all UK & EU heating systems

Valves

• Material: brass
• Finish: polished chrome
• Weight: 0.9kg
• Style: angled
• Type: thermostatic
• Control style: rotary knob
• Temperature range: 6-28 degrees
• Maximum bar pressure: 12
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm
• Guarantee length: 10 years

In the box

• 1 x Flat Single Column Radiator
• 4 x Secure Brackets
• 1 x Practical Fixing Kit
• 1 x Flexible Cleaning Brush
• 1 x Thermostatic Valve Set

Support & warranty

• Radiator guarantee: 15 years
• Valve guarantee: 10 years

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
