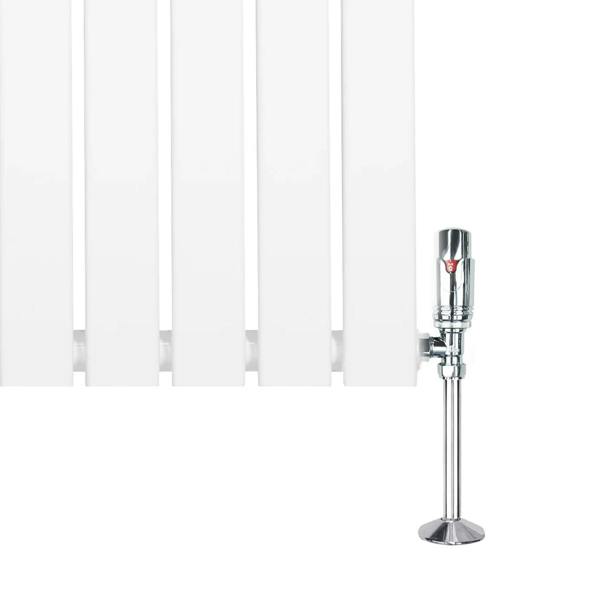

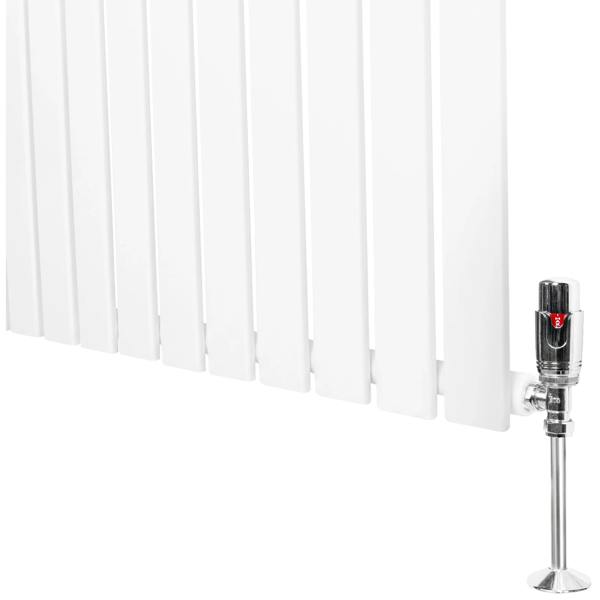

Monstershop Flat Single Column Radiator & Valves – 1800mm x 420mm – White

A clean, architectural look meets practical heating with the Monstershop Flat Single Column Radiator & Valves. This white, flat-panel radiator measures 1800mm x 420mm and is supplied with a polished chrome thermostatic valve set for a coordinated finish.

Made from 1.5mm carbon steel and finished with triple layered powder coating, it combines a slim 46mm radiator depth with a 6-column layout and 60mm x 15mm flat tubes. Heat output is rated at 2843 BTU @ 50 and 3614 BTU @ 60 (833 watts @ 50 and 1059 watts @ 60). With standard 0.5" BSP inlets/outlets and compatibility with all UK & EU heating systems, it suits a wide range of installations. A flexible cleaning brush is included to help keep the surface looking its best.

Key features

• Flat single column radiator with 6 columns
• Size: 1800mm x 420mm
• Colour: white
• Triple layered powder coating finish
• Heat output: 3614 BTU @ 60 (1059 watts @ 60)
• Standard 0.5" BSP bore inlets/outlets
• Supplied with angled thermostatic valve set in polished chrome
• Includes secure brackets, fixing kit and flexible cleaning brush
• 15-year guarantee (radiator) and 10-year guarantee (valves)
• CE & UKCA certified; tested to BS EN 442 and ISO9001:2015 standards

Specifications

Radiator

• Material: 1.5mm carbon steel
• Weight: 19.2kg
• Height: 1800mm / 180cm / 70.9”
• Width: 420mm / 42cm / 16.5”
• Radiator depth: 46mm / 4.6cm / 1.8”
• Depth with bracket: 73mm / 7.3cm / 2.9”
• Gap between tubes: 10mm / 1cm / 0.4”
• Individual flat tube size: 60mm x 15mm
• BTU rating @ 50: 2843
• BTU rating @ 60: 3614
• Watt rating @ 50: 833
• Watt rating @ 60: 1059
• Max working temperature: 95°C
• Max working pressure: 5 Bar
• Test pressure: 6.5 Bar
• Recommended application area: 11m²
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 1754mm / 175.4cm / 69.1”
• Compatibility: all UK & EU heating systems

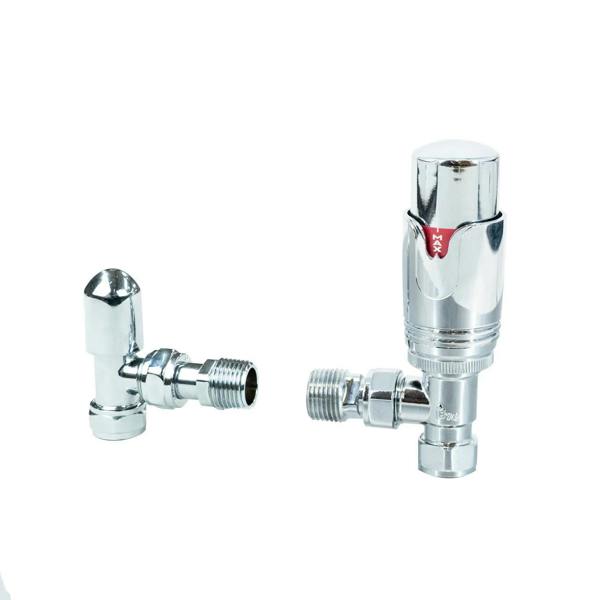

Valves

• Material: brass
• Finish: polished chrome
• Weight: 0.9kg
• Style: angled
• Type: thermostatic
• Control style: rotary knob
• Temperature range: 6-28 degrees
• Maximum bar pressure: 12
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm

In the box

• 1 x Flat Single Column Radiator
• 4 x Secure Brackets
• 1 x Practical Fixing Kit
• 1 x Flexible Cleaning Brush
• 1 x Thermostatic Valve Set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
