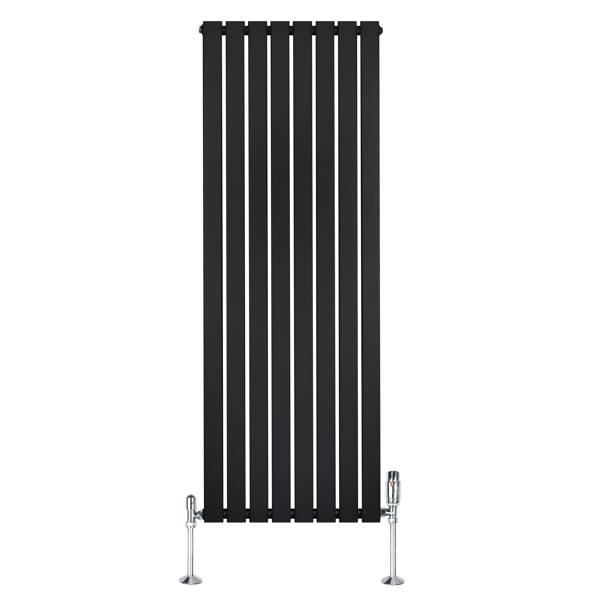

Monstershop Flat Single Column Radiator & Valves – 1600mm x 560mm – Black

A bold, architectural update for contemporary interiors, the Monstershop Flat Single Column Radiator & Valves combines a tall black radiator with a polished chrome thermostatic valve set. Measuring 1600mm x 560mm, it brings a clean, vertical profile that suits a wide range of rooms while keeping the look streamlined.

Made from 1.5mm carbon steel with a triple layered powder coating, it pairs a durable finish with a flat-tube design. Heat output is rated at 4195 BTU at 60 (1229 watts) and 3304 BTU at 50 (968 watts), with a recommended application area of 12m². The angled thermostatic valves use a rotary knob for temperature adjustment from 6 to 28 degrees, and include an integrated lock shield valve to help regulate water flow. Fixtures and fittings are supplied, alongside a flexible cleaning brush for straightforward upkeep.

Key features

• Flat single column radiator with 8 columns
• 1600mm x 560mm size in a black finish
• 1.5mm carbon steel construction with triple layered powder coating
• Heat output: 4195 BTU at 60; 3304 BTU at 50
• Supplied with angled thermostatic valve set in polished chrome
• Temperature control range: 6 to 28 degrees
• Includes secure brackets, fixing kit and flexible cleaning brush
• CE and UKCA certified; tested to BS EN 442 and ISO9001:2015 standards
• 15-year guarantee on the radiator; 10-year guarantee on the valves

Specifications

Radiator

• Colour: Black
• Weight: 22.5kg
• Material: 1.5mm carbon steel
• Finish: Triple layered powder coating
• Height: 1600mm / 160cm / 63”
• Width: 560mm / 56cm / 22”
• Radiator depth: 46mm / 4.6cm / 1.8”
• Depth with bracket: 73mm / 7.3cm / 2.9”
• Gap between tubes: 10mm / 1cm / 0.4”
• Individual flat tube size: 60mm x 15mm
• Number of columns: 8
• BTU rating @ 50: 3304
• BTU rating @ 60: 4195
• Watt rating @ 50: 968
• Watt rating @ 60: 1229
• Max working temperature: 95°C
• Max working pressure: 5 bar
• Test pressure: 6.5 bar
• Recommended application area: 12m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 1554mm / 155.4cm / 61.2”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• CE certificate: CE & UKCA

Valves

• Material: Brass
• Finish: Polished chrome
• Weight: 0.9kg
• Style: Angled
• Control style: Rotary knob
• Type: Thermostatic
• Temperature range: 6-28 degrees
• Maximum bar pressure: 12
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm
• Guarantee length: 10 years

In the box

• 1 x Flat single column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
