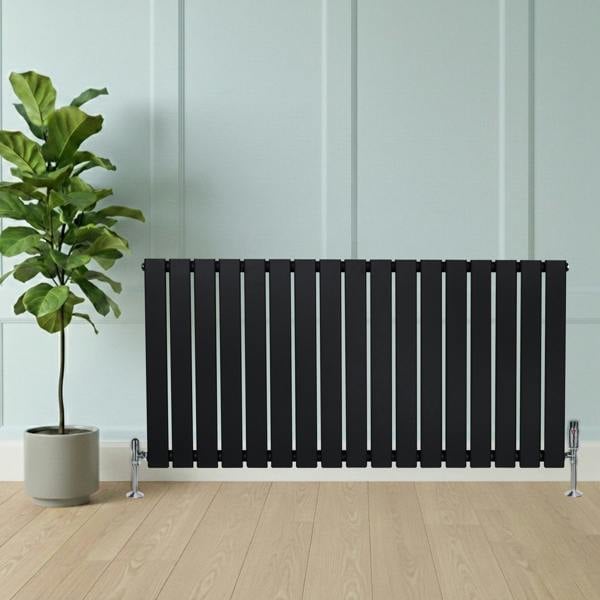

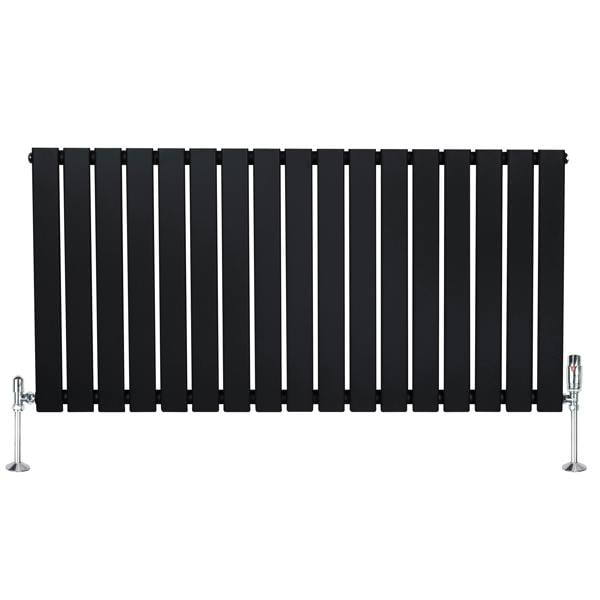

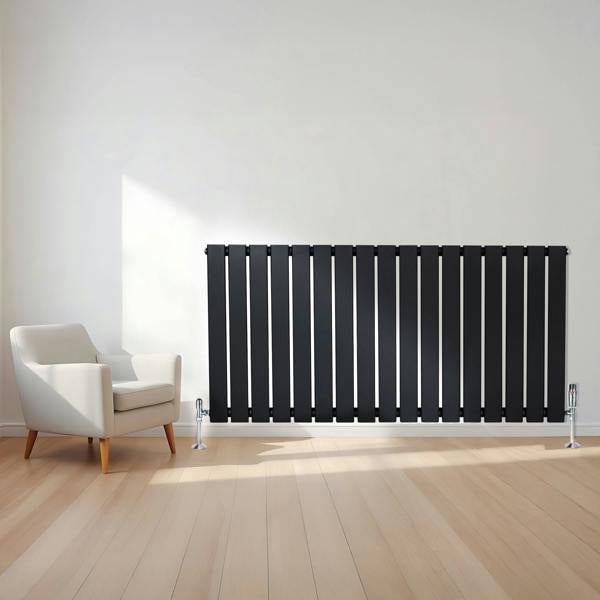

Monstershop Flat Single Column Radiator & Valves – 600mm x 1190mm – Black

A bold, architectural update for modern interiors, the Monstershop Flat Single Column Radiator & Valves set pairs a black, triple-layer powder-coated radiator with a polished chrome thermostatic valve set. Measuring 600mm high by 1190mm wide, it brings a clean, flat-profile look while delivering a BTU rating @ 60 of 3685 (1080W @ 60) for dependable room heating.

Made from 1.5mm carbon steel with 17 columns and 60mm x 15mm flat tubes, it’s built for everyday use with a maximum working temperature of 95°C and maximum working pressure of 5 bar. Standard 0.5" BSP inlets/outlets support compatibility with all UK & EU heating systems, while the angled thermostatic valves offer rotary control with a 6–28 degrees temperature range and an integrated lock shield valve for water flow regulation.

Key features

• Monstershop flat single column radiator with thermostatic valve set
• Size: 600mm (H) x 1190mm (W)
• Heat output: 3685 BTU rating @ 60; 1080W rating @ 60
• Triple layered powder coating in black
• Standard 0.5" BSP bore inlets/outlets
• Includes secure brackets, fixing kit and flexible cleaning brush
• CE and UKCA certified; tested to BS EN 442 and ISO9001:2015 standards
• 15-year guarantee (radiator) and 10-year guarantee (valves)

Specifications

Radiator

• Colour: Black
• Material: 1.5mm carbon steel
• Finish: Triple layered powder coating
• Weight: 19.6kg
• Height: 600mm / 60cm / 23.6”
• Width: 1190mm / 119cm / 46.9”
• Radiator depth: 46mm / 4.6cm / 1.8”
• Depth with bracket: 73mm / 7.3cm / 2.9”
• Gap between tubes: 10mm / 1cm / 0.4”
• Individual flat tube size: 60mm x 15mm
• Number of columns: 17
• BTU rating @ 50: 2918
• BTU rating @ 60: 3685
• Watt rating @ 50: 855
• Watt rating @ 60: 1080
• Max working temperature: 95°C
• Max working pressure: 5 bar
• Test pressure: 6.5 bar
• Recommended application area: 11m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 549mm / 54.9cm / 21.6”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• CE certificate: CE & UKCA

Valves

• Material: Brass
• Finish: Polished chrome
• Weight: 0.9kg
• Style: Angled
• Control style: Rotary knob
• Type: Thermostatic
• Temperature range: 6-28 degrees
• Maximum bar pressure: 12
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm
• Guarantee length: 10 years

In the box

• 1 x Flat single column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
