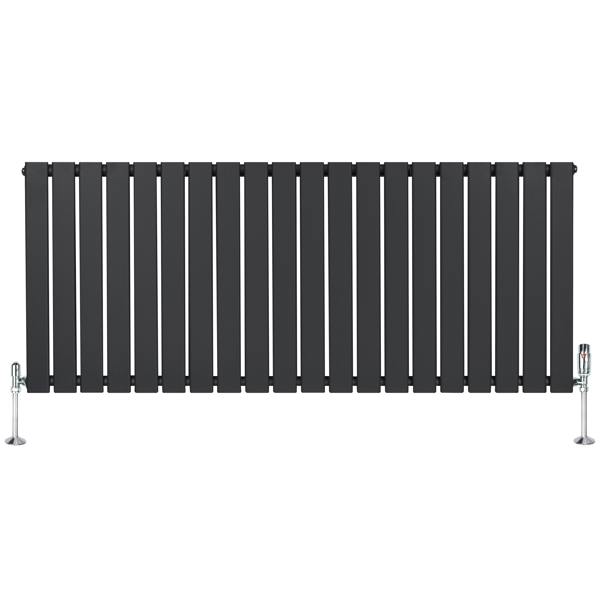

Monstershop Flat Single Column Radiator & Valves – 600mm x 1400mm – Anthracite Grey

A bold, architectural update for contemporary interiors, the Monstershop Flat Single Column Radiator & Valves set pairs an anthracite grey radiator with a polished chrome thermostatic valve set. Sized at 600mm x 1400mm, it brings a clean, flat-tube look to living spaces, hallways and larger rooms, with a recommended application area of 13m².

Made from 1.5mm carbon steel and finished in triple layered powder coating, the 20-column design uses individual flat tubes measuring 60mm x 15mm, with a 10mm gap between tubes. Heat output is rated at 4335 BTU @ 60 (1270W @ 60), with a maximum working temperature of 95°C and maximum working pressure of 5 Bar. Standard 0.5" BSP inlets/outlets support straightforward integration, while the angled thermostatic valves offer rotary control with a 6–28 degrees temperature range.

Key features

• Monstershop flat single column radiator with thermostatic valve set
• 600mm (60cm) height and 1400mm (140cm) width
• Anthracite grey finish with triple layered powder coating
• 20 columns with 60mm x 15mm individual flat tubes
• Heat output: 4335 BTU @ 60; 1270W @ 60
• Standard 0.5" BSP bore inlets/outlets
• Angled, polished chrome thermostatic valves with rotary knob control
• Includes flexible cleaning brush, brackets and fixing kit

Specifications

Radiator

• Colour: Anthracite Grey
• Material: 1.5mm Carbon Steel
• Finish: Triple Layered Powder Coating
• Weight: 22.8kg
• Height: 600mm / 60cm / 23.6”
• Width: 1400mm / 140cm / 55.1”
• Radiator Depth: 46mm / 4.6cm / 1.8”
• Depth With Bracket: 73mm / 7.3cm / 2.9”
• Gap Between Tubes: 10mm / 1cm / 0.4”
• Individual Flat Tube Size: 60mm x 15mm
• Number Of Columns: 20
• BTU Rating @ 50: 3433
• BTU Rating @ 60: 4335
• Watt Rating @ 50: 1006
• Watt Rating @ 60: 1270
• Max Working Temperature: 95°C
• Max Working Pressure: 5 Bar
• Test Pressure: 6.5 Bar
• Recommended Application Area: 13m²
• Inlets/Outlets Size: Standard 0.5" BSP Bore
• Distance From Wall To Centre Of Inlet: 44mm / 4.4cm / 1.7”
• Valve-To-Valve Height: 549mm / 54.9cm / 21.6”
• Compatibility: All UK & EU Heating Systems
• Testing: BS EN 442 & ISO9001:2015 Standards
• CE Certificate: CE & UKCA

Valves

• Type: Thermostatic
• Style: Angled
• Control Style: Rotary Knob
• Material: Brass
• Finish: Polished Chrome
• Weight: 0.9kg
• Temperature Range: 6-28 Degrees
• Maximum Bar Pressure: 12
• Maximum Flow Temperature: 100 Degrees
• Nominal Flow Rate: 2.8L/m
• Connection: 1/2" x 15mm
• Guarantee Length: 10 Years

In the box

• 1 x Flat Single Column Radiator
• 4 x Secure Brackets
• 1 x Practical Fixing Kit
• 1 x Flexible Cleaning Brush
• 1 x Thermostatic Valve Set

Support & warranty

• Radiator guarantee: 15 years
• Valve guarantee: 10 years

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
