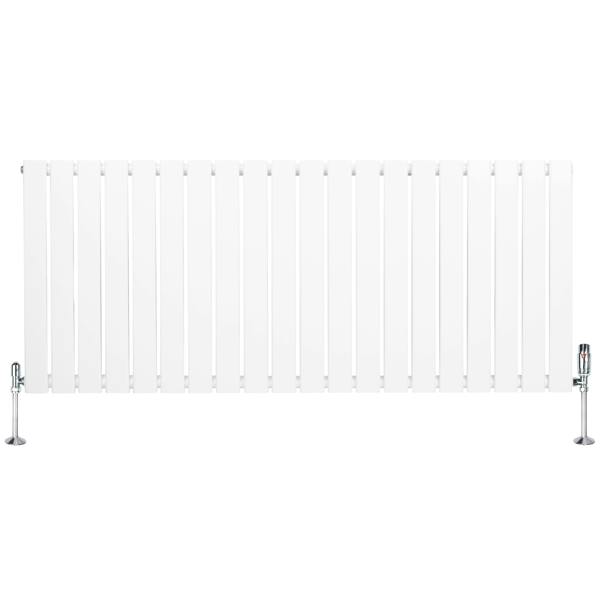

Monstershop Flat Single Column Radiator & Valves – 600mm x 1400mm – White

A clean, architectural look meets practical heating with the Monstershop Flat Single Column Radiator & Valves in white. Measuring 600mm x 1400mm, this 20-column design is made from 1.5mm carbon steel and finished with a triple layered powder coating for a crisp, durable appearance. With a depth of 46mm (73mm with bracket), it suits a wide range of interiors while keeping a slim profile on the wall.

Heat output is rated at 3433 BTU @ 50 and 4335 BTU @ 60 (1006W @ 50 and 1270W @ 60), with a recommended application area of 13m². Standard 0.5" BSP inlets/outlets support straightforward integration, and the set includes polished chrome angled thermostatic valves with rotary control and a 6-28 degrees temperature range. A lock shield valve is included for water flow regulation, while the supplied flexible cleaning brush helps keep the flat tubes looking their best.

Key features

• Flat single column radiator with 20 columns
• Size: 600mm x 1400mm
• Heat output: 4335 BTU @ 60 (1270W @ 60)
• Made from 1.5mm carbon steel with triple layered powder coating
• Standard 0.5" BSP bore inlets/outlets
• Angled thermostatic valve set with rotary knob control
• Temperature range: 6-28 degrees
• CE and UKCA certified; tested to BS EN 442 and ISO9001:2015 standards
• 15-year guarantee (radiator) and 10-year guarantee (valves)

Specifications

Radiator

• Colour: White
• Weight: 22.8kg
• Material: 1.5mm carbon steel
• Finish: Triple layered powder coating
• Height: 600mm / 60cm / 23.6”
• Width: 1400mm / 140cm / 55.1”
• Radiator depth: 46mm / 4.6cm / 1.8”
• Depth with bracket: 73mm / 7.3cm / 2.9”
• Gap between tubes: 10mm / 1cm / 0.4”
• Individual flat tube size: 60mm x 15mm
• Number of columns: 20
• BTU rating @ 50: 3433
• BTU rating @ 60: 4335
• Watt rating @ 50: 1006
• Watt rating @ 60: 1270
• Max working temperature: 95°C
• Max working pressure: 5 Bar
• Test pressure: 6.5 Bar
• Recommended application area: 13m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 549mm / 54.9cm / 21.6”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• CE certificate: CE & UKCA

Valves

• Material: Brass
• Finish: Polished chrome
• Weight: 0.9kg
• Style: Angled
• Control style: Rotary knob
• Type: Thermostatic
• Temperature range: 6-28 degrees
• Maximum bar pressure: 12
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm
• Guarantee length: 10 years

In the box

• 1 x Flat single column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set

Support & warranty

• Radiator guarantee: 15 years
• Valve guarantee: 10 years

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
