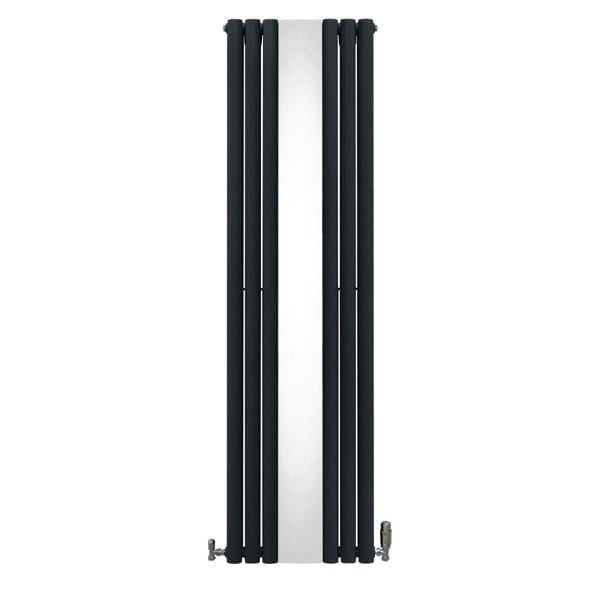

Monstershop Oval Mirror Radiator & Valves - 1800mm x 500mm - Anthracite Grey

Bring a refined focal point to your heating with the Monstershop Oval Mirror Radiator & Valves, a vertical oval panel radiator in anthracite grey with a central mirror. Measuring 1800mm x 500mm, it combines a triple layered powder-coated finish with a 1.5mm carbon steel body and 6-column construction, creating a clean, architectural look suited to a wide range of interiors.

Heat output is rated at 5009 BTU @ 60 (3944 BTU @ 50), with 50mm steel tubes and a 9mm gap between tubes. The integrated mirror measures 1800mm x 145mm with a 5mm thickness, supported by a steel back plate. Supplied with a chrome-finished angled thermostatic valve set in brass, temperature control is managed via a rotary knob with a 6–28 degrees range, alongside lockshield functionality. Standard 0.5" BSP inlets/outlets support compatibility with all UK & EU heating systems, and the set is CE & UKCA certified and tested to BS EN 442 and ISO9001:2015 standards.

Key features

• Vertical oval panel radiator with central mirror
• 5009 BTU heat output @ 60 (3944 BTU @ 50)
• Anthracite grey finish with triple layered powder coating
• 6-column design with 50mm tubes
• Standard 0.5" BSP inlet/outlet size

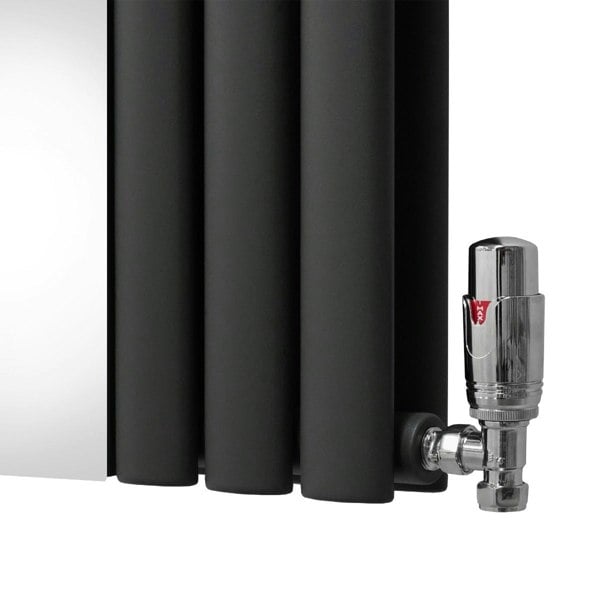

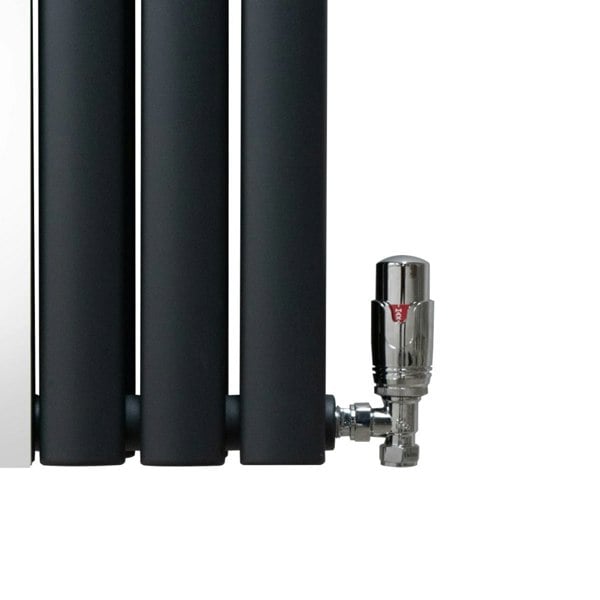

• Includes angled thermostatic valve set in polished chrome finish
• CE & UKCA certified; tested to BS EN 442 and ISO9001:2015 standards
• 15-year guarantee (radiator) and 10-year guarantee (valves)

Specifications

Radiator

• Colour: Anthracite Grey
• Material: 1.5mm Carbon Steel
• Finish: Triple Layered Powder Coating
• Weight: 37.75kg
• Height: 1800mm / 180cm / 70.9”
• Width: 500mm / 50cm / 19.7”
• Radiator Depth: 78mm / 7.8cm / 3.1”
• Depth With Bracket: 103mm / 10.3cm / 4.1”
• Individual Tube Size: 50mm / 5cm / 2”
• Gap Between Tubes: 9mm / 0.9cm / 0.4”
• Number Of Columns: 6
• BTU Rating @ 50: 3944
• BTU Rating @ 60: 5009
• Mirror Dimensions: 1800mm x 145mm
• Mirror Thickness: 5mm
• Inlets/Outlets Size: Standard 0.5" BSP Bore
• Compatibility: All UK & EU Heating Systems
• Testing: BS EN 442 & ISO9001:2015 Standards
• CE Certificate: CE & UKCA

Valves

• Material: Brass
• Finish: Polished Chrome
• Weight: 0.9kg
• Style: Angled
• Control Style: Rotary Knob
• Type: Thermostatic
• Temperature Range: 6-28 Degrees
• Maximum Bar Pressure: 12
• Maximum Flow Temperature: 100 Degrees
• Nominal Flow Rate: 2.8L/m
• Connection: 1/2" x 15mm
• Guarantee Length: 10 Years

In the box

• 1 x Oval Panel Mirror Radiator
• 4 x Secure Brackets
• 1 x Practical Fixing Kit
• 1 x Flexible Cleaning Brush
• 1 x Thermostatic Valve Set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.

Rackhams Reference : WD6G8EARJ4
