Monstershop Flat Mirror Radiator & Valves - 1800mm x 565mm - Black

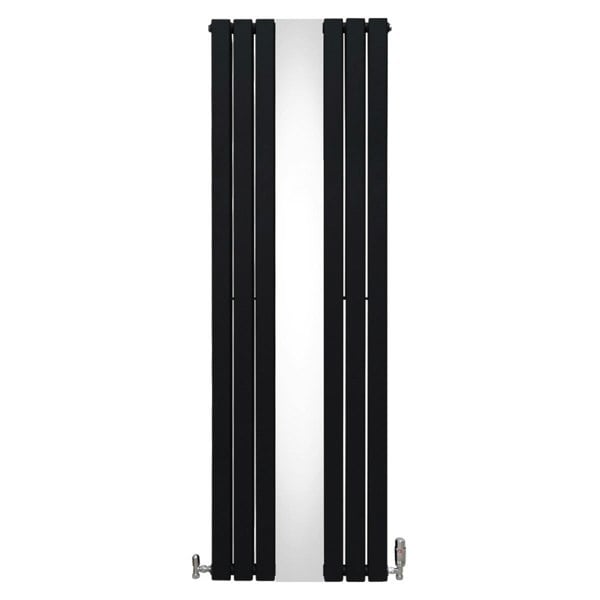

Bring a refined, contemporary look to your heating with the MonsterShop Flat Mirror Radiator & Valves, a black vertical flat panel radiator with an integrated central mirror and a chrome-finished thermostatic valve set. Measuring 1800mm high by 565mm wide, it creates a strong visual statement while keeping the profile neat, with a 58mm radiator depth and 93mm depth with bracket.

Made from 1.5mm carbon steel and finished in a triple layered powder coating, it combines a durable build with a clean, architectural finish. The 6-column design uses 60mm steel tubes with a 10mm gap between tubes, and delivers a BTU rating @ 60 of 8092 (BTU rating @ 50: 6372). A 1800mm x 145mm mirror with 5mm thickness sits centrally, supported by a steel plate on the back. Supplied with brackets, a fixing kit and a flexible cleaning brush, it is tested to BS EN 442 & ISO9001:2015 standards and carries CE & UKCA certification.

Key features

• MonsterShop vertical flat panel mirror radiator in black
• Size: 1800mm x 565mm
• Heat output: 8092 BTU rating @ 60 (6372 BTU rating @ 50)
• 6-column construction with 60mm tubes
• Triple layered powder coating finish
• Standard 0.5" BSP bore inlets/outlets
• Compatible with all UK & EU heating systems

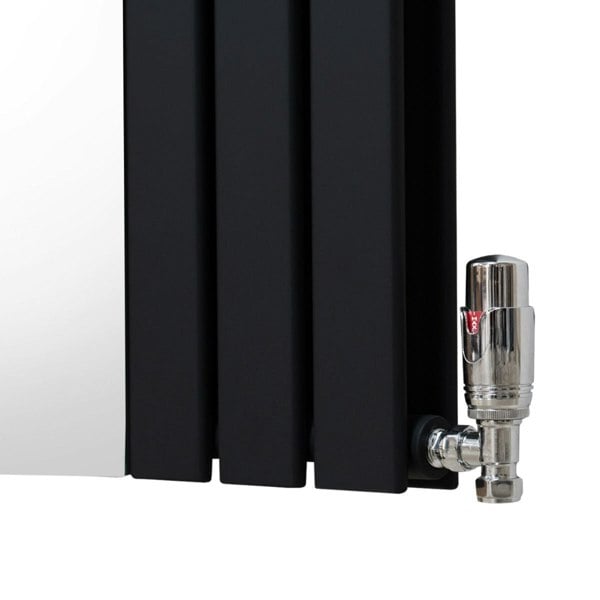

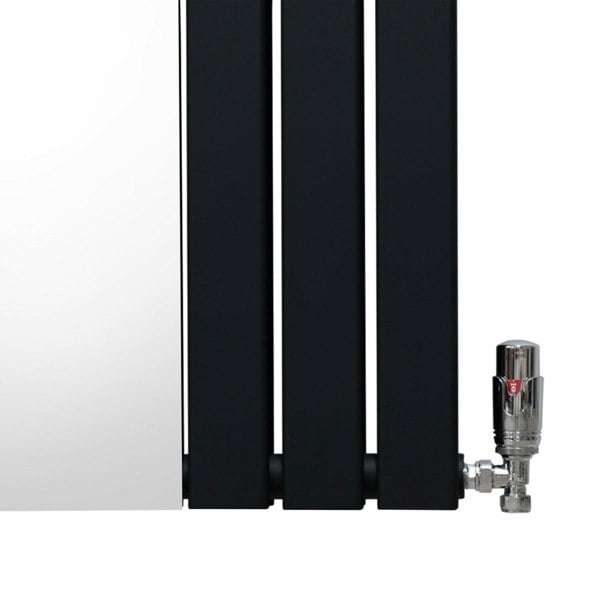

• Includes chrome thermostatic angled valve set
• 15-year guarantee (radiator)

Specifications

Radiator

• Colour: Black
• Material: 1.5mm carbon steel
• Weight: 48.4kg
• Finish: Triple layered powder coating
• Height: 1800mm / 180cm / 70.9”
• Width: 565mm / 56.5cm / 22.2”
• Radiator depth: 58mm / 5.8cm / 2.3”
• Depth with bracket: 93mm / 9.3cm / 3.7”
• Gap between tubes: 10mm / 1cm / 0.4”
• Individual tube size: 60mm / 6cm / 2.4”
• Number of columns: 6
• BTU rating @ 50: 6372
• BTU rating @ 60: 8092
• Mirror dimensions: 1800mm x 145mm
• Mirror thickness: 5mm
• Inlets/outlets size: Standard 0.5" BSP bore
• Testing: BS EN 442 & ISO9001:2015 standards
• CE certificate: CE & UKCA

Valves

• Material: Brass
• Finish: Polished chrome
• Weight: 0.9kg
• Style: Angled
• Control style: Rotary knob
• Type: Thermostatic
• Temperature range: 6-28 degrees
• Maximum bar pressure: 12
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm
• Guarantee length: 10 years

In the box

• 1 x Flat panel mirror radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
