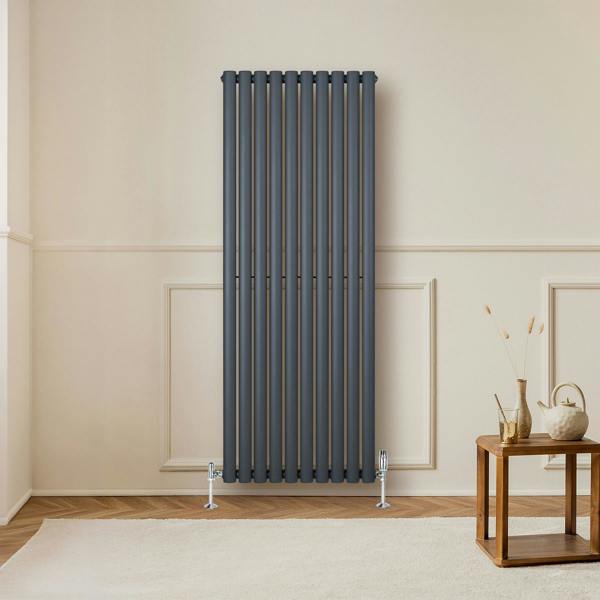

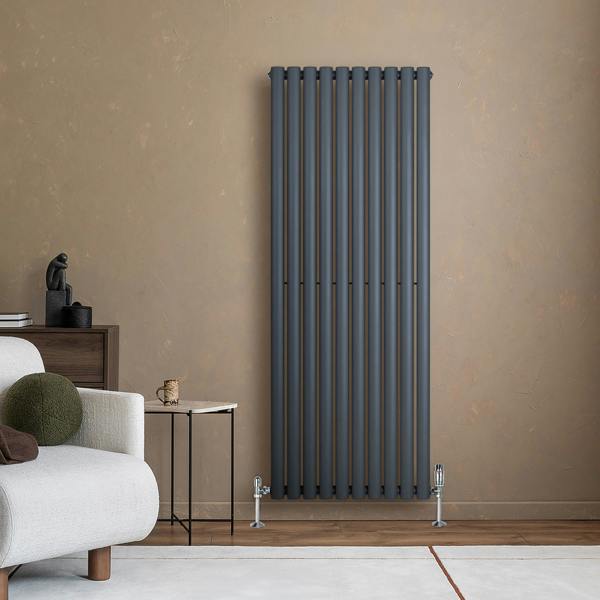

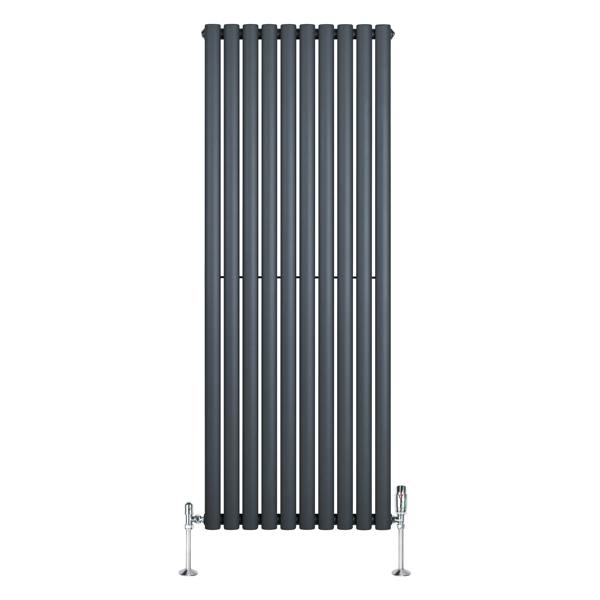

Monstershop Oval Single Column Radiator & Valves – 1600mm x 600mm – Anthracite Grey

Bring a confident, architectural look to your heating with the Monstershop Oval Single Column Radiator & Valves set. Finished in anthracite grey and supplied with a polished chrome thermostatic valve set, it pairs a bold vertical profile with practical control for everyday comfort.

Made from 1.5mm carbon steel and protected by a triple layered powder coating, the radiator measures 1600mm x 600mm and uses 10 columns with individual oval tubes sized 50mm x 25mm. Heat output is rated at 4800 BTU at 60 (1406 watts) and 3782 BTU at 50 (1108 watts). Standard 0.5" BSP inlets/outlets support straightforward compatibility, while the included angled thermostatic valves use a rotary knob with a 6–28 degrees temperature range.

Key features

• Monstershop oval single column radiator with thermostatic valve set
• Anthracite grey radiator with polished chrome valves
• 10-column design with 50mm x 25mm oval tubes
• Triple layered powder coating
• Standard 0.5" BSP bore inlets/outlets
• Angled thermostatic valves with rotary knob control
• Radiator guarantee length: 15 years
• Valve guarantee length: 10 years

Specifications

Radiator

• Material: 1.5mm carbon steel
• Colour: anthracite grey
• Weight: 24.5kg

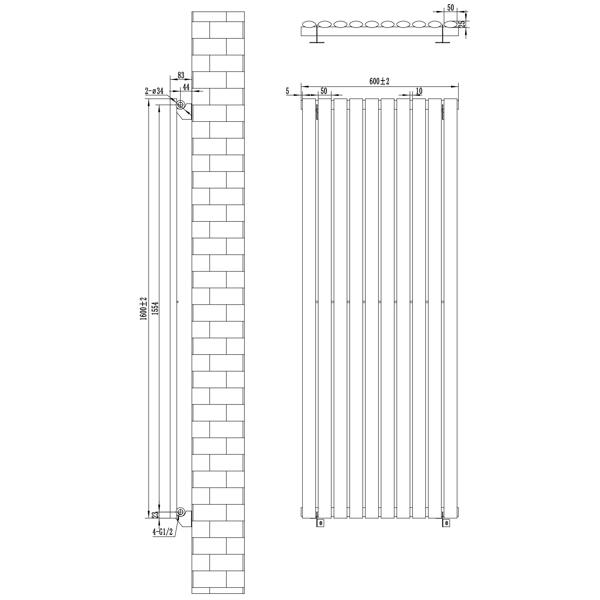

• Height: 1600mm / 160cm / 63”
• Width: 600mm / 60cm / 23.6”
• Radiator depth: 56mm / 5.6cm / 2.2”
• Depth with bracket: 83mm / 8.3cm / 3.3”
• Gap between tubes: 10mm / 1cm / 0.4”
• BTU rating @ 50: 3782
• BTU rating @ 60: 4800
• Watt rating @ 50: 1108
• Watt rating @ 60: 1406
• Max working temperature: 95°C
• Max working pressure: 10 bar
• Test pressure: 13 bar
• Recommended application area: 14m²
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 1554mm / 155.4cm / 61.2”
• Compatibility: all UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• Certification: CE & UKCA

Valves

• Material: brass
• Finish: polished chrome
• Weight: 0.9kg
• Style: angled
• Type: thermostatic
• Control style: rotary knob
• Temperature range: 6-28 degrees
• Maximum bar pressure: 12
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm

In the box

• 1 x oval single column radiator
• 4 x secure brackets
• 1 x practical fixing kit
• 1 x flexible cleaning brush
• 1 x thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
