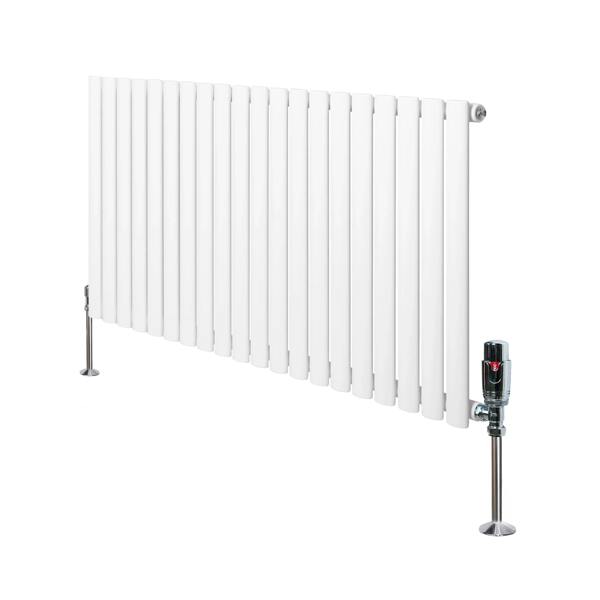

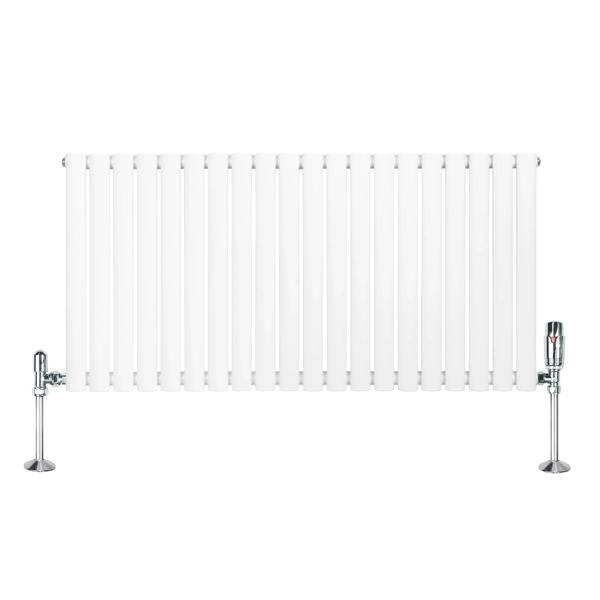

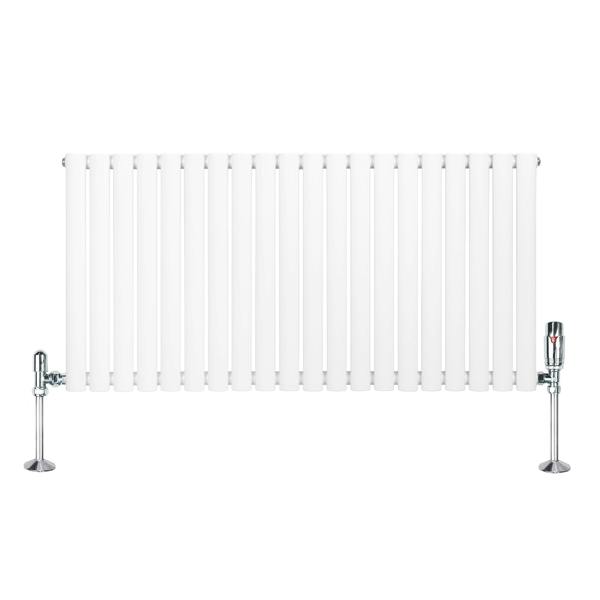

Monstershop Oval Single Column Radiator & Valves – 600mm x 1200mm – White

From MonsterShop, this oval single column Radiator & Valves set brings a crisp white finish and a clean, architectural profile to contemporary and classic interiors alike. Designed for reliable everyday heating, it combines a 20-column radiator with a chrome-finished thermostatic valve set for straightforward temperature control.

Made from 1.5mm carbon steel and finished with triple layered powder coating, the radiator is built for durability and resistance to wear. Heat output is rated at 3896 BTU @ 60 (1142 watts @ 60), with a maximum working temperature of 95C and maximum working pressure of 10 bar. The angled thermostatic valves use an easy rotary knob and offer a 6–28 degrees temperature range, with an integrated lock shield valve to help regulate water flow. Standard 0.5" BSP inlets/outlets support compatibility with all UK & EU heating systems.

Key features

• 20-column oval tube design with 50mm x 25mm individual tube size
• Triple layered powder-coated finish in white
• Heat output: 3896 BTU @ 60; 3089 BTU @ 50

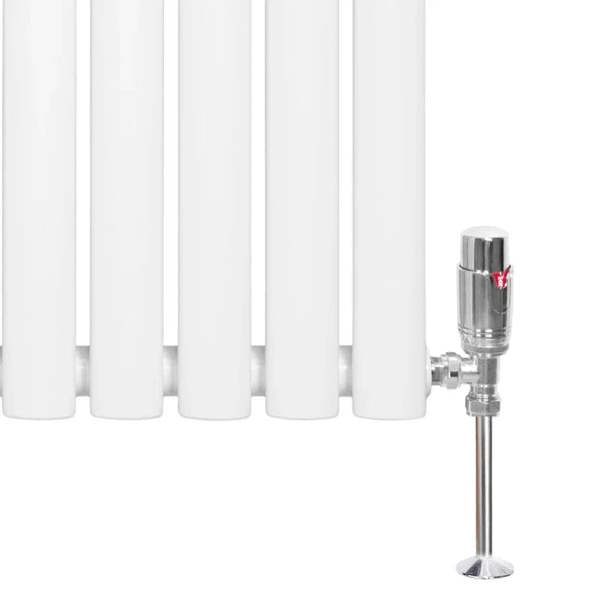

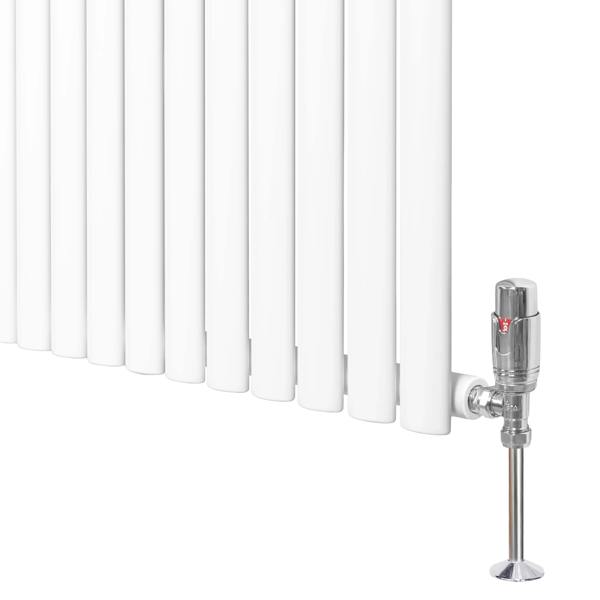

• Thermostatic angled valve set with rotary control and 6–28 degrees range
• Standard 0.5" BSP bore inlets/outlets
• BS EN 442 and ISO9001:2015 tested; CE & UKCA certified
• 15-year guarantee on radiator; 10-year guarantee on valves

Specifications

• Material: 1.5mm carbon steel
• Radiator depth: 56mm; depth with bracket: 83mm
• Gap between tubes: 10mm
• Watt rating: 1142 @ 60; 905 @ 50
• Max working temperature: 95C
• Max working pressure: 10 bar; test pressure: 13 bar
• Recommended application area: 11m²
• Valve material: brass; finish: polished chrome
• Valve maximum bar pressure: 12; maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Valve connection: 1/2" x 15mm

Sizing

• Radiator: 600mm H x 1200mm W
• Distance from wall to centre of inlet: 44mm
• Valve-to-valve height: 554mm

What's included

• 1 x Oval single column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.

Rackhams Reference : X643HFRNSK
