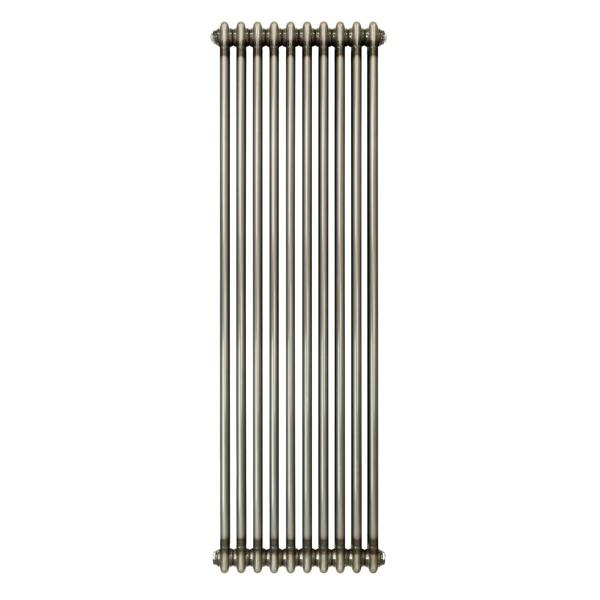

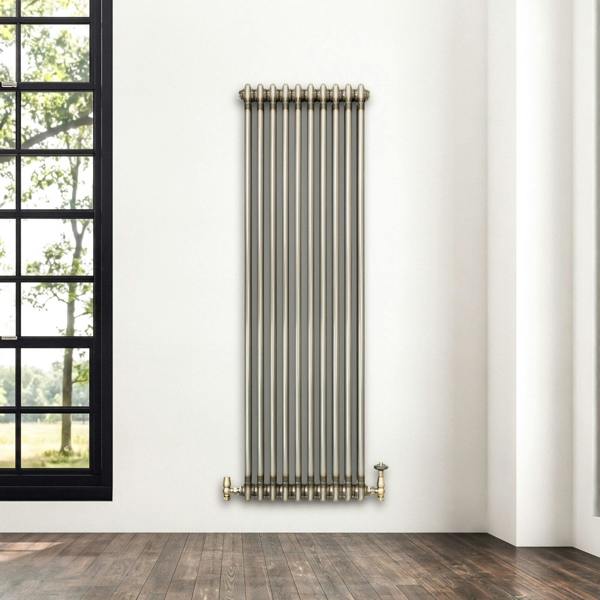

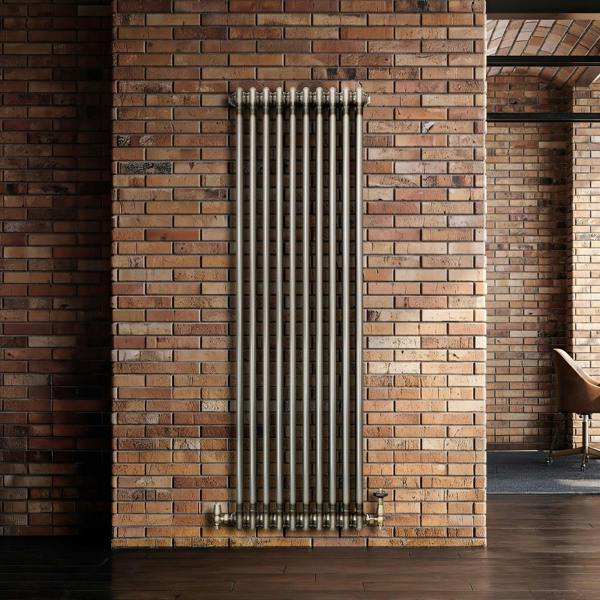

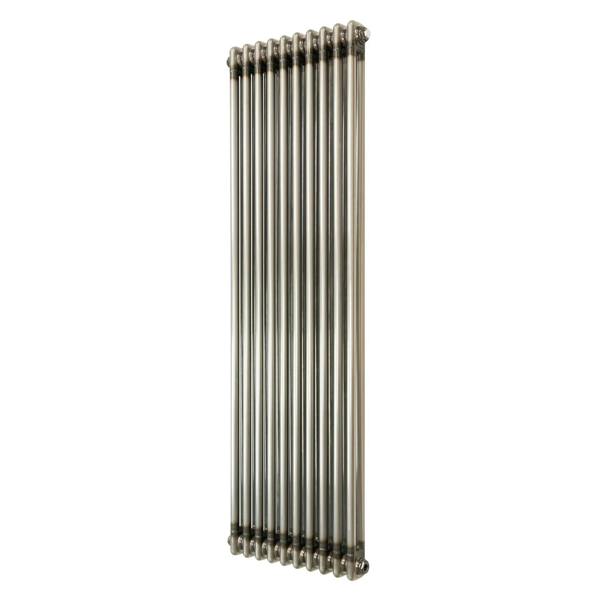

Monstershop Traditional 2 Column Radiator - 1500 x 470mm - Raw Metal

Bring an industrial edge to your heating with the Monstershop Traditional 2 Column Radiator in raw metal. This vertical, 10-column design is made from 1.5mm carbon steel and finished with a lacquer coating, creating a distinctive raw metal look that suits both contemporary and classic interiors.

Measuring 1500mm high and 470mm wide, it offers a compact footprint with a radiator depth of 68mm (92mm with bracket). Heat output is rated at 4070 BTU at 50 and 5111 BTU at 60, with watt ratings of 1192 at 50 and 1498 at 60. Standard 0.5" BSP inlets/outlets support straightforward valve selection, while the included brackets and fixing kit help keep installation neat and secure. Tested to BS EN 442 and ISO9001:2015 standards, and supplied with CE and UKCA certification, it’s backed by a 15-year guarantee.

Key features

• Traditional 2 column vertical radiator with 10 columns
• Raw metal colour with lacquer coating finish
• Heat output: 5111 BTU at 60 (4070 BTU at 50)
• Watt rating: 1498 at 60 (1192 at 50)
• Standard 0.5" BSP bore inlets/outlets
• Includes secure brackets, fixing kit and flexible cleaning brush
• CE and UKCA certified
• 15-year guarantee

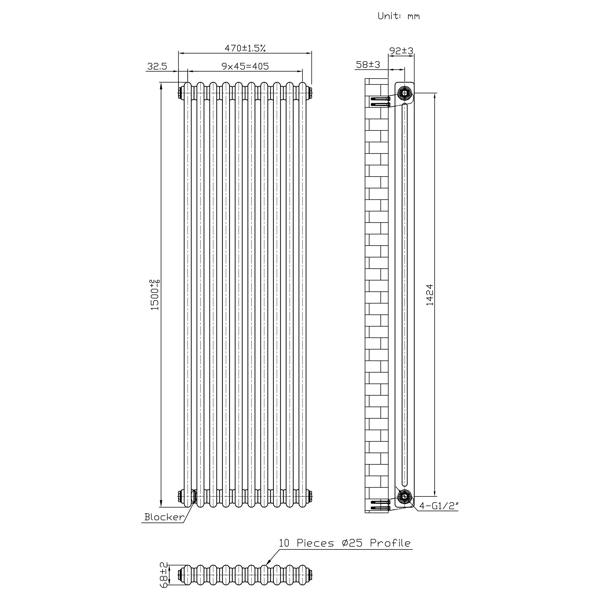

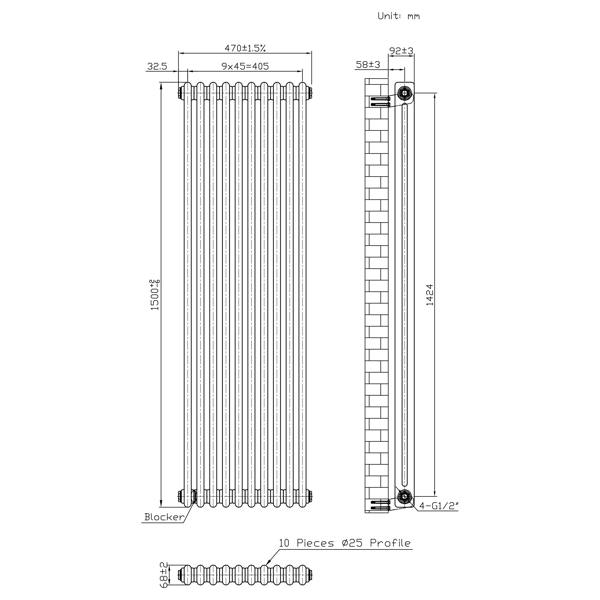

Specifications

• Material: 1.5mm carbon steel
• Weight: 22.3kg
• Height: 1500mm / 150cm / 59.1”
• Width: 470mm / 47cm / 18.5”
• Radiator depth: 68mm / 6.8cm / 2.7”
• Depth with bracket: 92mm / 9.2cm / 3.6”
• Gap between tubes: 45mm / 4.5cm / 1.8”
• Individual tube size: 25mm / 2.5cm / 1”
• Max working temperature: 95°C
• Max working pressure: 10 Bar
• Test pressure: 13 Bar
• Recommended application area: 7.9m²
• Heating surface area: 2.39m²
• Distance from wall to centre of inlet: 58mm / 5.8cm / 2.3”
• Valve-to-valve height: 1424mm / 142.4cm / 56.1”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards

In the box

• 1 x Traditional 2 Column Radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
