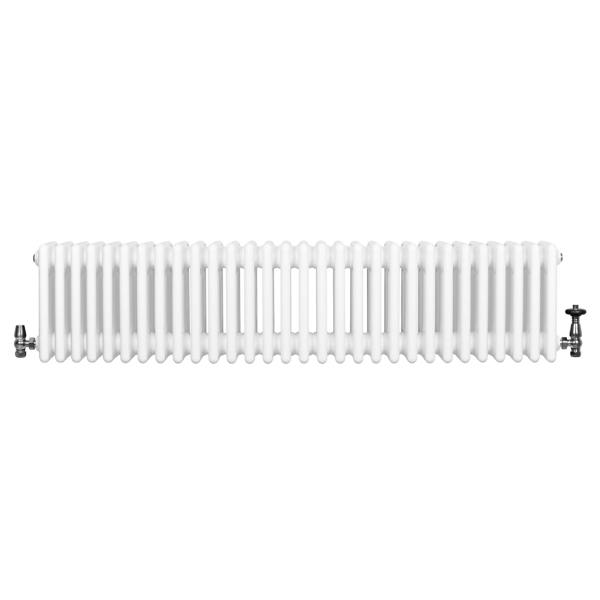

Monstershop Traditional 4 Column Radiator & Valves - 300 x 1370mm - White

A classic column profile meets a clean, contemporary finish in the Monstershop Traditional 4 Column Radiator & Valves. This horizontal radiator measures 300 x 1370mm and comes in white with a triple layered powder coating, bringing a crisp, architectural look to living spaces, hallways and larger rooms.

Made from premium 1.5mm carbon steel, it uses 30 columns with 25mm individual tube size and a 20mm gap between tubes. Heat output is rated at 5185 BTU @ 60 (1519 watts @ 60), with a maximum working temperature of 95°C and maximum working pressure of 12 bar. Supplied with a chrome thermostatic valve set in an angled style, temperature control is adjusted via a rotary knob with a 6–28°C range, alongside an integrated lockshield valve for water flow regulation. CE and UKCA certification is included, with testing to BS EN 442 and ISO9001:2015 standards.

Key features

• Traditional 4 column horizontal radiator with 30 columns
• 300 x 1370mm size with 140mm radiator depth
• Premium 1.5mm carbon steel construction
• Heat output: 5185 BTU @ 60 (1519 watts @ 60)
• Triple layered powder coating in white
• Standard 0.5" BSP bore inlets/outlets
• Includes angled chrome thermostatic valve set with 6–28°C control range
• CE and UKCA certified; tested to BS EN 442 and ISO9001:2015 standards
• 15-year guarantee on the radiator; 10-year guarantee on the valves

Specifications

Radiator

• Colour: White
• Weight: 36.6kg
• Material: 1.5mm carbon steel
• Finish: Triple layered powder coating
• Height: 300mm / 30cm / 11.8”
• Width: 1370mm / 137cm / 53.9”
• Radiator depth: 140mm / 14cm / 5.5”
• Depth with bracket: 155mm / 15.5cm / 6.1”
• Gap between tubes: 20mm / 2cm / 0.8”
• Individual tube size: 25mm / 2.5cm / 1”
• Number of columns: 30
• BTU rating @ 50: 4078
• BTU rating @ 60: 5185
• Watt rating @ 50: 1195
• Watt rating @ 60: 1519
• Max working temperature: 95°C
• Max working pressure: 12 bar
• Test pressure: 15.6 bar
• Recommended application area: 15m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 85mm
• Valve-to-valve height: 220mm / 22cm / 8.7”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• CE certificate: CE & UKCA

Valve set

• Colour: Silver chrome
• Material: Powder coated brass
• Weight: 0.9kg
• TRV dimensions: 137mm H x 85mm W x 55mm D
• Lockshield dimensions: 87mm H x 75mm W x 34mm D
• Style: Angled
• Control style: Rotary knob
• Type: Thermostatic
• Temperature range: 6-28 degrees
• Maximum bar pressure: 10
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm
• Guarantee length: 10 years

In the box

• 1 x Traditional 4 column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
