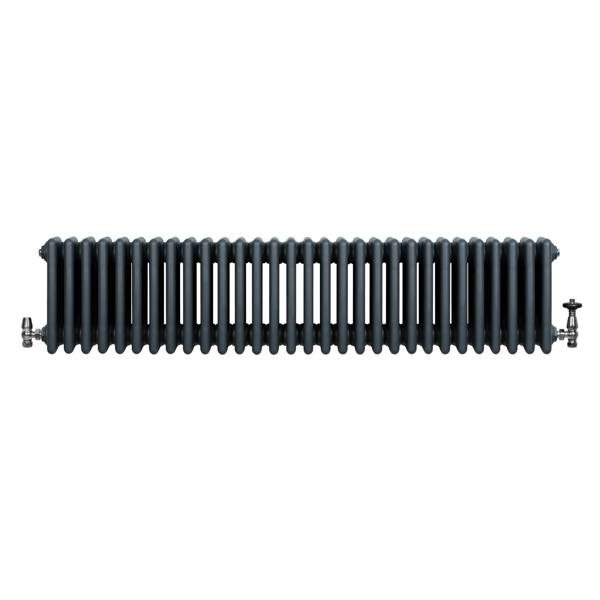

Monstershop Traditional 4 Column Radiator & Valves - 300 x 1370mm - Anthracite Grey

Bring a refined, traditional look to your heating with the MonsterShop Traditional 4 Column Radiator & Valves in anthracite grey. This horizontal radiator measures 300mm high by 1370mm wide and is made from 1.5mm carbon steel, finished with a triple layered powder coating for a durable, hard-wearing surface.

With 30 columns and 25mm steel tubes spaced 20mm apart, it delivers a BTU rating @ 60 of 5185 (1519W @ 60). Standard 0.5" BSP inlets/outlets support straightforward integration with UK and EU heating systems, while the supplied chrome thermostatic valve set provides rotary temperature control from 6–28°C, alongside a lockshield valve for regulating water flow. CE and UKCA certification and testing to BS EN 442 and ISO9001:2015 standards complete the specification, with a 15-year guarantee for the radiator and a 10-year guarantee for the valves.

Key features

• Traditional 4 column horizontal radiator with 30 columns
• Size: 300 x 1370mm
• Material: 1.5mm carbon steel
• Finish: triple layered powder coating
• Heat output: 5185 BTU rating @ 60 (1519W @ 60)
• Standard 0.5" BSP bore inlets/outlets
• Includes angled chrome thermostatic valve set with 6–28°C rotary control
• CE and UKCA certified; tested to BS EN 442 and ISO9001:2015 standards

Specifications

Radiator

• Colour: Anthracite Grey
• Weight: 36.6kg
• Height: 300mm / 30cm / 11.8”
• Width: 1370mm / 137cm / 53.9”
• Radiator depth: 140mm / 14cm / 5.5”
• Depth with bracket: 155mm / 15.5cm / 6.1”
• Gap between tubes: 20mm / 2cm / 0.8”
• Individual tube size: 25mm / 2.5cm / 1”
• Number of columns: 30
• BTU rating @ 50: 4078
• BTU rating @ 60: 5185
• Watt rating @ 50: 1195
• Watt rating @ 60: 1519
• Max working temperature: 95°C
• Max working pressure: 12 Bar
• Test pressure: 15.6 Bar
• Recommended application area: 15m²
• Inlets/outlets size: Standard 0.5" BSP Bore
• Distance from wall to centre of inlet: 85mm
• Valve-to-valve height: 220mm / 22cm / 8.7”
• Compatibility: All UK & EU Heating Systems
• Testing: BS EN 442 & ISO9001:2015 Standards
• CE certificate: CE & UKCA

Valves

• Colour: Silver Chrome
• Material: Powder Coated Brass
• Weight: 0.9kg
• TRV dimensions: 137mm H x 85mm W x 55mm D
• Lockshield dimensions: 87mm H x 75mm W x 34mm D
• Style: Angled
• Control style: Rotary Knob
• Type: Thermostatic
• Temperature range: 6-28 Degrees
• Maximum bar pressure: 10
• Maximum flow temperature: 100 Degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm
• Guarantee length: 10 Years

In the box

• 1 x Traditional 4 Column Radiator
• 4 x Secure Brackets
• 1 x Practical Fixing Kit
• 1 x Flexible Cleaning Brush
• 1 x Thermostatic Valve Set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
