Oxford Mudguards Components Pack Stays Mudguard Bridge and Fittings Bolts

These are Oxford Mudguard Components Pack designed for their 700C and 26” Mudguards. However they could be used on any mudguards with the same dimensions as a replacement set.

The following are avaliable:

 700c x 31mm wide mudguards  (MG01 MG19/26)

700c x 41mm wide mudguards  (MG02 MG15/08)

700c x 46mm wide mudguards  (MG03 MG36/38)

26” x 60mm wide mudguards  (MG04 MG24/33)

These packs contain:

For the 31mm:

- 4 Stays - Measuring 35. 5cm from the hole where the stays attach to the frame straight through the midpoint where the stay end

- One Mudguard Bridge which measures 9. 5cm in width

- Eight each of the clips to attach the stays to the frame

- 8 Bolts to attach the stays to the fixings (to the mudguard)

 For the 41mm, 46mm and 60mm:

- 4 Stays. Measuring 36cm from the hole where the stays attach to the frame straight through the midpoint where the stay ends

- One Mudguard Bridge which measures 9. 5cm in width

- Four each of the clips to attach the stays to the mudguard

- 8 Bolts to attach the stays to the fixings (to the mudguard)

The first picture is stock

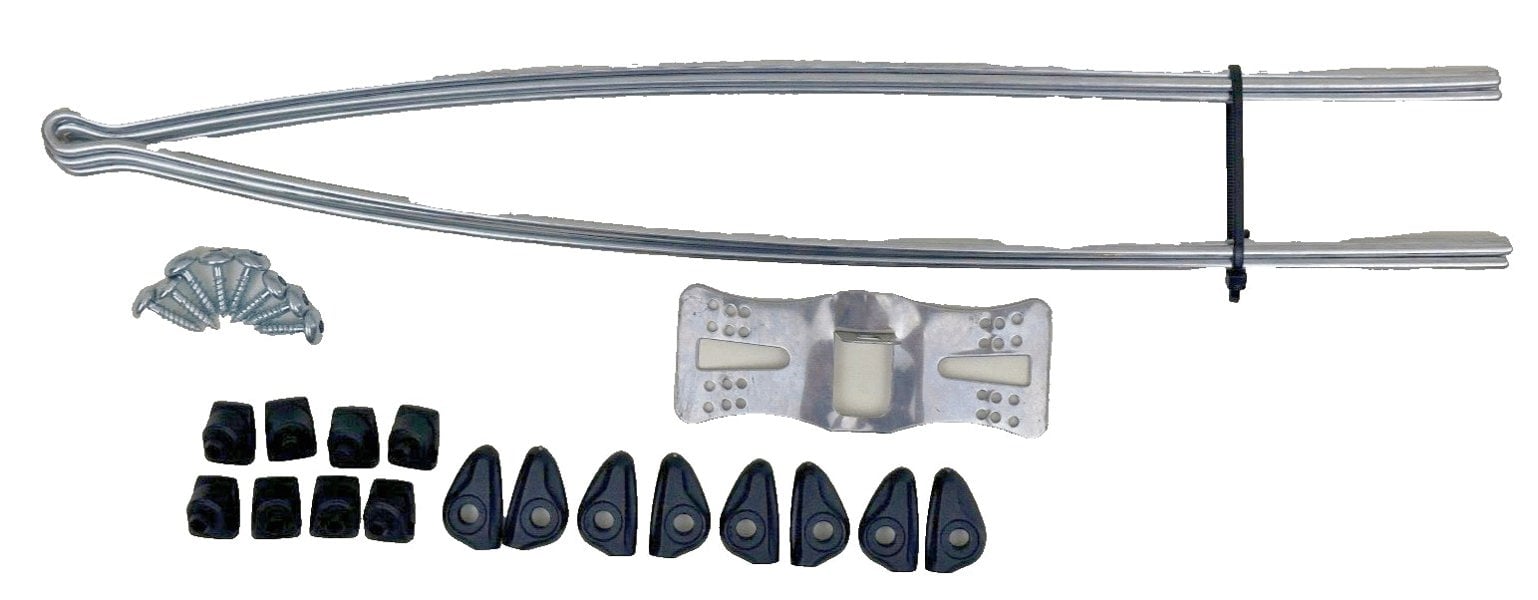

The second picture is of the pack broken out.
