PixMax Clam Heat Press 38 x 38cm

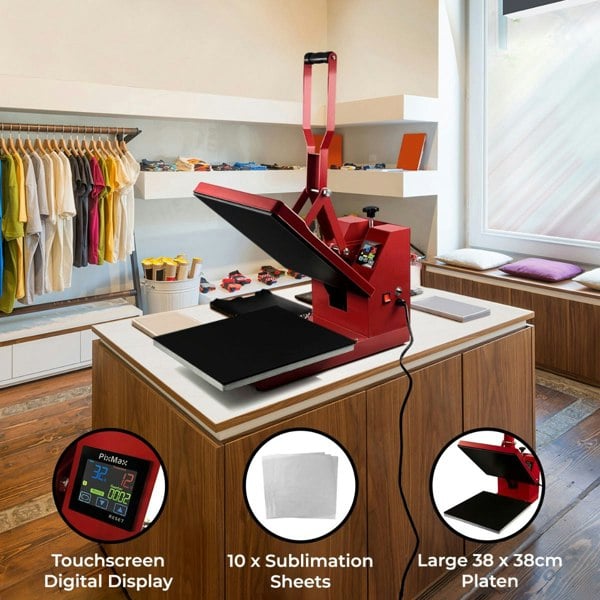

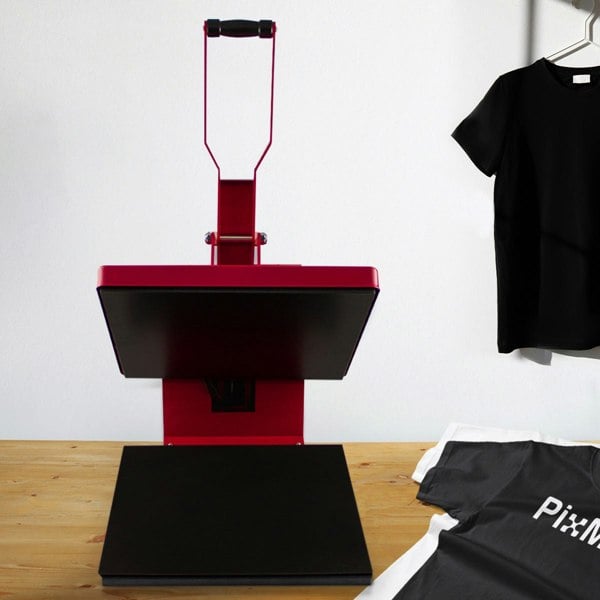

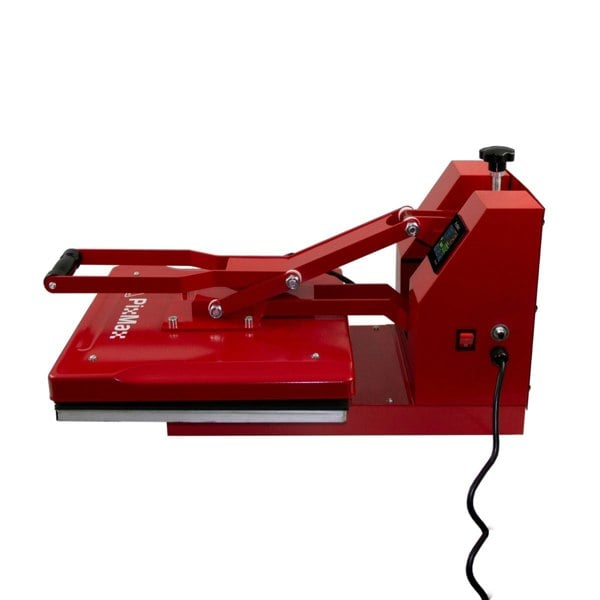

Designed for creative studios and home workspaces alike, the PixMax Clam Heat Press offers a generous 38 x 38cm platen for transferring your designs onto a wide range of flat-surfaced sublimation consumables. Suitable for use with sublimation ink and vinyl, it’s an easy way to personalise everyday items such as t-shirts, bags, phone cases, puzzle boards and mouse mats.

Operation is kept refreshingly straightforward, with time, temperature and pressure controlled via an accurate digital touchscreen display for consistent results. Temperature can be set between 0°C and 250°C, while the timer runs from 0 to 999 seconds and includes an alarm to signal when pressing is complete. A comfort-grip handle lowers the press, with pressure adjusted using the control knob.

The clam design opens wide to help you position items safely, while the 9mm silicone pad on the lower platen provides a level surface and helps keep items in place during transfer. Finished in red and made from powder coated steel, it’s built for heavy use in busy environments.

Key features

• 38 x 38cm platen for larger transfer areas
• Clam-style opening for easier positioning

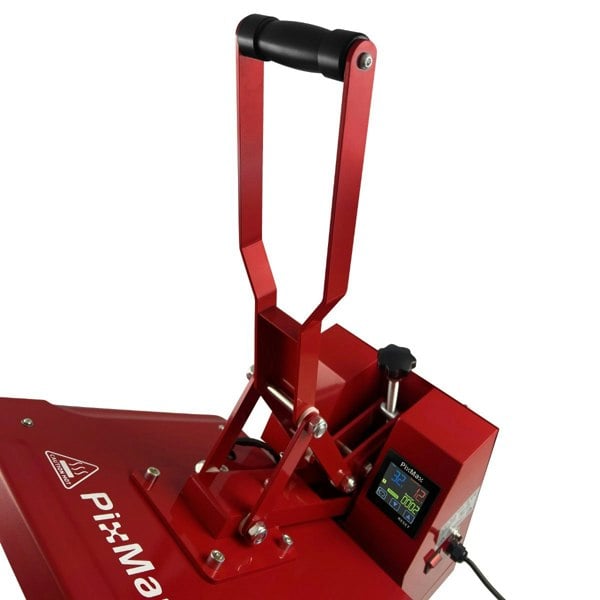

• Digital touchscreen display for monitoring and control
• Temperature adjustable from 0°C to 250°C
• Timer control from 0 to 999 seconds with end alarm
• Adjustable pressure control knob and comfort-grip handle
• 9mm silicone pad on the lower platen
• Material: powder coated steel

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.

Specifications:

• Colour: Red
• Material: Powder Coated Steel
• Weight: 22. 85kg
• Height: 390mm/ 39cm / 15. 4”
• Width: 680mm / 68cm / 26. 8”
• Depth: 395mm / 39. 5cm / 15. 6”
• Voltage: 220-240V
• Current: 7A
• Frequency: 50Hz
• Power: 1. 5kW
• Temperature Range: 0-250°C
• Pressing Time: 0-999 Seconds
• Platen Dimensions: 38 x 38cm
• Silicone Pad Thickness: 9mm

Box Contents:

• 1 x Powerful 38 x 38cm Clam Heat Press

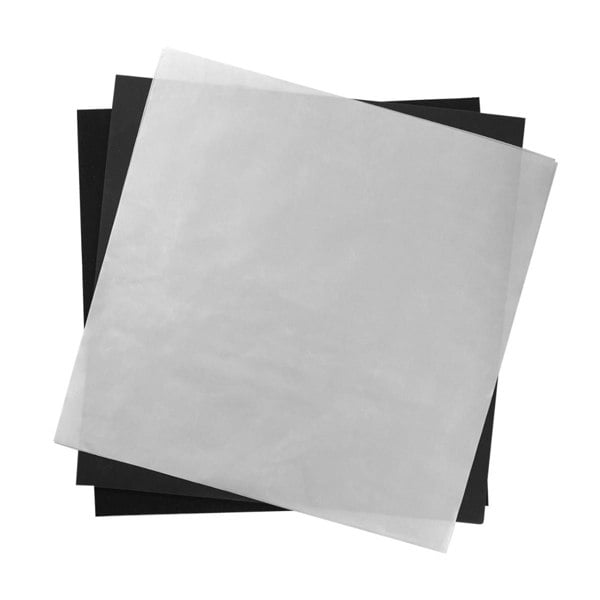

• 10 x High Quality Sublimation Sheets
