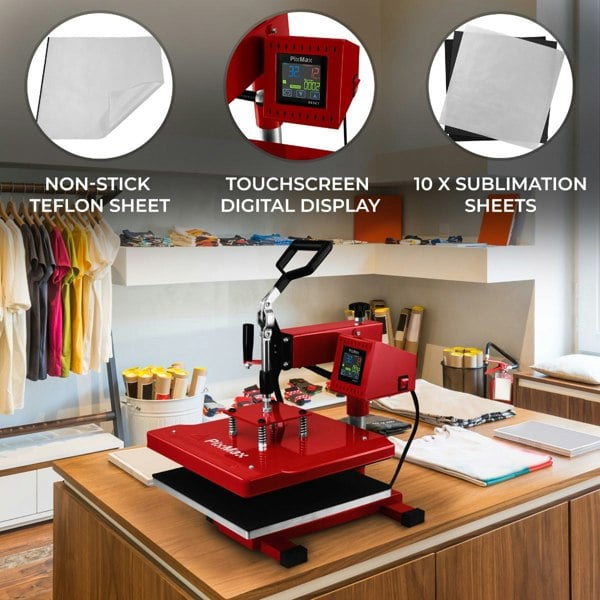

PixMax Swing Heat Press 38 x 38cm, PTFE Sheet & Sublimation Paper

From PixMax, this swing Heat Press is designed for creating consistent sublimation and vinyl transfers across a wide range of flat-surfaced consumables. With a 38 x 38cm platen and a swing-away design that opens up the working area, it offers a practical setup for positioning items such as t-shirts, bags, phone cases, puzzle boards and mouse mats.

Control is kept straightforward with adjustable time, temperature and pressure, all managed via a digital touchscreen display. Temperature can be set from 0–250°C, while the timer runs from 0–999 seconds and includes an alarm to signal when pressing is complete. A comfort grip handle lowers the press, and pressure can be adjusted using the knob. Even heat distribution across the alloy heat plate supports reliable results, while the 9mm silicone pad on the lower platen provides a level, non-slip surface to help keep items in place during transfer.

Key features

• Swing design for a wide-open working area
• Digital touchscreen display for monitoring and control
• Adjustable timer with end-of-press alarm
• Adjustable pressure via control knob
• Even heat distribution across the alloy heat plate
• Red, powder coated steel construction

Specifications

• Voltage: 220-240V
• Current: 7A
• Frequency: 50Hz
• Power: 1. 5kW
• Circuit breaker: 32A
• Temperature range: 0-250°C
• Pressing time: 0-999 seconds
• Weight: 23. 8kg
• Material: Powder coated steel
• Colour: Red
• Silicone pad thickness: 9mm
• PTFE sheet dimensions: 48 x 58cm

Sizing

• Platen dimensions: 38 x 38cm
• Height: 490mm / 49cm / 19. 3”
• Width: 400mm / 40cm / 15. 7”
• Depth: 555mm / 55. 5cm / 21. 9”

What's included

• 1 x Powerful 38 x 38cm Swing Heat Press
• 1 x Premium grade PTFE sheet
• 10 x High quality sublimation sheets

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
