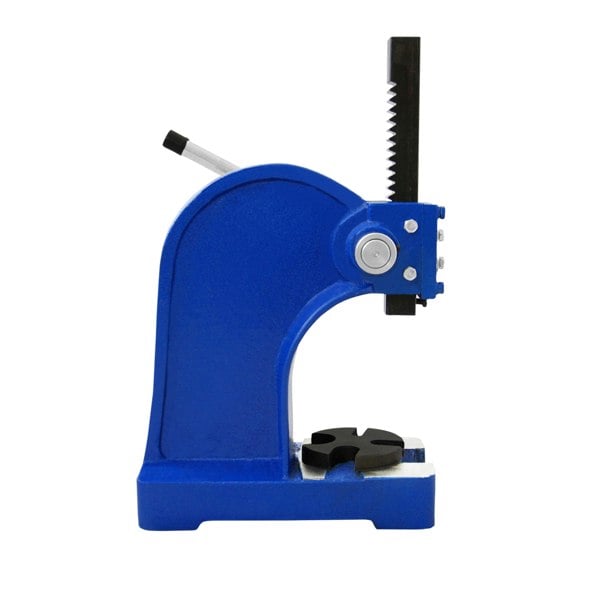

T-Mech Arbor Press

Built for workshop pressing and assembly tasks, the T-Mech Arbor Press is a hand-operated ratchet leverage machine with a 1000KG press capacity. It is suitable for installing and removing bearings, as well as staking, punching and flattening, and can also be used for small repair and assembly jobs.

A cast steel frame provides a sturdy and stable structure, while the mounting holes allow straightforward fitting before use. This is a practical choice for garages, workshops and bench-based repair setups where controlled manual pressing is required.

Key features

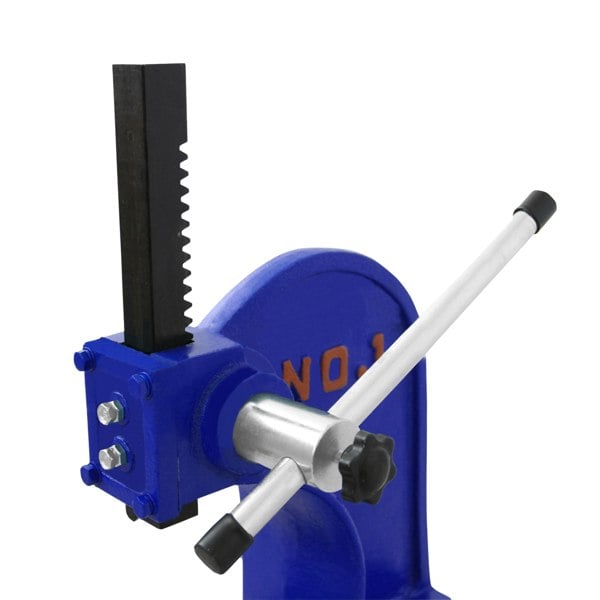

• Hand-operated ratchet leverage arbor press
• Cast steel frame
• Press capacity: 1000KG
• Suitable for installing and removing bearings
• Also used for staking, punching and flattening bearings
• Suitable for small repair and assembly jobs

Specifications

• Frame material: Cast Steel
• Press capacity: 1000KG
• Throat depth: 140 mm
• Base plate dimensions: 90 mm
• Weight: 19. 5 kg

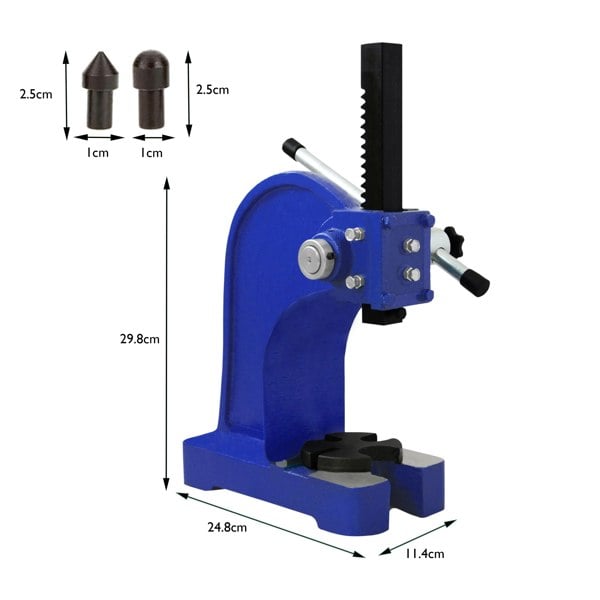

Sizing

• Ram dimensions: 25 x 25 x 243 mm
• Height: 29. 8 cm / 289 mm / 11. 73”
• Width: 24. 8 cm / 248 mm / 9. 76”
• Depth: 11. 4 cm / 114 mm / 4. 48”
• Tip 1 - tipped dimensions: 25 mm / 0. 98”
• Tip 1 width: 1. 2 cm / 12 mm / 0. 47”
• Tip 1 depth: 1 cm / 10 mm / 0. 39”
• Tip 2 - domed dimensions: 2. 5 cm / 25 mm / 0. 98”
• Tip 2 width: 1. 2 cm / 12 mm / 0. 47”
• Tip 2 depth: 1 cm / 10 mm / 0. 39”

What's included

• 1 x Arbor Press

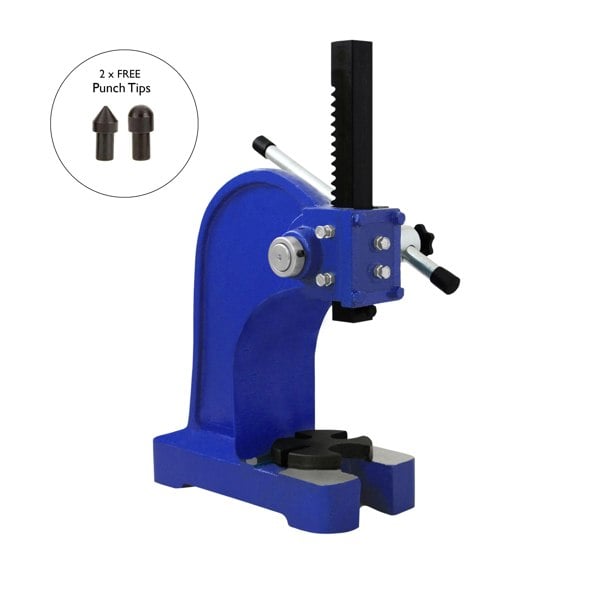

• 2 x Punch Tips
• 1 x Instruction Manual
