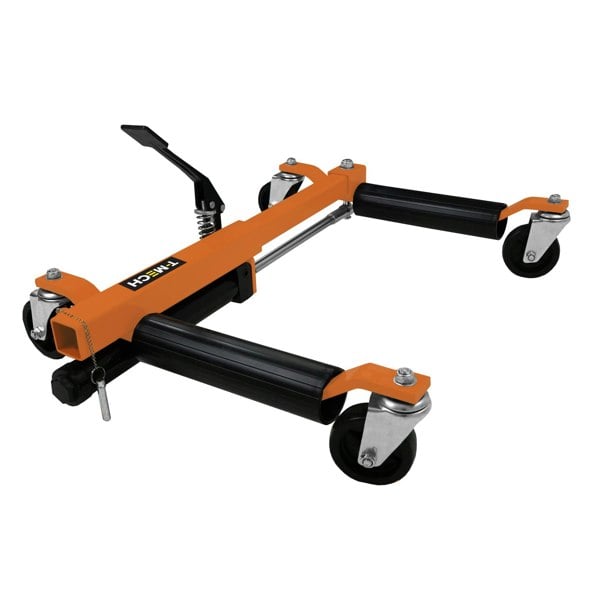

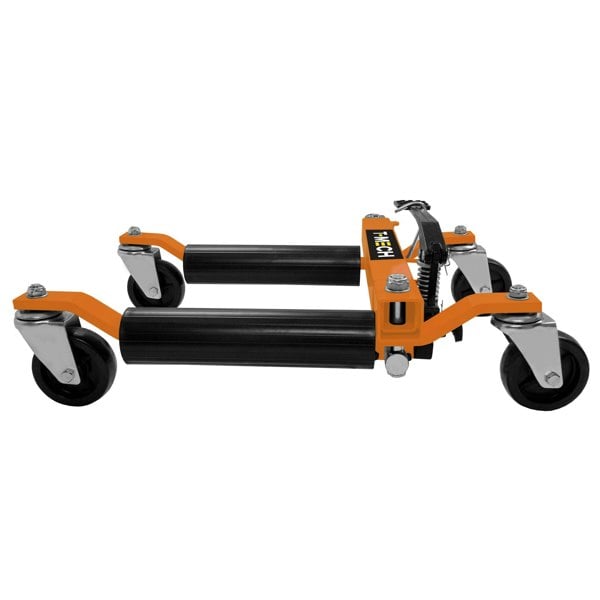

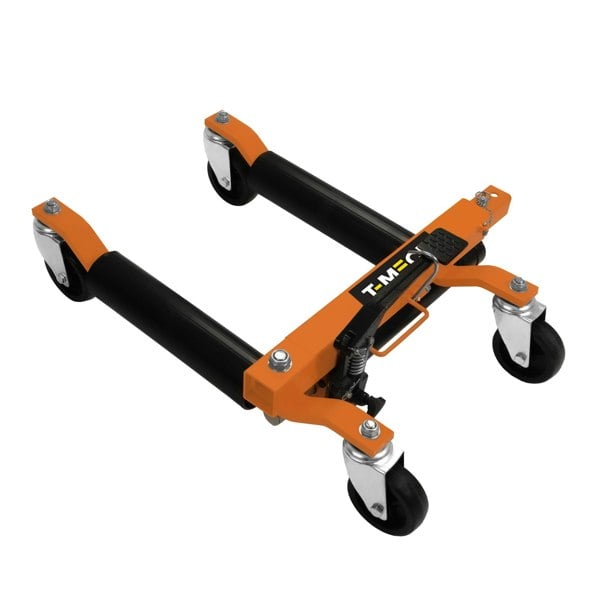

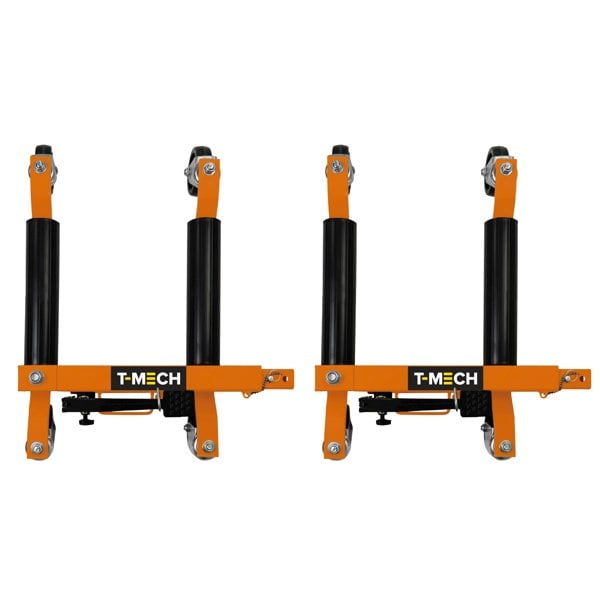

T-mech Hydraulic Positioning Skates Pair

From T-mech, this pair of hydraulic positioning skates is designed to help you lift and manoeuvre heavy vehicles or equipment with greater control in garages, workshops and industrial settings. A foot-operated hydraulic system keeps operation straightforward, allowing the load to be raised smoothly for repositioning and precise adjustments.

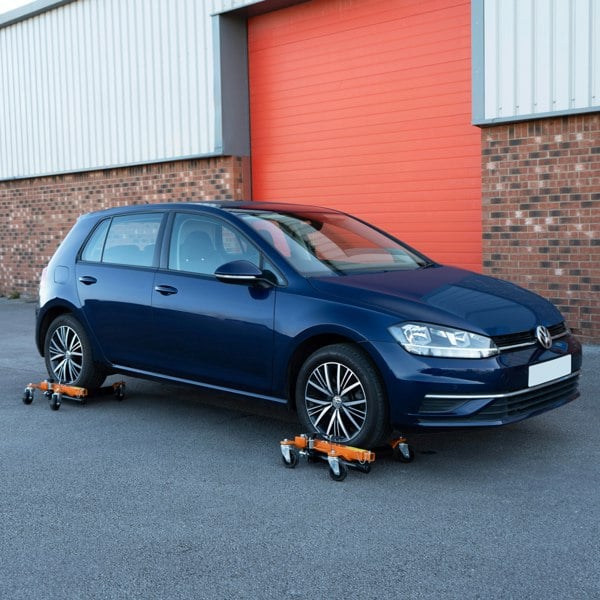

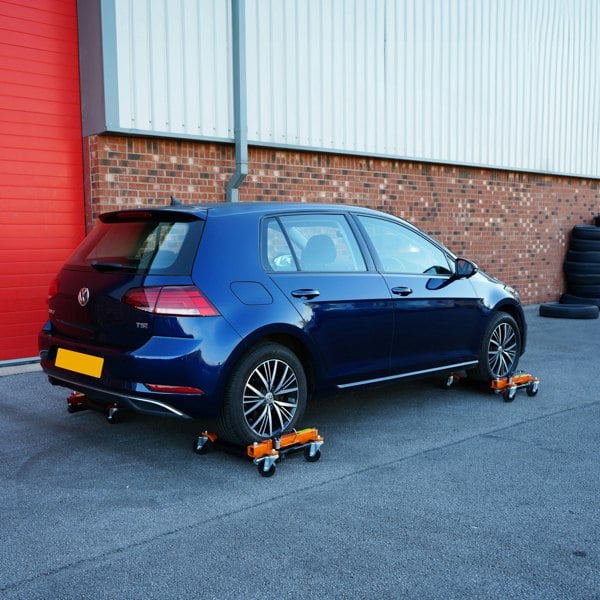

Each skate is rated to 680kg (1500 lbs) and lifts up to 12", while four wheels per skate support smooth, omnidirectional movement. For secure handling, the steel skates feature a pin on a chain, and a quick-release screw helps make lowering fast and controlled. Used as a pair, the skates allow a vehicle to swivel up to 180 degrees; with four skates, a full 360-degree rotation is possible for manoeuvring in tighter spaces.

Key features

• Pair of 2 hydraulic positioning skates
• 680kg (1500 lbs) weight capacity per skate

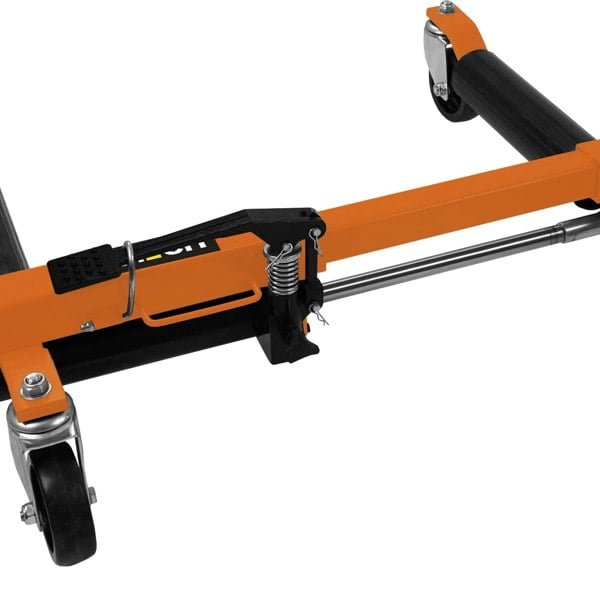

• Foot-operated hydraulic lifting system
• Lifts up to 12"

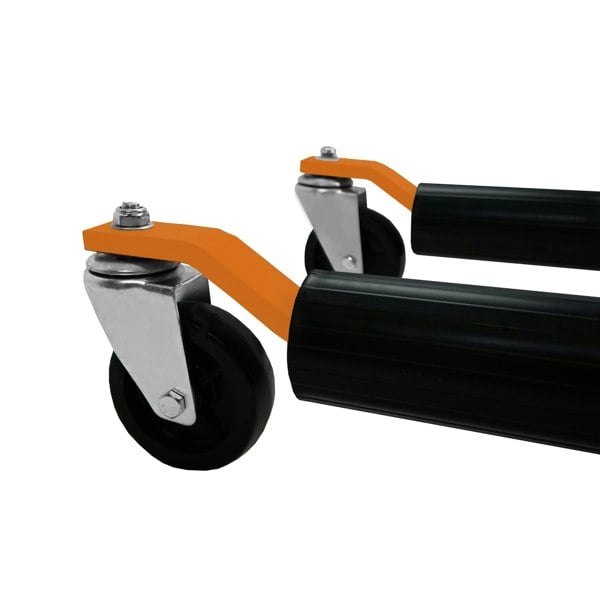

• Four 3 ¾" wheels per skate for omnidirectional movement
• Supports vehicles with wheels up to 10" wide

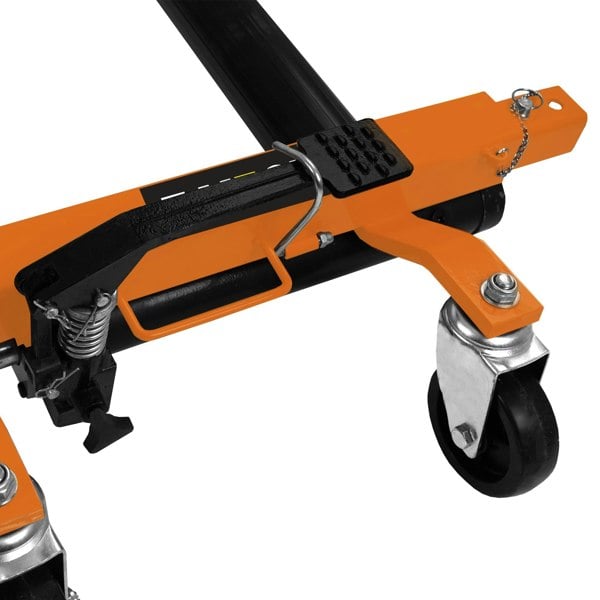

• Pin on a chain and quick-release screw for secure handling and controlled lowering
• Model: T-mech Hydraulic Positioning Skates Pair

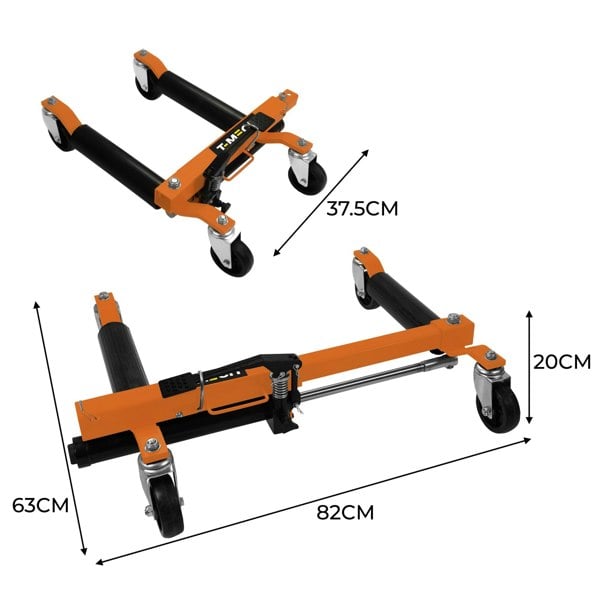

Sizing

• Closed width: 37.5cm
• Width between rollers (opened): 58.2cm
• Total expanded width: 82cm

Specifications:

• Colour: Orange
• Weight: 16. 9kg Each / 33. 8kg Pair
• Frame Material: Q235 Steel
• Roller Material: High Density Polypropylene (HDPP)
• Height: 145mm / 14. 5cm / 5. 7”
• Closed Width: 630mm / 63cm / 24. 8”
• Expanded Width: 820mm / 82cm / 32. 3”
• Depth: 375mm / 37. 5cm / 14. 8”
• Roller Diameter: 70mm / 7cm / 2. 8”
• Roller Length: 293mm / 29. 3cm / 11. 5”
• Wheel Size: 95mm / 9. 5cm / 3 ¾"
• Max Lifting Height: 305mm / 30. 5cm / 12”
• Weight Capacity: 680kg / 1500lbs
• 2 Skates Swivel: 180°
• 4 Skates Swivel: 360°

Box Contents:

• 2 x Hydraulic Positioning Skates
