T-Mech Powder Coating Curing Oven

From T-Mech, this powder coating curing oven is designed for the curing stage of powder-coated items. After cleaning and spraying, place your work inside the oven so the consistent heat can react with the powder particles to help achieve an even, coated finish. Curing also supports a tougher, more durable result, making it a practical choice for regular workshop use.

Electric operation is described as safer than many non-electric ovens, while the interior layout is built for efficient throughput. With four shelves and two rails per shelf, there is generous space for hanging powder-coated metalwork to cure, helping to save time and running costs. Suitable for a new powder coating business or for expanding an existing set-up, it can accommodate a wide range of items, including small to medium appliances, window and door frame extrusions, outdoor garden tools, bicycle and vehicle frames and parts, hand tools, anti-corrosion items such as valves, fittings and pipes, plus office furniture, cabinets and lamp housing.

Key features

• 7.2KW curing oven

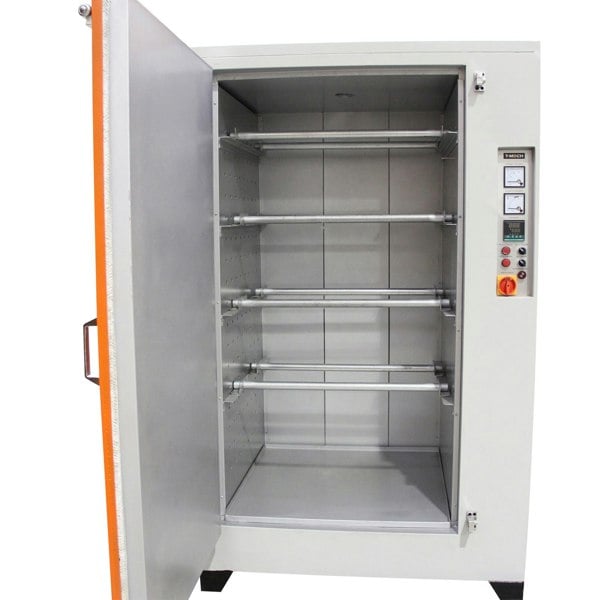

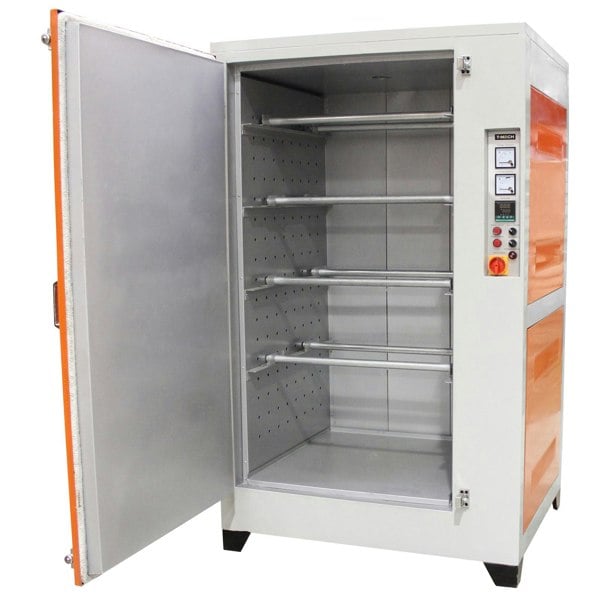

• Four shelves with two rails per shelf for hanging work

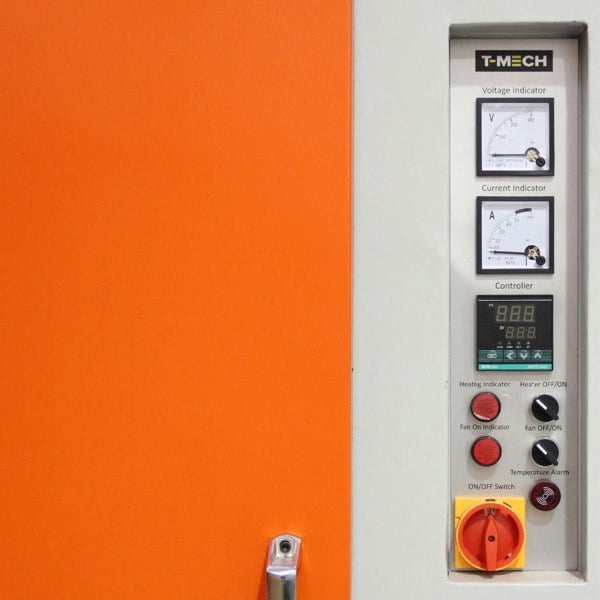

• New and improved control panel for quick, straightforward curing
• Bolt lock system for added safety
• Can and should be wired to a 32AMP plug
• Monstrous Orange design

Specifications

• Voltage: 230V / 50Hz
• Fan power: 60W x 2
• Temperature range: 0-250 C
• Air speed: 2800rpm
• Power: 7.2KW
• Temperature stability: +/-5
• Insulated plate: 7-8cm
• Insulation: High temperature silicon cotton
• Material: Steel, Iron, Plastic

Sizing

• Dimensions: 199cm (H) x 121.5cm (W) x 101.8cm (D)
• Internal dimensions: 160cm (H) 84.5cm (W) x 84.5cm (D)

Rackhams Reference : WBNQ7VWDMW
