T-Mech Portable Silent Diesel Generator Three Phase 400V

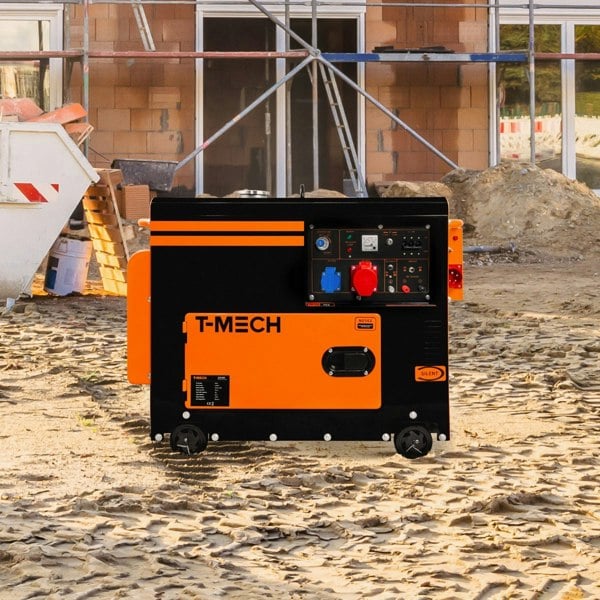

Designed for dependable backup and portable power, this silent diesel Generator from T-MECH is built to support a wide range of domestic, construction and industrial settings. A closed-frame design helps keep noise to a minimum, rated at 72dB at 7m, while the black finish with orange detailing gives it a clean, purposeful look.

For added reassurance during outages, the built-in ATS (automatic transfer switch) detects a power cut and restores power to connected electrical items, then monitors the mains supply and switches the generator off once power returns. An electric key start also allows manual starting and stopping when required. To help protect the engine during use, a low-level oil warning light alerts you when more oil is needed, and the unit will automatically switch off if oil pressure becomes too low. AVR (automatic voltage regulator) control helps monitor output and protect against voltage fluctuations.

Key features

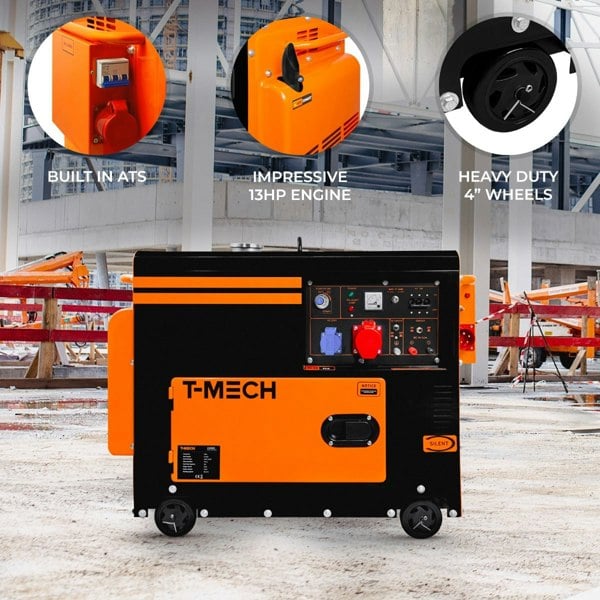

• Built-in ATS (automatic transfer switch) for automatic changeover and shutdown when mains power returns
• Electric key start for manual control
• Closed-frame design for reduced noise output
• AVR (automatic voltage regulator) control system
• Low-level oil warning light with automatic shut-off protection
• 20L fuel tank with up to 16 1/2 hours running time at 50% load

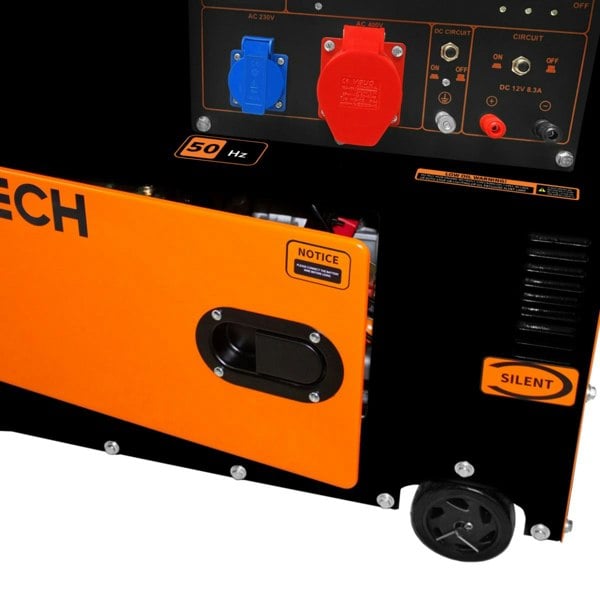

• Outputs: 1 x 16A 400V AC, 1 x 16A 230V AC and 1 x 12A DC
• Model: Portable Silent Diesel Generator Three Phase 400V

Specifications

• Colour: Black and orange
• Material: Powder coated steel
• Weight: 155.1kg
• Engine output: 9kW / 13HP
• Max engine output: 6.5kVA
• Generator rated output: 6000W
• Generator max output: 6500W
• Phase: Three
• Starting system: Electric
• Voltage: 230V / 400V
• Frequency: 50Hz
• RPM: 3000
• Noise level: 72dB at 7m

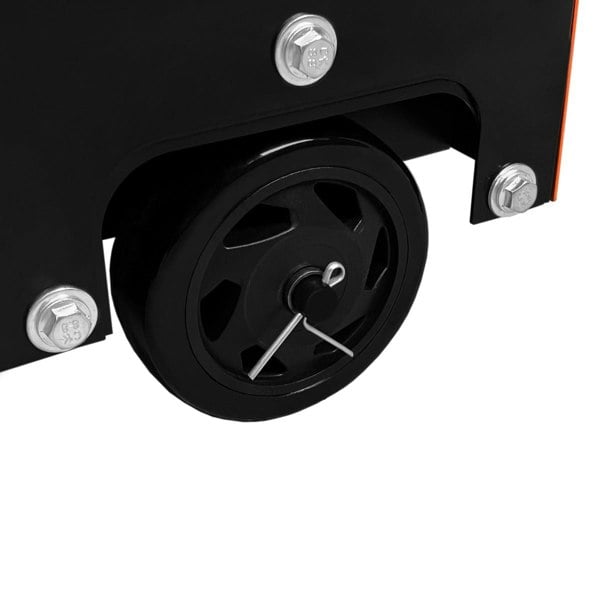

• Wheels: 4 x 4”
• Certification: CE and UKCA

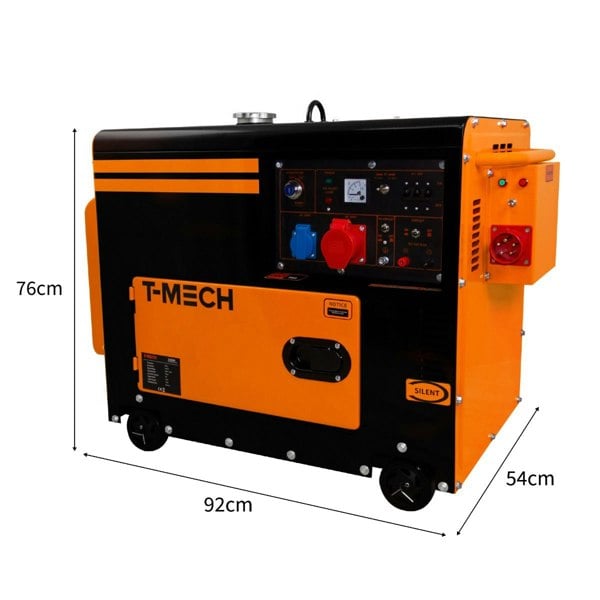

Sizing

• 762mm H / 76.2cm H / 30” H
• 920mm W / 92cm W / 36.2” W
• 535mm D / 53.5cm D / 21.1” D

What's included

• 1 x Powerful diesel generator

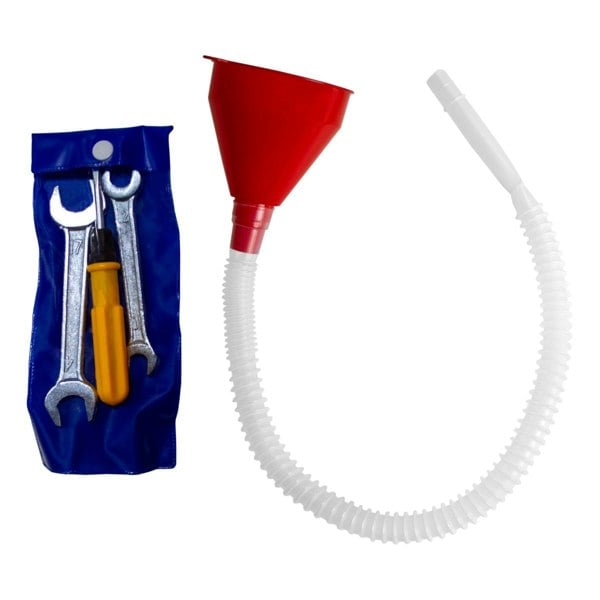

• 1 x Practical tool kit
• 1 x Handy fuel funnel
• 2 x Starter keys
