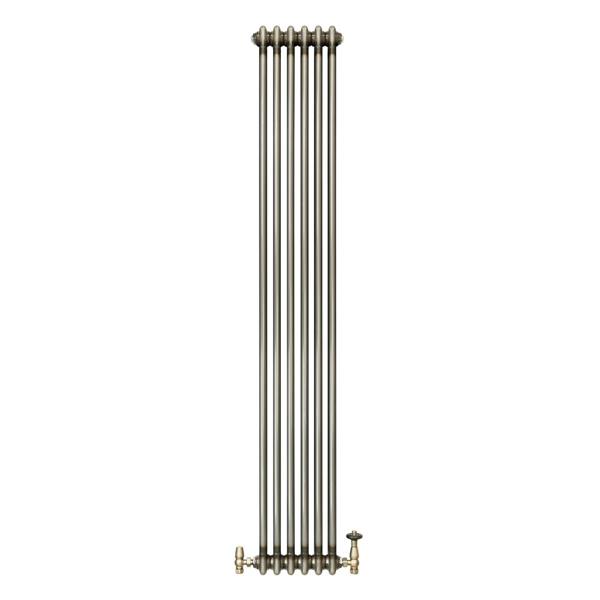

Traditional 2 Column Radiator & Valves – 1800mm x 290mm - Raw Metal

From MonsterShop, this traditional-style vertical radiator brings an industrial raw metal finish into the home while delivering dependable everyday heating. Its tall, slim profile makes it well suited to spaces where wall width is limited, and the lacquer-coated raw metal look gives it a distinctive presence that works comfortably in both traditional and more contemporary interiors.

Made from 1.5mm carbon steel, the radiator features steel tubes measuring 25mm and is designed for reliable performance across all UK and EU heating systems. A thermostatic angled valve set is supplied for straightforward temperature adjustment, with a rotary knob and an adjustable range from 6–28C. The included lockshield valve helps regulate water flow, while the supplied cleaning brush makes ongoing maintenance simpler.

Key features

• Raw metal finish with lacquer coating
• 1.5mm carbon steel construction
• 3654 BTU heat output at 60
• Thermostatic angled valve set with rotary control
• Adjustable temperature range from 6–28C
• Standard 0.5" BSP inlet and outlet size
• CE and UKCA certified
• 15-year radiator guarantee

Specifications

• Radiator weight: 16.1kg
• Number of columns: 6
• BTU rating at 50: 2910
• Watt rating at 50: 853
• Watt rating at 60: 1071
• Maximum working temperature: 95C
• Maximum working pressure: 10 bar
• Test pressure: 13 bar
• Recommended application area: 5.7m²
• Heating surface area: 1.72m²
• Distance from wall to centre of inlet: 58mm
• Valve-to-valve height: 1724mm
• Tested to BS EN 442 and ISO9001:2015 standards
• Valve material: Powder-coated brass
• Valve weight: 0.9kg
• Valve type: Thermostatic
• Maximum valve pressure: 10 bar
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Valve connection: 1/2" x 15mm
• Valve guarantee: 10 years

Sizing

• 1800mm H x 290mm W
• Radiator depth: 68mm
• Depth with bracket: 92mm
• Gap between tubes: 45mm
• Individual tube size: 25mm
• TRV dimensions: 137mm H x 85mm W x 55mm D
• Lockshield dimensions: 87mm H x 75mm W x 34mm D

What's included

• 1 x traditional 2 column radiator
• 4 x secure brackets
• 1 x fixing kit
• 1 x flexible cleaning brush
• 1 x thermostatic valve set
