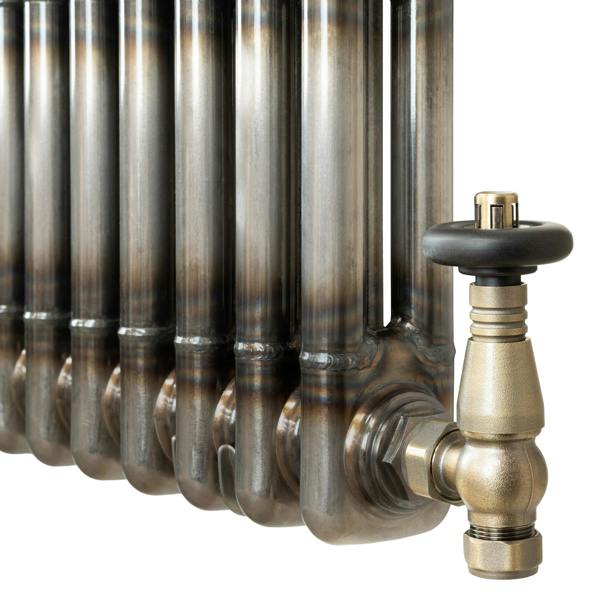

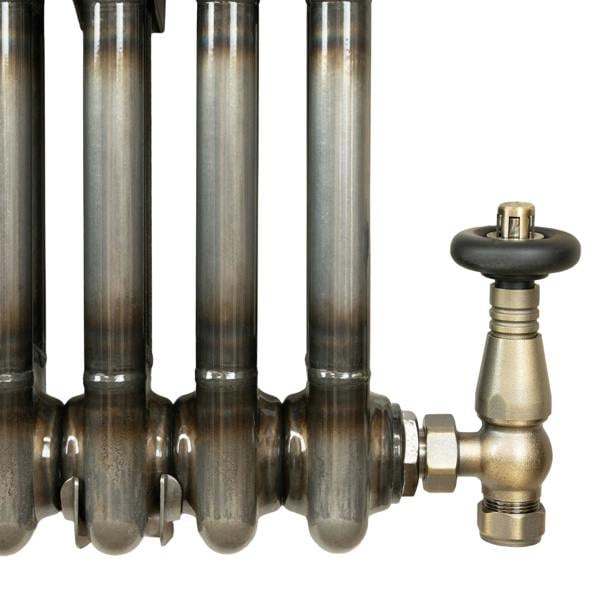

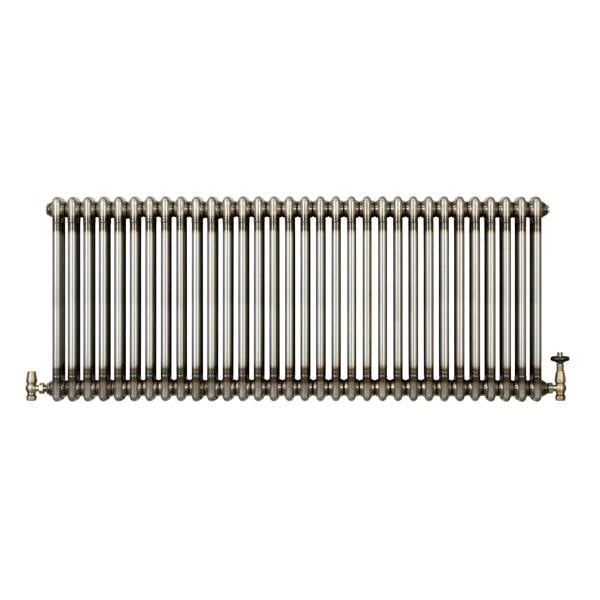

Traditional 2 Column Radiator & Valves - 600 x 1460mm - Raw Metal

From MonsterShop, this traditional 2 column horizontal radiator and valve set brings an industrial raw metal finish to everyday heating. Designed to stand out as well as perform reliably, it combines a bold, characterful look with practical compatibility for a wide range of interiors, from more classic schemes to contemporary spaces.

Made from 1.5mm carbon steel with a lacquer coating, the radiator features 32 columns and 25mm steel tubes for efficient heat output. It is supplied with an angled thermostatic valve set in a matching raw metal finish, allowing precise temperature adjustment through a rotary knob with a 6–28C range. A lockshield valve is also included to help regulate water flow, while the standard 0.5" BSP inlet and outlet offer straightforward compatibility with all UK and EU heating systems.

Key features

• Raw metal finish with an industrial look
• 2 column horizontal design with 32 columns
• 1.5mm carbon steel construction
• 6943 BTU heat output at 60
• Angled thermostatic valve set with rotary knob control
• Adjustable temperature range from 6–28C
• BS EN 442, ISO9001:2015, CE and UKCA certified
• 15-year radiator guarantee and 10-year valve guarantee

Specifications

• Material: 1.5mm carbon steel radiator
• Finish: Lacquer coating
• Material: Powder coated brass valves
• Watt rating at 50: 1620
• Watt rating at 60: 2035
• BTU rating at 50: 5526
• Maximum working temperature: 95C
• Maximum working pressure: 10 bar
• Test pressure: 13 bar
• Inlets/outlets size: Standard 0.5" BSP bore
• Compatibility: All UK and EU heating systems
• Valve connection: 1/2" x 15mm
• Valve maximum bar pressure: 10
• Valve maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m

Sizing

• 600mm H x 1460mm W
• Radiator depth: 68mm
• Depth with bracket: 92mm
• Gap between tubes: 45mm
• Individual tube size: 25mm
• Distance from wall to centre of inlet: 58mm
• Valve-to-valve height: 524mm
• TRV dimensions: 137mm H x 85mm W x 55mm D
• Lockshield dimensions: 87mm H x 75mm W x 34mm D

What's included

• 1 x traditional 2 column radiator
• 4 x secure brackets
• 1 x fixing kit
• 1 x flexible cleaning brush
• 1 x thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
