Traditional 3 Column Radiator & Valves – 1500mm x 560mm - Raw Metal

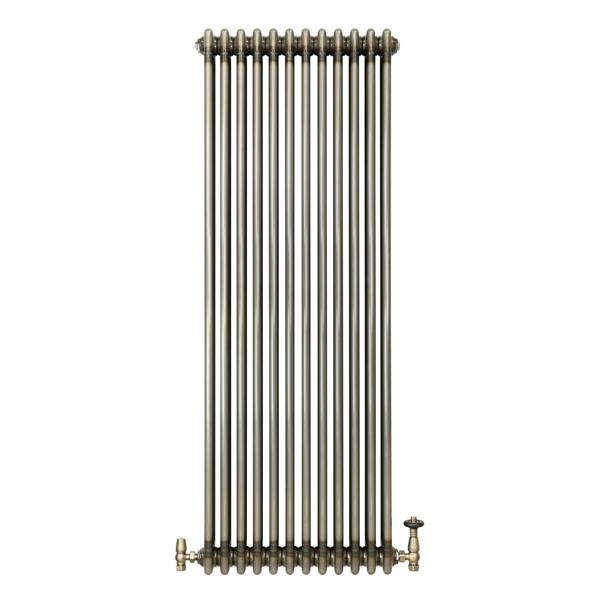

From MonsterShop, this traditional 3 column vertical radiator and valve set brings an industrial raw metal finish to a practical heating solution. Designed to stand out as much as it performs, it combines a bold, characterful look with a space-conscious vertical format that suits a range of interiors.

Made from 1.5mm carbon steel with a lacquer coating, the radiator features 12 columns and 25mm steel tubes, delivering heat output of up to 9144 BTU at 60. Supplied with an angled thermostatic valve set in a matching raw metal finish, it allows straightforward temperature adjustment through a rotary knob with a 6–28 degree range. A lockshield valve is also included to help regulate water flow. With fixtures and fittings supplied, along with a flexible cleaning brush, it is equipped for installation and ongoing care.

Key features

• Raw metal finish with lacquer coating
• Made from 1.5mm carbon steel
• 12-column vertical design
• 25mm steel tubes
• Heat output up to 9144 BTU at 60
• Angled thermostatic valve set with rotary knob control
• Temperature range from 6–28 degrees
• 15-year radiator guarantee

Specifications

• Valve material: Powder coated brass
• Maximum working temperature: 95C
• Maximum working pressure: 10 bar
• Test pressure: 13 bar
• Inlets/outlets size: Standard 0.5" BSP bore
• Connection: 1/2" x 15mm
• Nominal flow rate: 2.8L/m
• Maximum flow temperature: 100 degrees
• Testing: BS EN 442 and ISO9001:2015 standards
• Certification: CE and UKCA
• Compatibility: All UK and EU heating systems
• Valve guarantee: 10 years

Sizing

• Radiator: 1500mm H x 560mm W
• Radiator depth: 100mm
• Depth with bracket: 110mm
• Gap between tubes: 45mm
• Individual tube size: 25mm
• Distance from wall to centre of inlet: 60mm
• Valve-to-valve height: 1424mm
• TRV: 137mm H x 85mm W x 55mm D
• Lockshield: 87mm H x 75mm W x 34mm D

What's included

• 1 x traditional 3 column radiator
• 4 x secure brackets
• 1 x fixing kit
• 1 x flexible cleaning brush
• 1 x thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.

Rackhams Reference : FHPHRSCB8B
