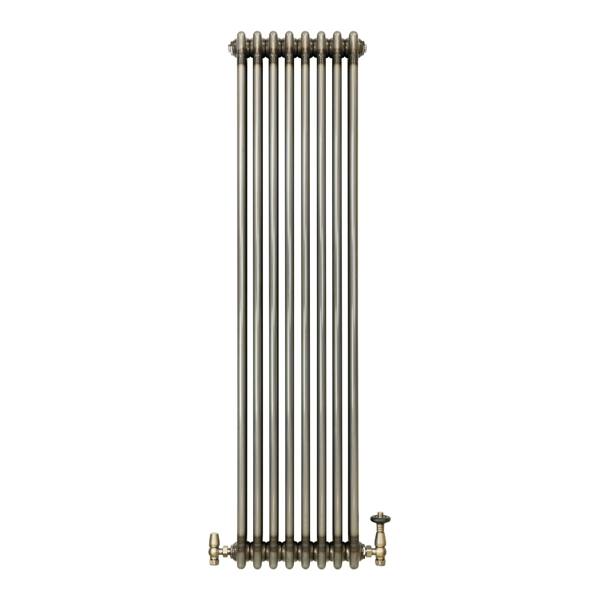

Traditional 3 Column Radiator & Valves - 1500mm x 380mm - Raw Metal

From MonsterShop, this traditional 3 column vertical radiator and valve set brings an industrial raw metal finish to a practical heating solution. Designed to make an impact without overwhelming the room, it suits a range of interiors and offers a tall, space-conscious format that works well in narrower wall areas.

Made from 1.5mm carbon steel with a lacquer coating, the radiator combines a distinctive raw metal look with everyday durability. Its steel tubes measure 25mm, while the angled thermostatic valve set allows straightforward temperature adjustment through a rotary knob. With an adjustable range from 6–28C and an integrated lockshield valve to help regulate water flow, it is designed for reliable use with your existing heating system. Fixtures and fittings are included, along with a flexible cleaning brush for easier upkeep.

Key features

• 1.5mm carbon steel construction with lacquer coating
• Raw metal finish
• 6097 BTU heat output at 60
• Angled thermostatic valve set with rotary knob control
• Adjustable temperature range from 6–28C
• CE and UKCA certified
• BS EN 442 and ISO9001:2015 tested
• 15-year radiator guarantee

Specifications

• Weight: 26.3kg
• Number of columns: 8
• BTU rating at 50: 4854
• Watt rating at 50: 1423
• Watt rating at 60: 1787
• Maximum working temperature: 95C
• Maximum working pressure: 10 bar
• Test pressure: 13 bar
• Recommended application area: 9.5m²
• Heating surface area: 2.84m²
• Inlets/outlets: Standard 0.5" BSP bore
• Compatibility: All UK and EU heating systems
• Valve material: Powder coated brass
• Valve weight: 0.9kg
• Valve type: Thermostatic
• Maximum bar pressure: 10
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm
• Valve guarantee: 10 years

Sizing

• 1500mm H x 380mm W
• Radiator depth: 100mm
• Depth with bracket: 110mm
• Gap between tubes: 45mm
• Individual tube size: 25mm
• Distance from wall to centre of inlet: 60mm
• Valve-to-valve height: 1424mm
• TRV dimensions: 137mm H x 85mm W x 55mm D
• Lockshield dimensions: 87mm H x 75mm W x 34mm D

What's included

• 1 x traditional 3 column radiator
• 4 x secure brackets
• 1 x fixing kit
• 1 x flexible cleaning brush
• 1 x thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.

Rackhams Reference : LC495GMKY4
