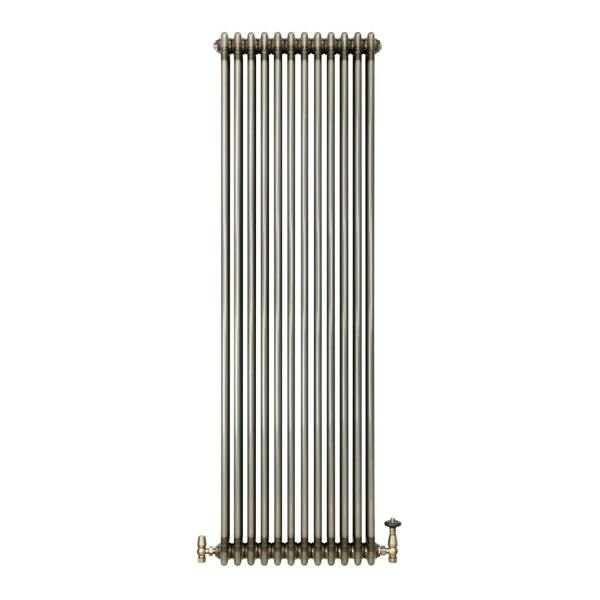

Traditional 3 Column Radiator & Valves - 1800 x 560mm - Raw Metal

From MonsterShop, this traditional 3 column radiator and valve set brings together an industrial raw metal finish with a tall, space-conscious vertical design. Made from 1.5mm carbon steel and finished with a lacquer coating, it is designed to add character to a room while delivering dependable heat output for everyday home heating.

At 1800mm high and 560mm wide, the radiator suits a range of interior spaces and works with all UK heating systems. Its angled thermostatic valve set allows for straightforward temperature adjustment through a rotary knob, with a 6–28 degrees range for more precise control. A lockshield valve is also included to help regulate water flow, while the supplied cleaning brush makes ongoing maintenance simpler.

Key features

• 10912 BTU heat output
• Raw metal finish with lacquer coating
• 12-column design with 25mm steel tubes
• Standard 0.5" BSP inlet and outlet
• Compatible with all UK heating systems
• BS EN 442 and ISO9001:2015 tested
• CE and UKCA certified
• 15-year radiator guarantee and 10-year valve guarantee

Specifications

• Material: 1.5mm carbon steel radiator
• Material: Powder-coated brass valves
• Maximum working temperature: 95C
• Maximum working pressure: 10 Bar
• Test pressure: 13 Bar
• BTU rating @ 50: 8687
• BTU rating @ 60: 10912
• Watt rating @ 50: 2546
• Watt rating @ 60: 3198
• Recommended application area: 17 m²
• Heating surface area: 5.11m²
• Valve style: Angled thermostatic
• Control style: Rotary knob
• Valve temperature range: 6-28 Degrees
• Valve maximum bar pressure: 10
• Valve maximum flow temperature: 100 Degrees
• Nominal flow rate: 2.8L/m
• Valve connection: 1/2" x 15mm

Sizing

• Radiator: 1800mm H x 560mm W
• Radiator depth: 100mm
• Depth with bracket: 110mm
• Gap between tubes: 45mm
• Individual tube size: 25mm
• Distance from wall to centre of inlet: 60mm
• Valve-to-valve height: 1724mm
• TRV: 137mm H x 85mm W x 55mm D
• Lockshield: 87mm H x 75mm W x 34mm D

What's included

• 1 x traditional 3 column radiator
• 4 x secure brackets
• 1 x fixing kit
• 1 x flexible cleaning brush
• 1 x thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
