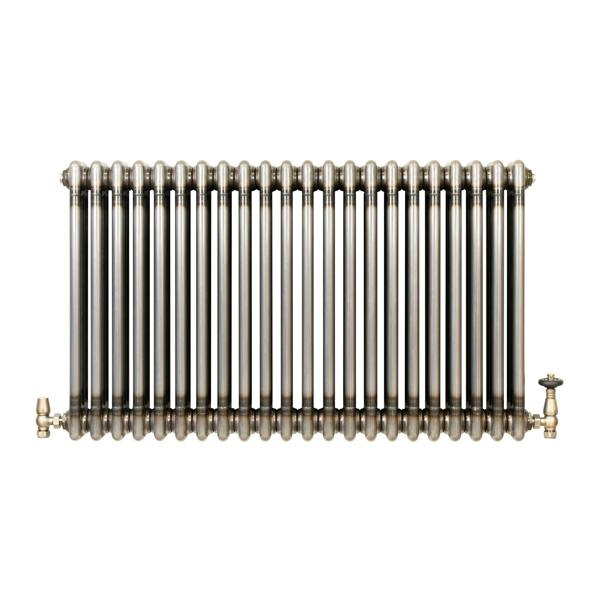

Traditional 3 Column Radiator & Valves – 600mm x 1010mm - Raw Metal

From MonsterShop, this traditional 3 column horizontal radiator brings an industrial raw metal finish into the home while delivering dependable everyday heating. Designed to stand out as much as it performs, it combines a bold, characterful look with a practical format suited to a range of interior spaces.

Made from 1.5mm carbon steel with a lacquer coating, the radiator features 22 columns and 25mm steel tubes for efficient heat output. It is supplied with an angled thermostatic valve set in a matching raw metal finish, allowing straightforward temperature adjustment via a rotary knob. The included lockshield valve helps regulate water flow, while the standard 0.5" BSP inlet and outlet offer compatibility with heating systems. A flexible cleaning brush is also included to help maintain the finish over time.

Key features

• Raw metal finish with lacquer coating
• Made from 1.5mm carbon steel
• 22-column design with 25mm tubes
• 7053 BTU heat output at 60
• Angled thermostatic valve set with rotary knob control
• Adjustable temperature range from 6–28C
• CE and UKCA certified
• 15-year radiator guarantee

Specifications

• Weight: 30kg
• BTU rating at 50: 5616
• Watt rating at 50: 1646
• Watt rating at 60: 2067
• Maximum working temperature: 95C
• Maximum working pressure: 10 bar
• Test pressure: 13 bar
• Recommended application area: 11m²
• Heating surface area: 3.15m²
• Inlet and outlet size: Standard 0.5" BSP bore
• Compatibility: All heating systems
• Testing: BS EN 442 and ISO9001:2015 standards
• Valve material: Powder coated brass
• Valve weight: 0.9kg
• Valve type: Thermostatic
• Maximum valve pressure: 10 bar
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Valve connection: 1/2" x 15mm
• Valve guarantee: 10 years

Sizing

• Radiator: 600mm H x 1010mm W
• Radiator depth: 100mm
• Depth with bracket: 110mm
• Gap between tubes: 45mm
• Distance from wall to centre of inlet: 60mm
• Valve-to-valve height: 524mm
• TRV: 137mm H x 85mm W x 55mm D
• Lockshield: 87mm H x 75mm W x 34mm D

What's included

• 1 x Traditional 3 Column Radiator
• 4 x Secure brackets
• 1 x Fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
