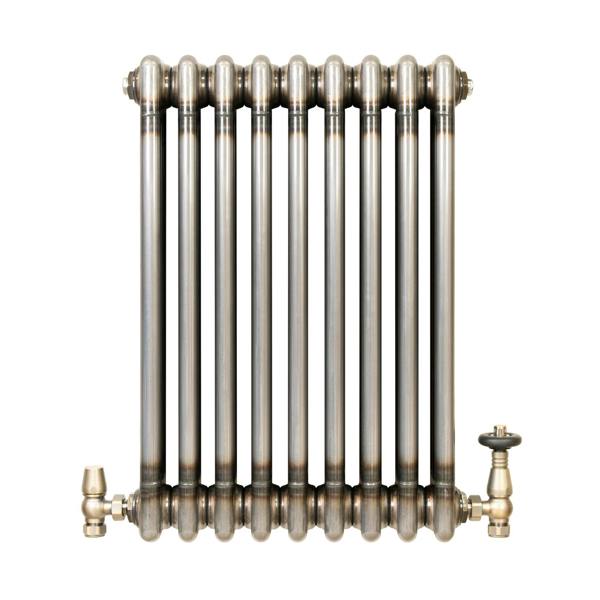

Traditional 3 Column Radiator & Valves - 600mm x 425mm - Raw Metal

From MonsterShop, this traditional 3 column radiator and valve set brings an industrial raw metal finish to everyday heating. Designed for a range of interiors, it combines a bold horizontal profile with practical performance, making it a distinctive choice for living spaces, hallways or other compact areas where both appearance and reliable warmth matter.

Made from 1.5mm carbon steel with a lacquer coating, the radiator features 9 columns and 25mm steel tubes. It is engineered for dependable heat output, while the angled thermostatic valves allow straightforward temperature adjustment through a rotary knob. A matching raw metal finish across the radiator and valves creates a cohesive look, and the included cleaning brush helps keep the surface looking its best over time.

Key features

• Raw metal finish with lacquer coating
• Made from 1.5mm carbon steel
• 9-column horizontal design
• 2883 BTU heat output at 60
• Angled thermostatic valves with rotary knob control
• Adjustable temperature range from 6–28 degrees
• Compatible with all UK and EU heating systems
• 15-year radiator guarantee

Specifications

• Valve material: Powder coated brass
• Maximum working temperature: 95C
• Maximum working pressure: 10 Bar
• Test pressure: 13 Bar
• Inlets/outlets size: Standard 0.5" BSP bore
• Connection: 1/2" x 15mm
• BTU rating at 50: 2298
• Watt rating at 50: 673
• Watt rating at 60: 845
• Maximum valve pressure: 10
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Testing: BS EN 442 and ISO9001:2015 standards
• Certification: CE and UKCA
• Recommended application area: 4.5m²
• Heating surface area: 1.29m²

Sizing

• Radiator: 425mm W x 100mm D x 600mm H
• Depth with bracket: 110mm
• Gap between tubes: 45mm
• Individual tube size: 25mm
• Distance from wall to centre of inlet: 60mm
• Valve-to-valve height: 524mm
• TRV: 137mm H x 85mm W x 55mm D
• Lockshield: 87mm H x 75mm W x 34mm D

What's included

• 1 x Traditional 3 column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
