Winchmax 13,500lb (6,123kg) 12V Winch 25m x 10mm Armourline Rope, Remotes

13,500lb (6,123kg) 12V Electric Winch, Armourline Rope, Remotes

Ideal for recovery trucks and 4x4s up to 3. 5T

Features

WINCHMAX Winch

• 13,500lb (6,123kg) straight-line pull 12V electric winch.
• Latest technology long-range wireless remote controls, twin handsets.
• Super powerful 12V 6. 8hp/5. 1kw series wound electric motor.
• Massive ultra-tough three-stage gearbox with hardened steel gears.
• Motor and gearbox casing machined from billet steel for maximum impact protection.
• 25m x 10mm Armourline double braided synthetic rope. 21,000lb (9,500kg) average breaking load.
• New through-drum rope connection with grub screw clamp for ultra-secure rope attachment to drum.

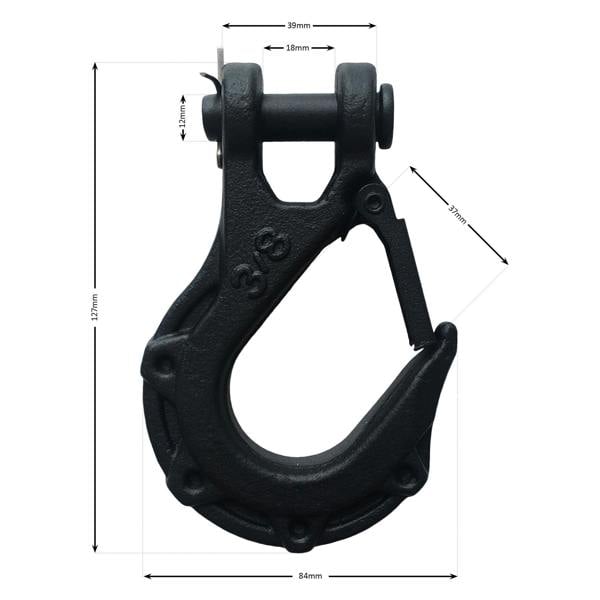

• 3/8 inch Tactical Clevis Hook. G70 grade forged with black coating. Safety catch and hand saver included.
• WINCHMAX Aluminium hawse fairlead. Precision CNC milled, laser-etched.
• Heavy-duty one-piece solenoid, latest design, ultra-reliable and IP67 waterproof.
• Power in/out big grip wander lead with extra-long 4. 5m cord.
• Sliding ring gear freewheel clutch.
• High tensile fixing bolt kit.
• Strong WINCHMAX branded cover to protect from water and road grime.
• Heavy-duty & built to last - gross weight 30kg.
• CE certified & built to ISO9001 quality management system requirements.

Don't forget Your Mounting plate.

WINCHMAX make the best mounting plates for quick and easy installation. Click here for our recommended mounting plates for this winch.

Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical. VAT invoice provided with every sale.

Further Details

Single Line Rated Pull

13,500lb (6,123kg)

Motor

12V 6. 8hp/5. 1kw, series wound

Control

Remote Switch, 4. 5m lead, in and out

Gear Train

3 stage planetary

Gear Reduction Ratio

265:1

Clutch

Sliding ring gear

Braking Action

Automatic in the drum

Drum Size

Diameter 64mm (2. 5") Length 224mm (8. 82")

Drum Finish

Black, painted

Cable

25m x 10mm Armourline synthetic rope

Hook

Tactical clevis hook 3/8 inch, black

Fairlead

One-piece billet aluminium hawse fairlead

Battery

Recommended 650CCA minimum for winching

Battery Leads

2 gauge, 1. 83m (72â€) 25mmsq - 5. 6mm diameter

Winch Finish

powder coated

Weight (GW)

30kg (88lb)

Overall Dimensions (LxWxH)

536 x 160 x 218mm (21. 3" x 6. 3†x 8. 6")

Mounting Bolt Pattern

10. 00" ±0. 015" x 4. 50†±0. 010" (254 x 114. 3mm)

Motor Current

65-500A

No Load Line Speed

6. 5m/min (21. 3 ft/min)

Layer Rated

 Line pull (lb)

 Line Pull (kg)

 Total Rope On Drum (ft/m)

 1

 13,500

 6,123

 20. 4/6. 22

 2

 10,010

 4,540

 41/12. 0

 3

 8,840

 4,009

 71/21. 0

 4

 7,410

 3,361

 85/24. 0

Line Pull (lb/kg)

 Line Speed ft/min (m/min)

 Motor (Amps)

 0 (0)

 24. 6ft (7. 5m)

 70A

 3,000 (1,363)

 11. 48ft (3. 5m)

 138A

 6,000 (2,727)

 8. 86ft (2. 7m)

 218A

 9,000 (4,090)

 7. 72ft (2. 2m)

 260A

 13,500 (6,123)

 5. 58ft (1. 7m)

 415A
