Wire Rope Pulling Hoist Winch 5400KG (ACE 5.4T Lifting 8T Puller with 20M Rope)

Designed for demanding lifting and pulling tasks, the ACE Wire Rope Pulling Hoist Winch range offers capacities from 800kg to 5400kg, with the option of shear pins where required. Suitable for applications across construction, oil and chemical companies, mines, quarries, agricultural and forestry work, each hoist is built for portable, versatile use when you need to pull, lift, lower or secure loads.

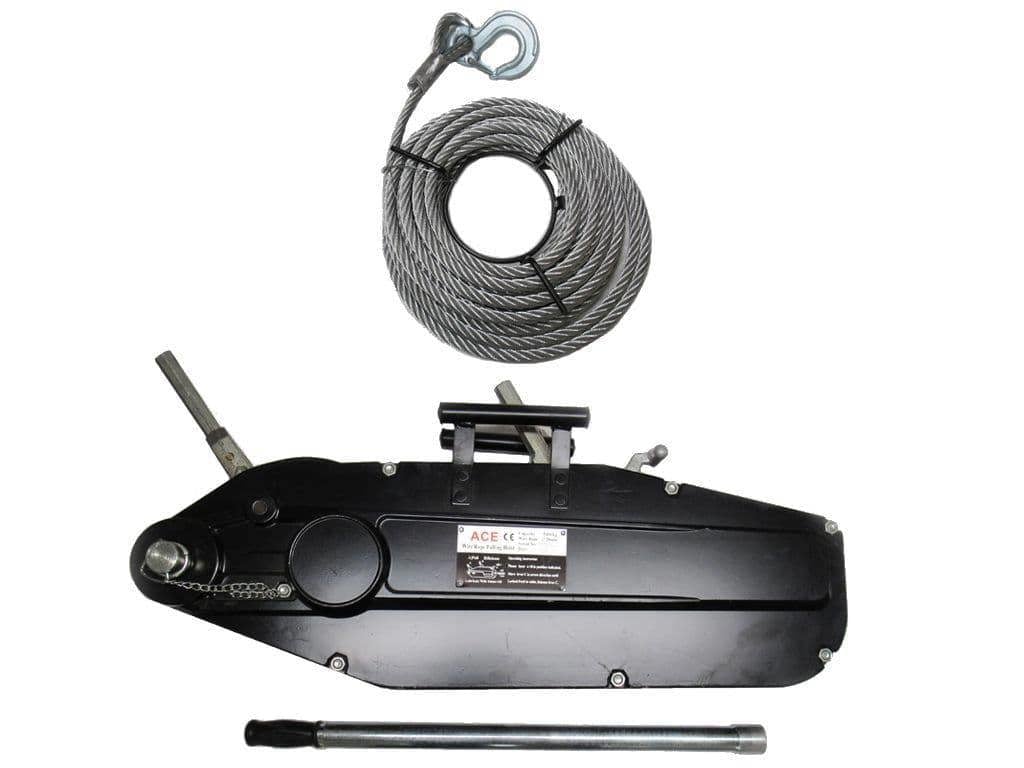

Every Wire Rope Hoist features an aluminium body housing steel mechanisms, and is supplied with 20 metres of steel wire rope plus a detachable, extendable aluminium handle. A fitted hook with safety catch helps prevent loads from slipping during lifting or pulling, while overload protection supports safer operation. For added reassurance, the hoist conforms with BS EN 13157: 2004 + A1: 2009, and is supplied with a test certificate via email.

Key features

• Aluminium body with steel mechanisms
• 20 metres of steel wire rope included
• Detachable, extendable aluminium handle
• Hook with safety catch to help prevent load slippage
• Overload protection
• Conforms with BS EN 13157: 2004 + A1: 2009
• Test certificate supplied via email
• Optional spare shear pins, if required

Sizing

• 800kg: 0.8T lifting capacity; 1.25T pulling capacity; 8.3mm wire rope diameter; 426mm overall length x 64mm overall width x 238mm overall height
• 1600kg: 1.6T lifting capacity; 2.5T pulling capacity; 11mm wire rope diameter; 545mm overall length x 97mm overall width x 284mm overall height
• 3200kg: 3.2T lifting capacity; 5.6T pulling capacity; 16mm wire rope diameter; 660mm overall length x 116mm overall width x 325mm overall height
• 5400kg: 5.4T lifting capacity; 8T pulling capacity; 20mm wire rope diameter; 930mm overall length x 150mm overall width x 385mm overall height

Safety information

• Do not exceed the safe working load; shear pins are designed to help prevent overloading
• Use the hook safety catch to help reduce the risk of loads slipping during lifting or pulling
