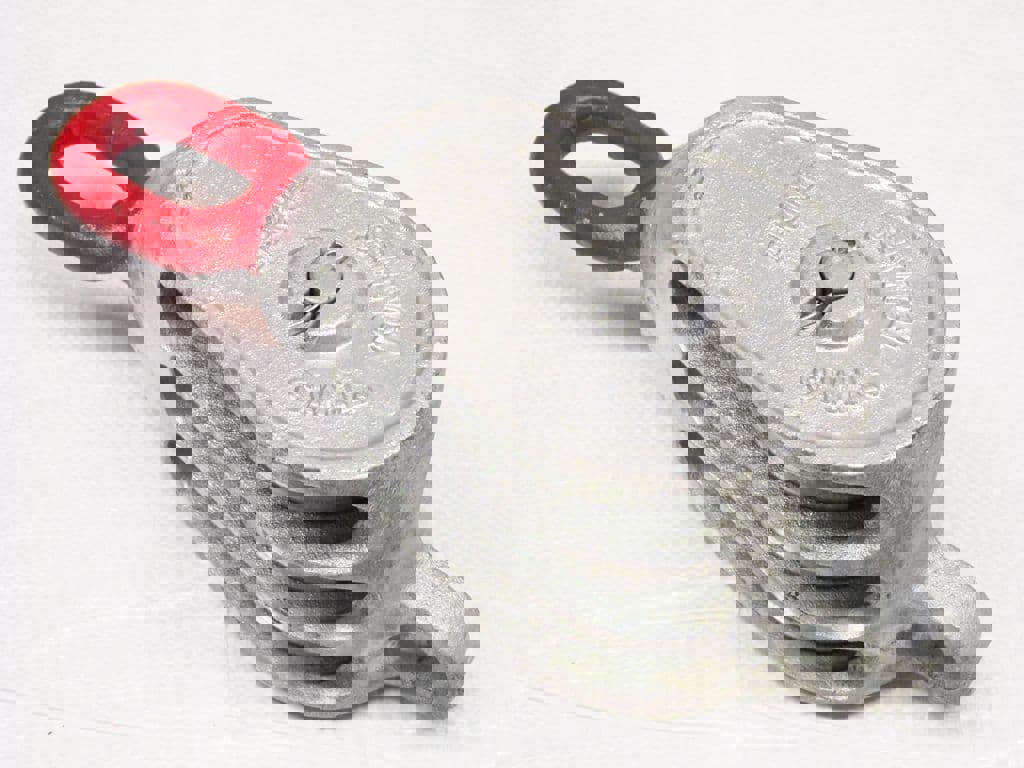

1 Ton 4" Red Head GMI Treble Sheave Block With Swivel Eye Galvanised - 16MM Wire Rope Safety Lift

Designed for controlled lifting and towing tasks, the GMI Treble Sheave Pulley Block is a 4" block with a swivel eye, made for use with wire rope and for re-directing rope where needed. With a 1 Ton safe working load, it suits a wide range of practical site and workshop applications where dependable rope handling is required.

This pulley block conforms to BS EN 13157:2004+A1:2009, and test certificates are supplied via email for added assurance.

Key features

• Treble sheave pulley block with swivel eye
• Suitable for lifting, towing and rope re-direction
• Conforms to BS EN 13157:2004+A1:2009
• Safe working load (SWL): 1 Ton
• Suitable rope diameter: 16MM
• Size: 4"

Sizing

• A: 230MM
• B: 63MM
• C: 82.5MM
• D: 16.5MM
• E: 34.5MM
• F: 76.5MM
• G: 19.5MM
