20MM Grade 80 4 Ton Swivel Eyebolt With Link - 2T Lifting Rotating Hoisting Point

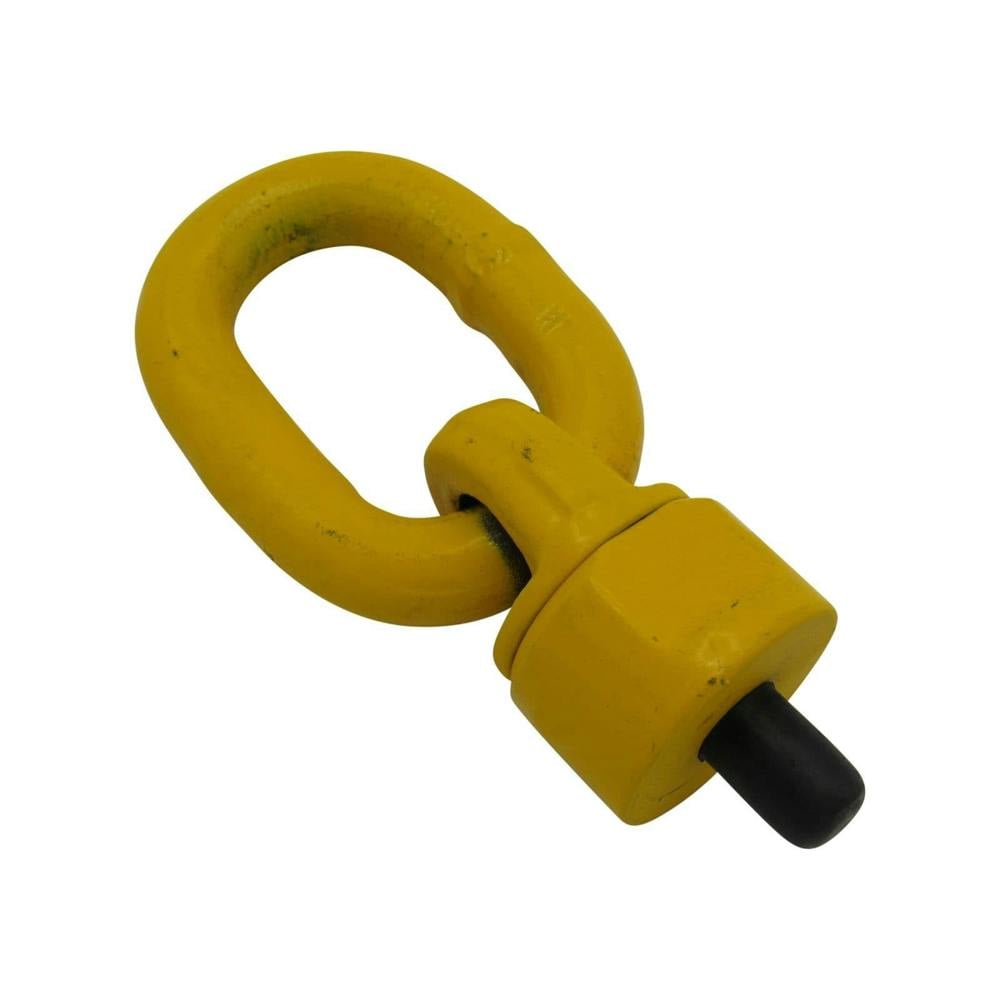

20MM Grade 80 Swivel Eyebolt With Link

Safe Working Load: 2 ton @ 0 degrees  Material - Grade 80 (g80) Finish - Yellow (may vary) Factor of safety 4:1 Conforms to: BS EN 1677

Product Code 0 Degree SWL (Tonne) A (MM) B (MM) C (MM) D (MM) E (MM) F (MM) G (MM) H (MM) I (MM) SFSEBL08 0. 30 8 54 12 16 78 52. 5 29 14 14 SFSEBL10 0. 45 10 54 18 16 81 51. 5 29. 5 36. 5 14. 2 SFSEBL12 0. 50 12 54. 5 20 17. 5 80 52 29. 5 36 14. 4 SFSEBL16 1. 12 16 55 18. 5 15. 5 80. 5 52 29 36. 5 14 SFSEBL20 2 20 69 30. 5 19. 8 101. 5 70 32. 5 50 16 SFSEBL24 3. 15 24 81 31 22. 8 119 84 38. 5 57. 5 18. 2 SFSEBL30 5. 30 30 98. 5 36 24. 2 123. 5 82 39. 2 66 20 SFSEBL36 8 36 112 49 25 157 114 51. 5 80 22

These are a high quality piece of lifting gear, manufactured from grade 80 steel which is a high-strength material. The swivel feature of these eyebolts allow for loading from a variety of angles whilst simultaneously providing multiple lifting positions, which creates great versatility in demanding environments. *Test Certificate will be supplied via email*
