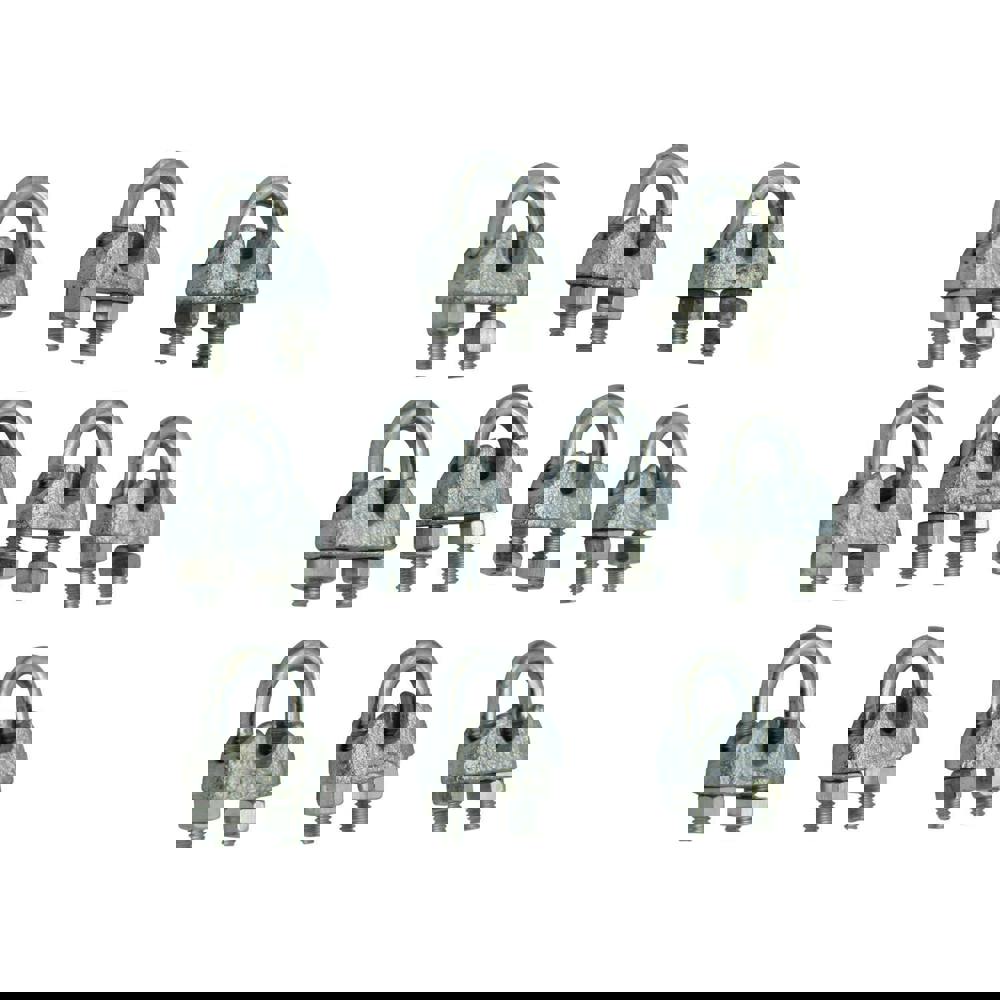

22MM Wire Rope Grips x10 - Galvanised DIN741 Bulldog Cable Clip

Designed for secure wire rope terminations, these 22mm galvanised Commercial Wire Rope Grips (DIN741) are supplied in a practical pack of 10. Commonly used to form loops in wire rope, they suit applications where a dependable mechanical grip is required, including use aboard boats, in public areas and for yacht rigging.

Finished in galvanised coating for corrosion resistance, each grip is sized to suit 22mm wire rope and is intended for straightforward fitting when installed correctly.

Key features

• Suits 22mm wire rope
• DIN741 wire rope grip design
• Galvanised finish for corrosion resistance
• Pack quantity: 10
• Suitable for creating loops in wire rope
• Typical use includes boats, public areas and yacht rigging

Sizing

• A: 44mm
• B: 24mm
• C: 32mm
• D: 14mm
• E: 86mm
• F: 35mm
• G: 61mm

Safety information

• Before fitting, grease the threads on the nuts and bolts
• Keep spacing between grips at least 6 times the diameter of the rope
• Fit with the U-bolt on the unloaded end of the rope and ensure correct orientation
• Tighten each nut evenly and in turn to achieve the recommended torque settings
• Leave unused for 24 hours, then re-check torque settings and re-tighten if required
• After the first application of load, re-check torque settings and re-tighten if required
• During service, periodically check torque settings
