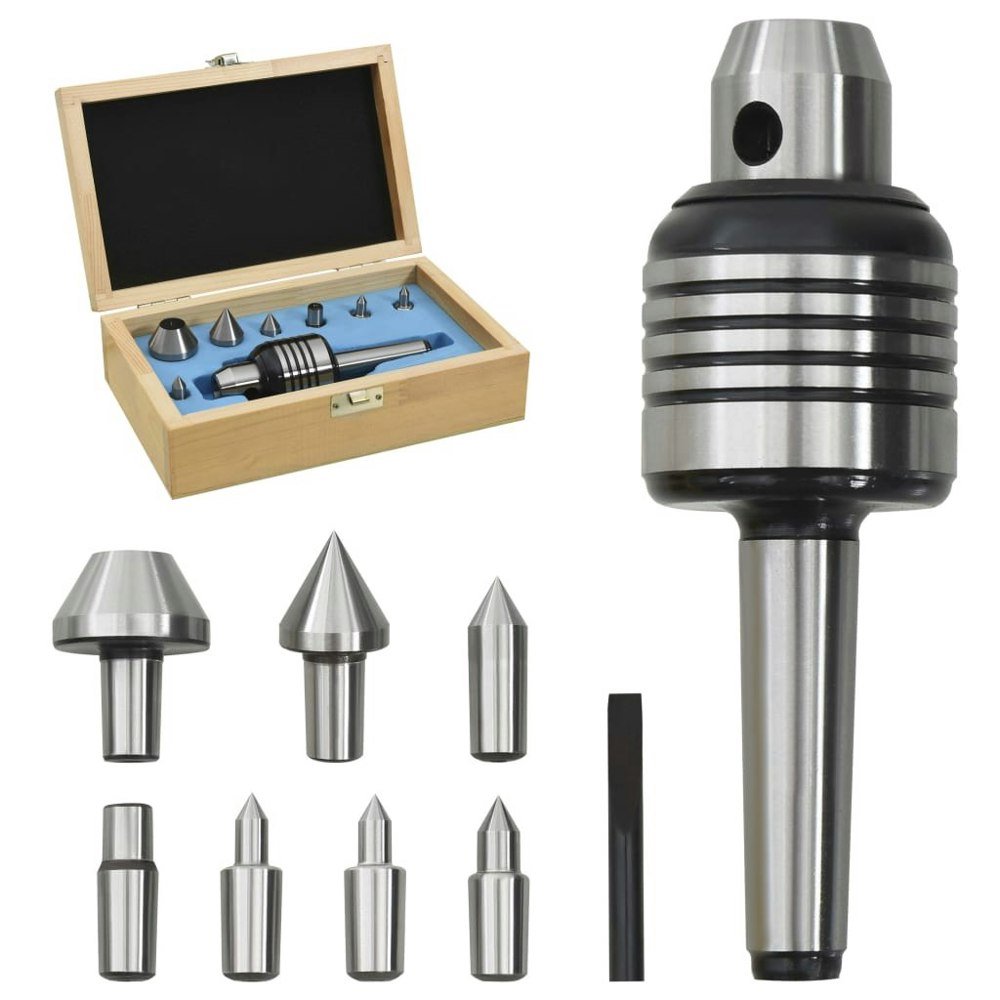

Berkfield 10 Pieces Live Center Set MT2

For machining long, slender and heavier workpieces, the Berkfield 10 Pieces Live Center Set MT2 provides accurate support with a live centre and 7 interchangeable heads. Centre hole positioning helps maintain high dimensional accuracy, while the range of supplied heads gives greater flexibility when working on more detailed pieces.

Made from 40 Cr steel, this set combines high hardness with corrosion resistance and heat resistance. It has a maximum speed of 3000 rpm, a maximum load of 200 kg, and a run out of 0.02-0.04 mm. A storage box with anti-collision lining is included for organised storage and transport.

Key features

• 40 Cr steel construction
• Maximum speed: 3000 rpm
• Maximum load: 200 kg
• Run out: 0.02-0.04 mm
• Point angle: 60
• 7 interchangeable heads
• Model number: MT2

Sizing

• Live center length (with tip): 17 cm
• Live center length (with tip): 17.5 cm
• Live center length (with tip): 16.5 cm
• Live center length (with tip): 16 cm
• Live center diameter: 4.6 cm

What's included

• 1 x Live center
• 7 x Replaceable head
• 1 x Wrench
• 1 x Storage box
