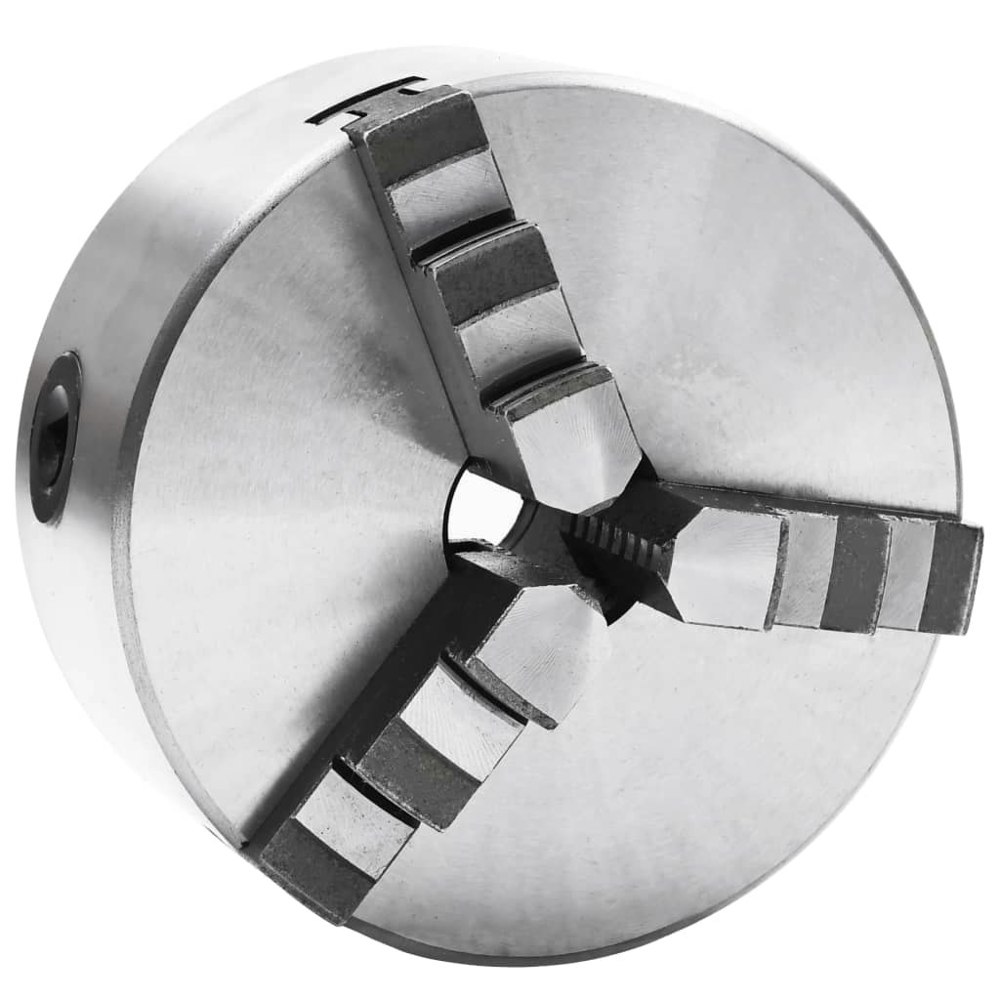

Berkfield 3 Jaw Self-Centering Lathe Chuck 125 mm Steel

Built for accurate holding across a range of workpiece shapes, the Berkfield 3 Jaw Self-Centering Lathe Chuck offers a compact steel construction with a self-centring 3 jaw layout. It supports clamping on solid or hollow circular material, as well as triangular and hexagonal material, making it suitable for varied lathe work and original fabrication projects.

Made from HT300 steel, this chuck combines a hard-wearing build with straightforward operation. Its 125 mm outside diameter and 30 mm passage are matched with internal and external jaw clamping ranges to suit different setups, while the stated run out of 0.08 supports precise positioning in use.

Key features

• HT300 steel construction
• Self-centring 3 jaw design
• Colour: silver and black
• Maximum speed: 3000 R/min

Specifications

• Number of jaw: 3
• Passage: 30 mm
• Cylindrical inner passage: 95 mm
• Clamping range (internal jaw): 2.5 - 40 mm
• Clamping range (external jaw): 38 - 110 mm
• Run out: 0.08
• Net weight: 4.7 kg
• 3 x M8 holes

Sizing

• Outside diameter: 125 mm
• Total height: 58 mm

What's included

• 1 x lathe chuck
• 3 x jaw
• 1 x chuck key

Rackhams Reference : 9UDV1TLNYQ
