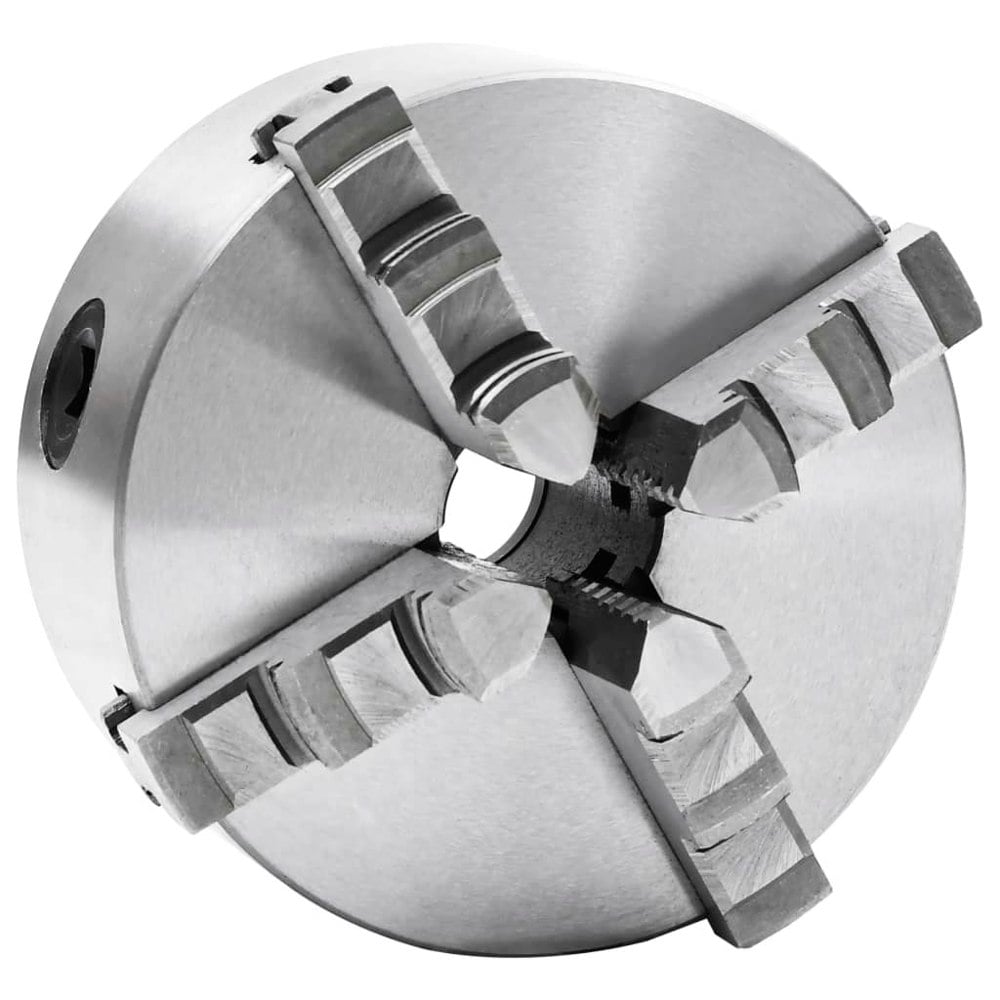

Berkfield 4 Jaw Self-Centering Lathe Chuck 125 mm Steel

For turning work that calls for secure, even clamping across different stock shapes, the Berkfield 4 Jaw Self-Centering Lathe Chuck offers a compact steel setup with a 125 mm outside diameter. Its 4 jaw self-centring design supports accurate holding on solid or hollow circular material, as well as triangular and hexagonal material.

Made from HT300 steel, this chuck combines a hard-wearing construction with straightforward operation. The 30 mm passage, 95 mm cylindrical inner passage and defined internal and external clamping ranges make it suitable for a broad range of workshop machining tasks.

Key features

• HT300 steel construction
• 4 jaw self-centring design
• Colour: silver and black
• Maximum speed: 3000 R/min

Specifications

• Passage: 30 mm
• Cylindrical inner passage: 95 mm
• Clamping range (internal jaw): 2. 5 - 40 mm
• Clamping range (external jaw): 38 - 110 mm
• 3 x M8 holes
• Run out: 0. 08
• Net weight: 5. 3 kg

Sizing

• Outside diameter: 125 mm
• Total height: 58 mm

What's included

• 1 x lathe chuck
• 4 x jaw
• 1 x chuck key
