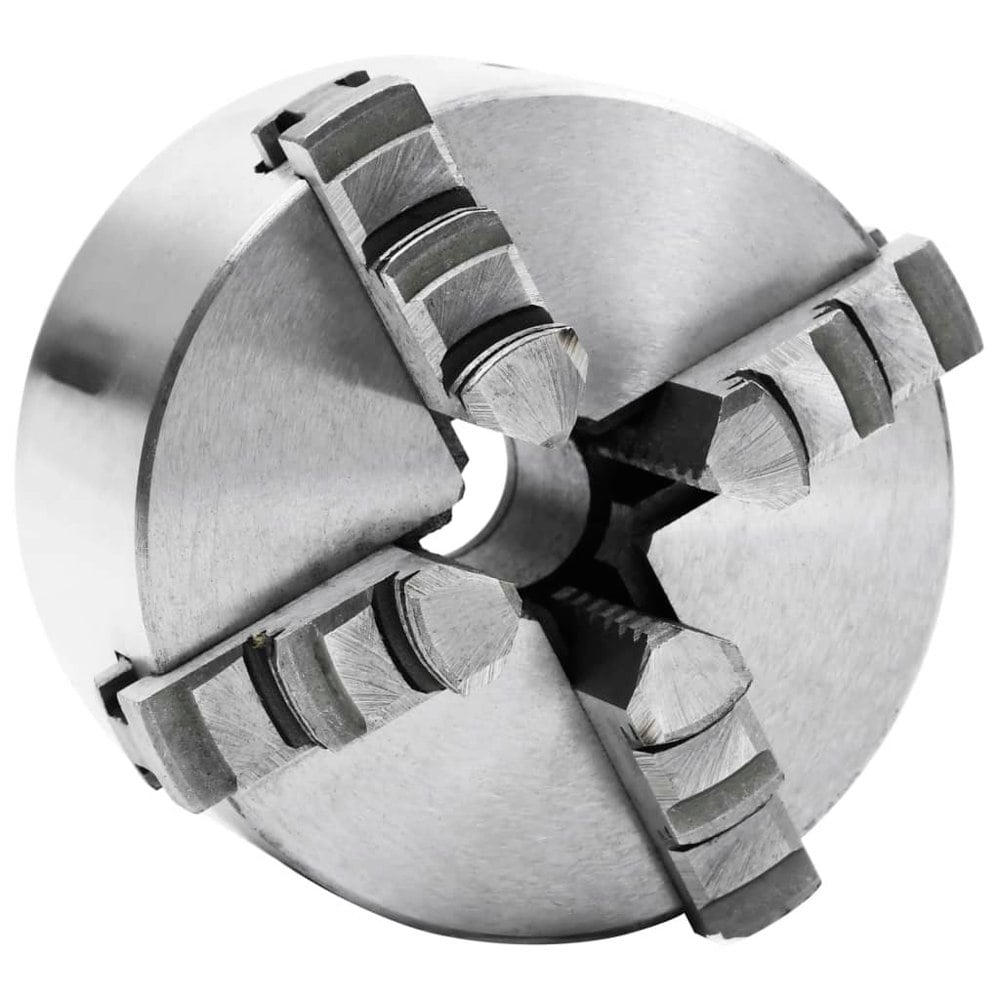

Berkfield 4 Jaw Self-Centering Lathe Chuck 100 mm Steel

Built for accurate holding across a range of workpiece shapes, the Berkfield 4 Jaw Self-Centring Lathe Chuck is suitable for fixed solid or hollow circular material, as well as triangular and hexagonal stock. Its 4 jaw self-centring design supports precise clamping in a compact format that is straightforward to operate.

Made from HT300 steel, this chuck combines a hard-wearing construction with a 100 mm outside diameter and a 22 mm passage. It is suited to workshop and machining setups where secure, consistent grip is required across different material profiles.

Key features

• 4 jaw self-centring lathe chuck
• HT300 steel construction
• Colour: silver and black
• Maximum speed: 3500 R/min

Specifications

• Number of jaw: 4
• Passage: 22 mm
• Cylindrical inner passage: 72 mm
• Clamping range (internal jaw): 2 - 30 mm
• Clamping range (external jaw): 30 - 80 mm
• 3 x M8 holes
• Run out: 0. 08
• Net weight: 3. 2 kg

Sizing

• Outside diameter: 100 mm
• Total height: 55 mm

What's included

• 1 x Chuck key
• 4 x Jaw

Rackhams Reference : MGBZF78Z7N
