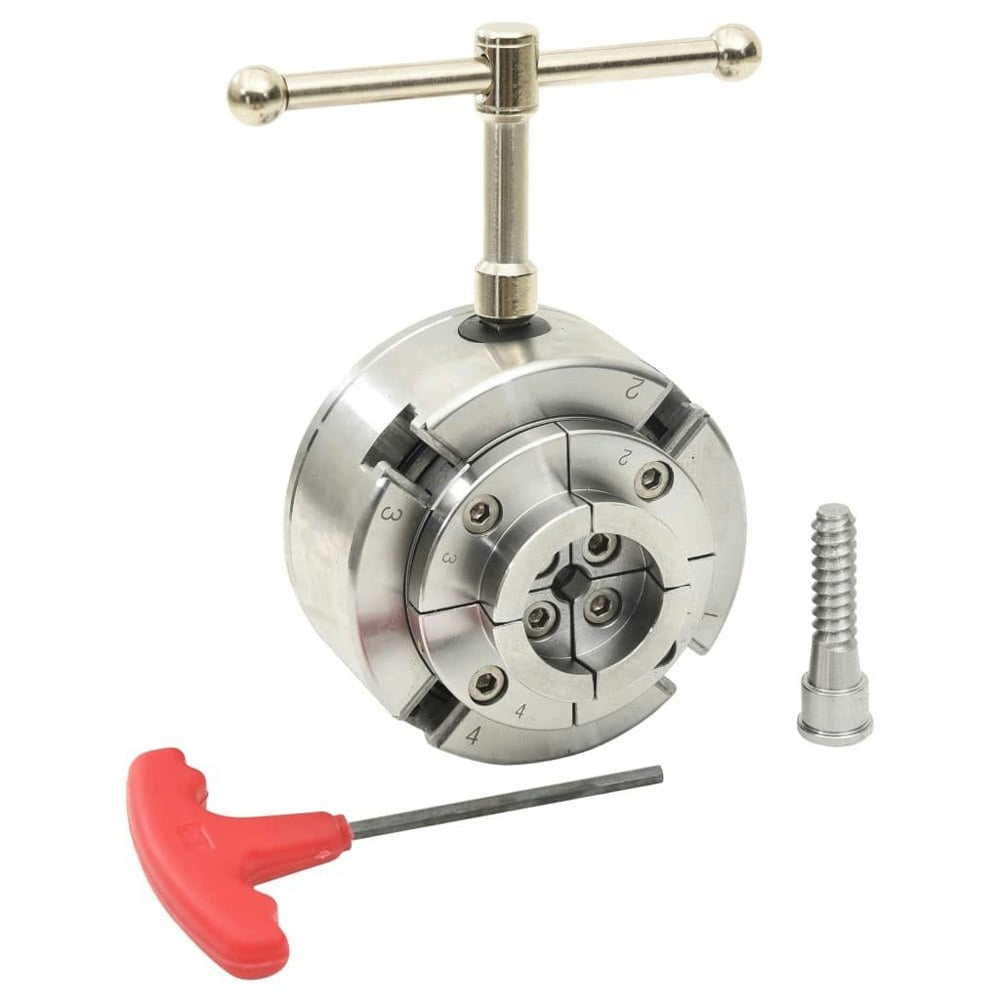

Berkfield 4 Jaw Wood Chuck with M33 Connection Steel Silver 96 mm

For woodturning setups that need secure, accurate holding, the Berkfield 4 Jaw Wood Chuck offers a self-centring steel construction with an M33 thread and 3.5 pitch. Its 4-jaw design supports clamping across a range of shapes, including solid or hollow circular material, triangular material and hexagonal material.

Finished in silver and red, this chuck is suited to a wide range of wood chucking lathe arrangements. The steel body provides a durable build, while the jaw configuration allows for precise clamping across the stated external and internal ranges.

Key features

• Steel construction
• Silver and red finish
• 4-jaw design
• Self-centring
• Thread: M33 with pitch 3.5

Specifications

• External clamping width: 45 mm - 81 mm
• Inner span: 32 mm - 67 mm
• Thread depth: 55 mm
• Maximum speed: 3000 R/min
• Net weight: 2.4 kg
• Assembly required: Yes

Sizing

• Overall diameter: 96 mm
• Depth without jaws: 50 mm
• Depth with jaws: 71 mm

What's included

• 1 x Chuck
• 1 x Spanner
• 1 x T spanner
• 1 x Wood screw
