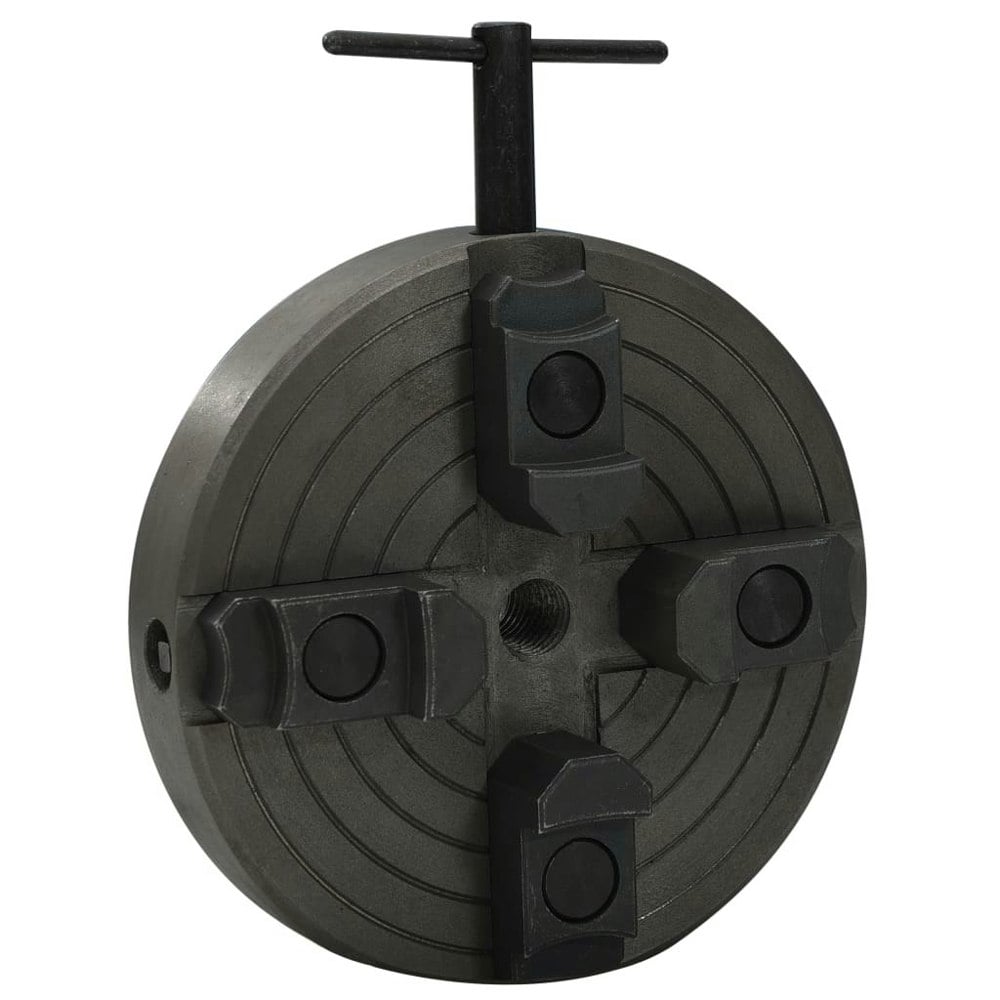

Berkfield 4 Jaw Wood Chuck with M18 Connection Steel Black 150x63 mm

Built for woodturning setups that require flexible holding options, the Berkfield 4 Jaw Wood Chuck features a steel construction and an M18 connection with 3.5 pitch. The 4-jaw format supports accurate clamping across a range of shapes, including solid or hollow circular material, triangular material and hexagonal material.

Its black finish gives a clean workshop look, while the non-self-centring design suits applications where independent jaw adjustment is required. This chuck fits a wide range of wood chucking lathe and is supplied for assembly.

Key features

• Steel construction
• Black finish
• 4 jaws
• Not self centering
• Thread: M 18 with pitch 3.5

Specifications

• The smallest diameter can be clamped about 15x15 mm
• Clamping range (internal jaw): 15 - 138 mm
• Clamping range (external jaw): 52 - 165 mm
• Thread depth: 39 mm
• Complete depth without jaws: 39 mm
• Complete depth with jaws: 63 mm
• Maximum speed: 3000 R/min
• Net weight: 2.48 kg
• Assembly required: Yes

Sizing

Overall dimensions: 150 x 63 mm (Diameter x H)

What's included

• 1 x Spanner
