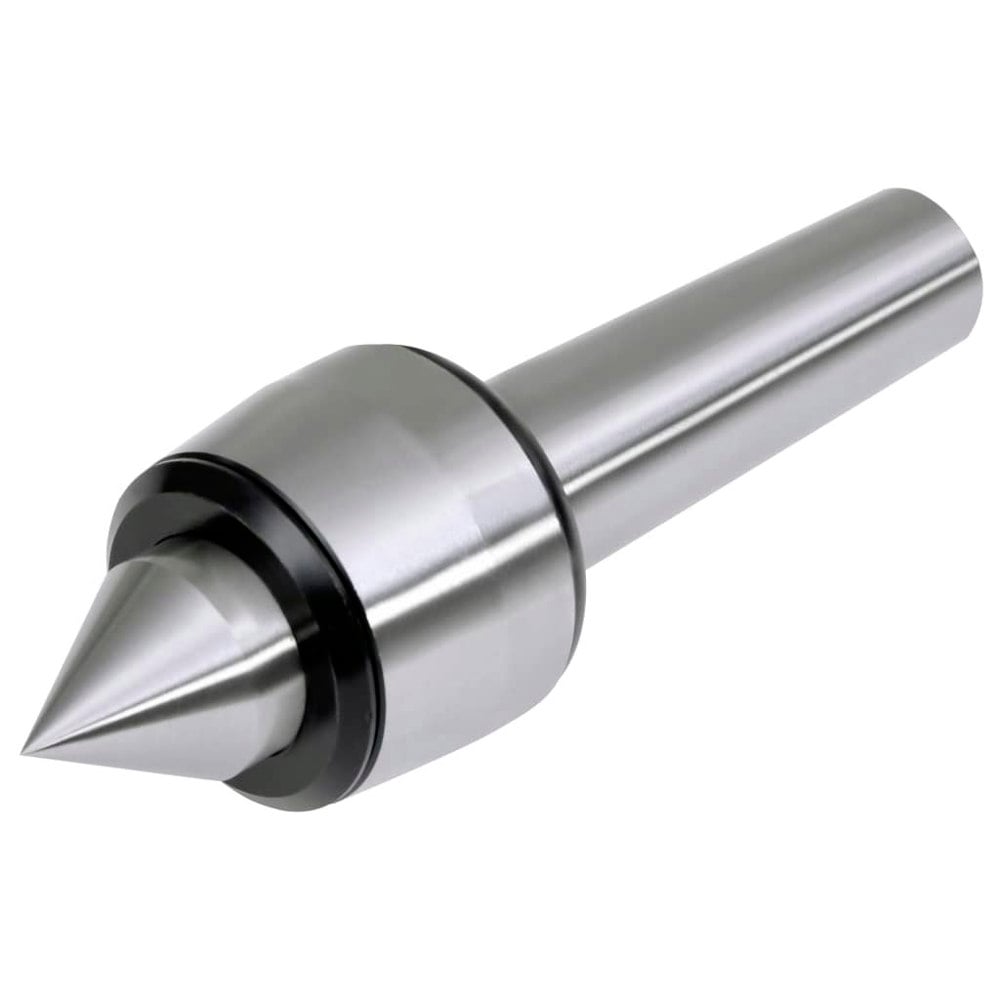

Berkfield Revolving Live Center MT4

Accurate support for woodturning on compatible lathes, the Berkfield Revolving Live Center MT4 combines an MT4 taper with a 60-degree point for precise alignment during turning work. Internal ball bearings promote smooth running, while the 40 Cr steel construction offers high hardness, heat resistance and corrosion resistance.

Finished in silver and black, this workshop component is suited to a range of turning applications and is specified for concentric operation with a run out of 0. 01 mm.

Key features

• 40 Cr steel construction
• Silver and black finish
• MT4 taper
• Internal ball bearings
• 60-degree point
• Maximum speed: 2500 rpm
• Maximum load: 600 kg
• Model number: MT4

Specifications

• Run out: 0. 01 mm

Sizing

• 60 x 191. 7 mm (Diameter x L)
• Total length: 18. 5 mm

Rackhams Reference : AE1BIXQXV2
