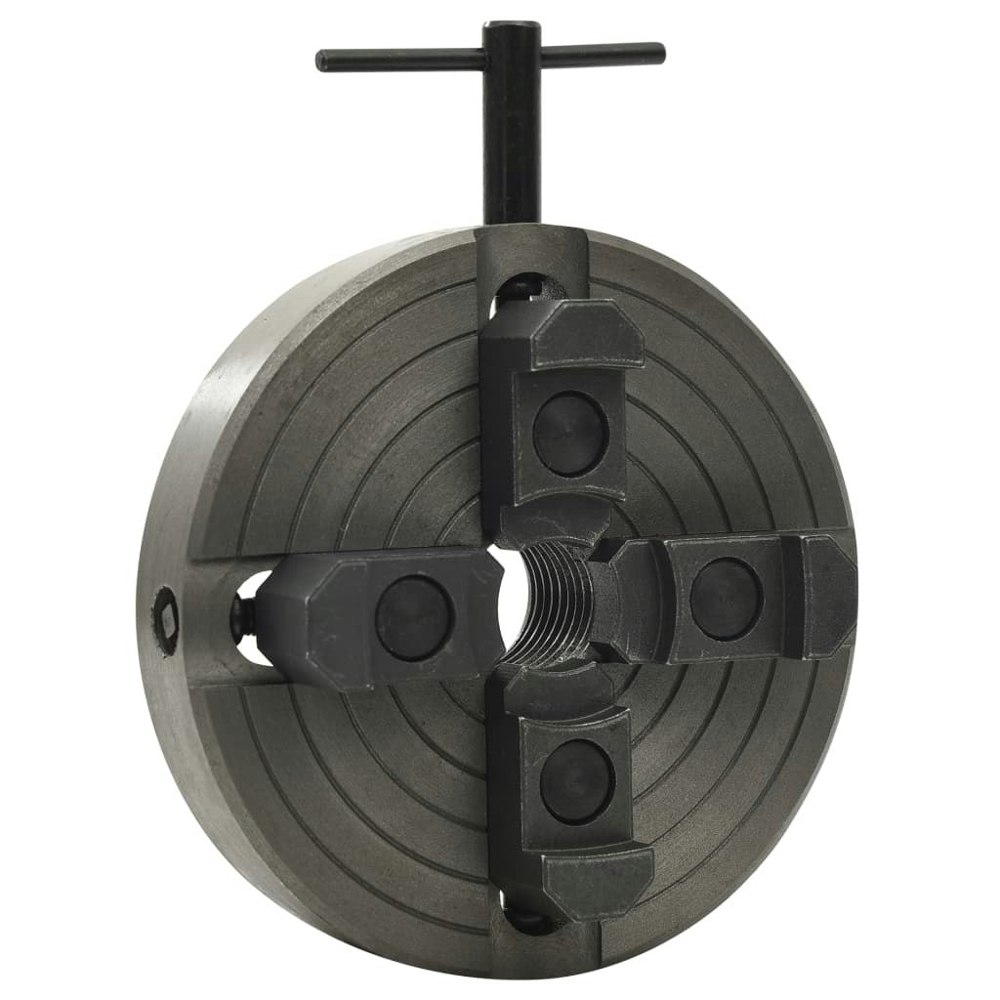

Berkfield 4 Jaw Wood Chuck with M33 Connection Steel Black 150x63 mm

Built for woodturning setups with an M33 connection, the Berkfield 4 Jaw Wood Chuck offers accurate clamping across a broad range of shapes. Its 4-jaw configuration accommodates fixed solid or hollow circular material, as well as triangular and hexagonal material.

Steel construction gives it a robust, durable build, while the non-self-centring design suits a wide range of wood chucking lathes. The chuck has a black finish and supports clamping from approximately 15 x 15 mm at the smallest size, with separate internal and external jaw ranges for varied holding requirements.

Key features

• Steel construction with black finish
• 4-jaw design
• Not self centering
• Thread: M 33 with pitch 3. 5
• Suitable for fixed solid or hollow circular material, triangular material and hexagonal material
• Maximum speed: 3000 R/min

Specifications

• The smallest diameter can be clamped about 15 x 15 mm
• Clamping range (internal jaw): 15 - 138 mm
• Clamping range (external jaw): 52 - 165 mm
• Thread depth: 39 mm
• Complete depth without jaws: 39 mm
• Complete depth with jaws: 63 mm
• Net weight: 2. 48 kg
• Assembly required: Yes

Sizing

Overall dimensions: 150 x 63 mm (Diameter x H)

What's included

• 1 x Spanner
