Berkfield Garden Water Pump with Stand

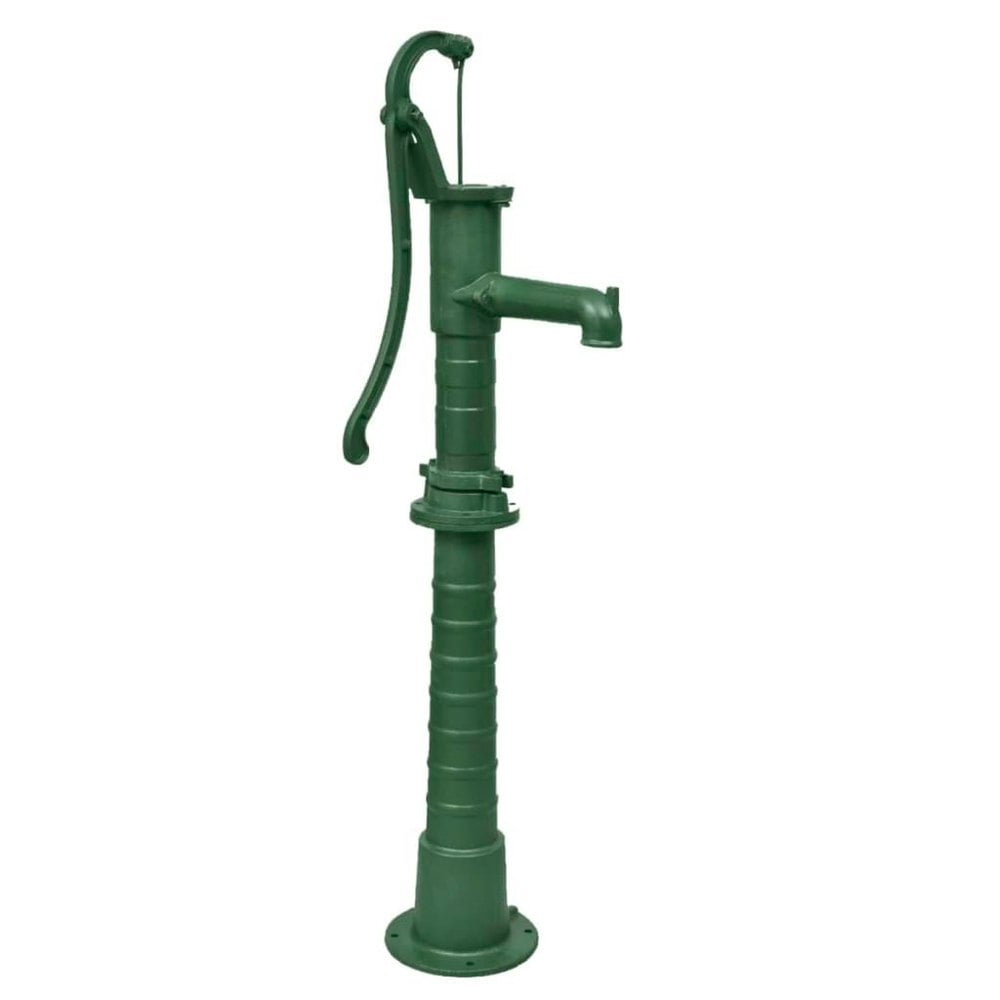

Traditional garden styling meets practical water access with the Berkfield Garden Water Pump with Stand. Made from cast iron and finished in green, this hand-operated pump draws water from the ground with a simple up-and-down handle action, delivering flow through the tap outlet.

The matching stand raises the overall working height to 131 cm for a more comfortable operating position. Pump and stand can also be used separately, and the stand is suitable for most cast iron hand pumps with 4 x 12 mm mounting holes at the bottom. A 38 mm (1 1/2") female threaded fitting is positioned at the base of the pump for connection to a male threaded pipe or hose connector, with a PVC pipe or stainless steel pipe required to divert water into the pump.

Key features

• Hand-operated handle action pumps water to the tap outlet
• Cast iron construction
• Stand increases the working height for easier operation
• Pump and stand can be used separately
• 38 mm (1 1/2") female threaded fitting at the bottom for pipe or hose connection
• Stand suitable for most cast iron hand pumps with 4 x 12 mm mounting holes

Specifications

Materials and colour

• Material: Cast iron
• Colour: Green

Overall

• Total height: 131 cm

Water pump

• Size: 65 x 40 x 15 cm
• Weight: 13. 5 kg
• Max. Pressure head: 8 m
• Connection: 38 mm (1 1/2") female threaded fitting (to be connected to male threaded pipe or hose connector at the bottom of the pump)
• Base diameter: 16 cm
• Base contains 4 x 12 mm holes for mounting bolts

Stand for water pump

• Size: 66 x 23 x 23 cm
• Weight: 13 kg
• Top diameter: 16 cm
• Base diameter: 23 cm
• Suitable for most cast iron hand pumps with 4 x 12 mm mounting holes at the bottom

What's included

• Water pump
• Stand

Care and maintenance

Empty the pump during the winter to prevent freezing inside.

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
