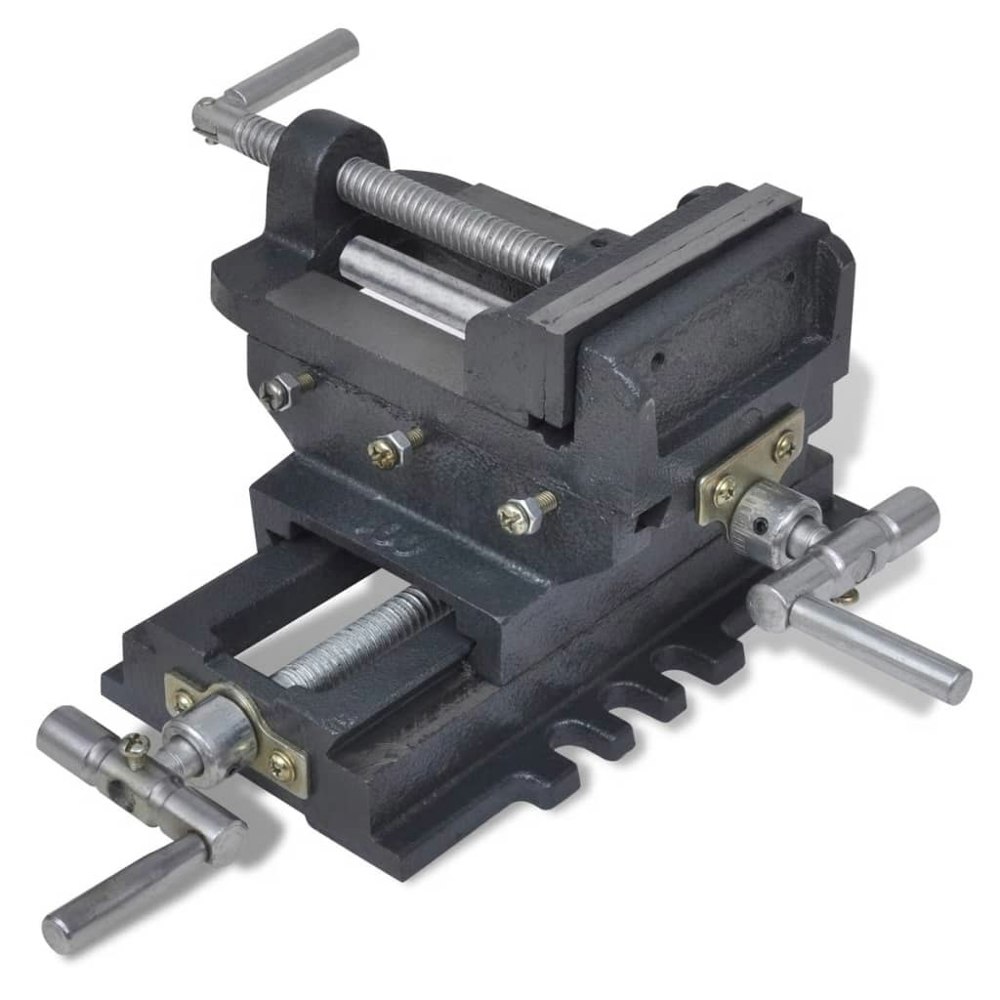

Berkfield Manually Operated Cross Slide Drill Press Vice 78 mm

For accurate drilling and milling, the Berkfield manually operated cross slide drill press vice holds the workpiece securely while allowing controlled adjustment across two axes. Its cast iron construction provides a solid, stable feel, and the base mounts directly to a workbench for fixed positioning.

Lead screws control the longitudinal and cross travel, making it well suited to repeated hole positioning on the same workpiece. This makes it a practical addition for metalworking setups where consistent alignment and firm clamping are required.

Key features

• Cast iron construction
• Manually operated cross slide mechanism
• Suitable for drilling and milling
• Two-axis adjustment by lead screws
• Stable base for workbench mounting

Specifications

• Jaw width: 100 mm
• Jaw opening: 78 mm
• Jaw depth: 37 mm
• Longitudinal travel: 80 mm
• Cross travel: 80 mm

Sizing

• Overall height: 140 mm
• Base size: 230 x 140 mm

Rackhams Reference : 2D93YJE84X
