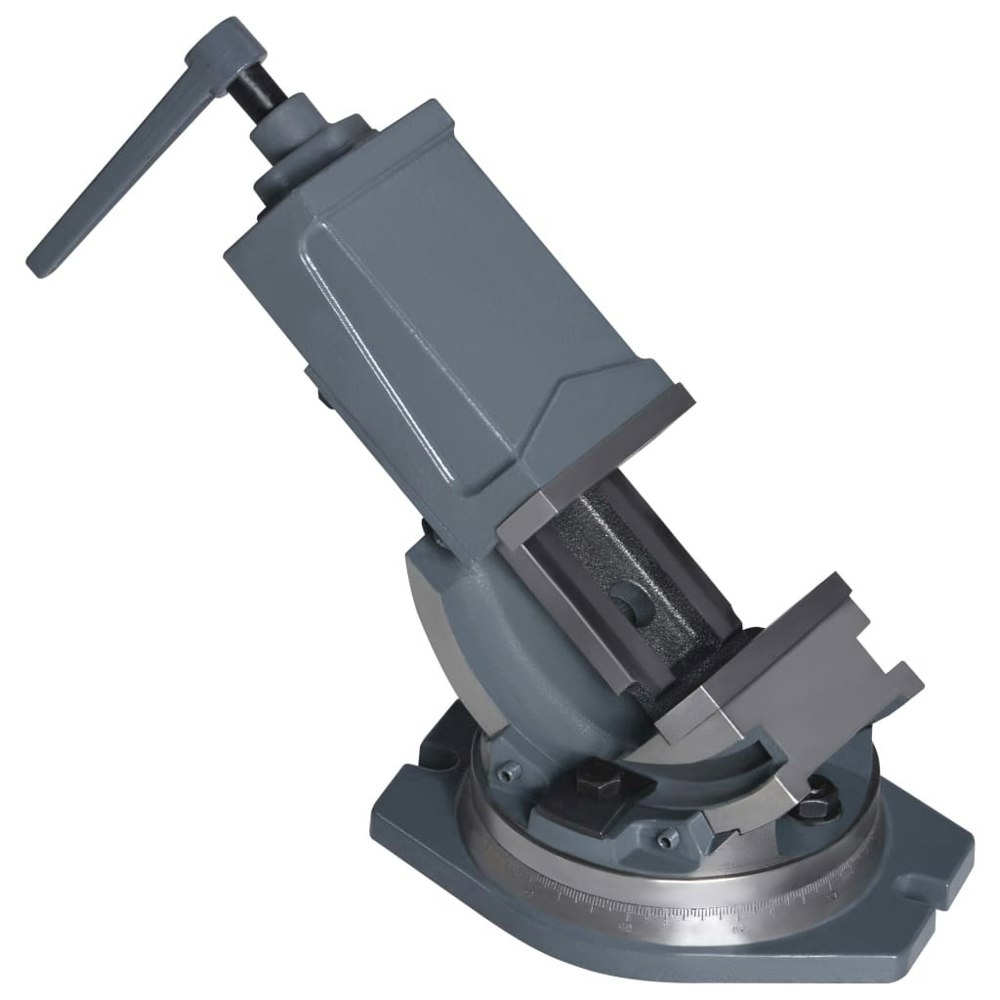

Berkfield 2-Axis Tilting Vice 100 mm

Built for accurate workshop clamping, the Berkfield 2-Axis Tilting Vice combines a rotating and tilting mechanism with a 100 mm jaw width for controlled positioning during machining and fabrication tasks. Its cast iron construction and solid thread provide stable, straightforward adjustment, while the hardened jaws support demanding drilling and clamping work.

Fine scale division allows precise angle setting from 0 - 90 degrees, with the selected position secured by a clamping lever. A stable base enables bench mounting, making it suitable for drilling, welding, milling, cutting and grinding where exact positioning is required.

Key features

• Cast iron construction
• Grey finish
• 100 mm jaw width
• 87 mm jaw opening
• 45 mm clamping depth
• Tilting and rotating 2-axis mounting
• Fine scale division

Sizing

• 320 x 175 mm
• Height adjustable from 170 mm to 400 mm
• Mounting distance approx. 155 mm

Rackhams Reference : 3XW6EN28XC
