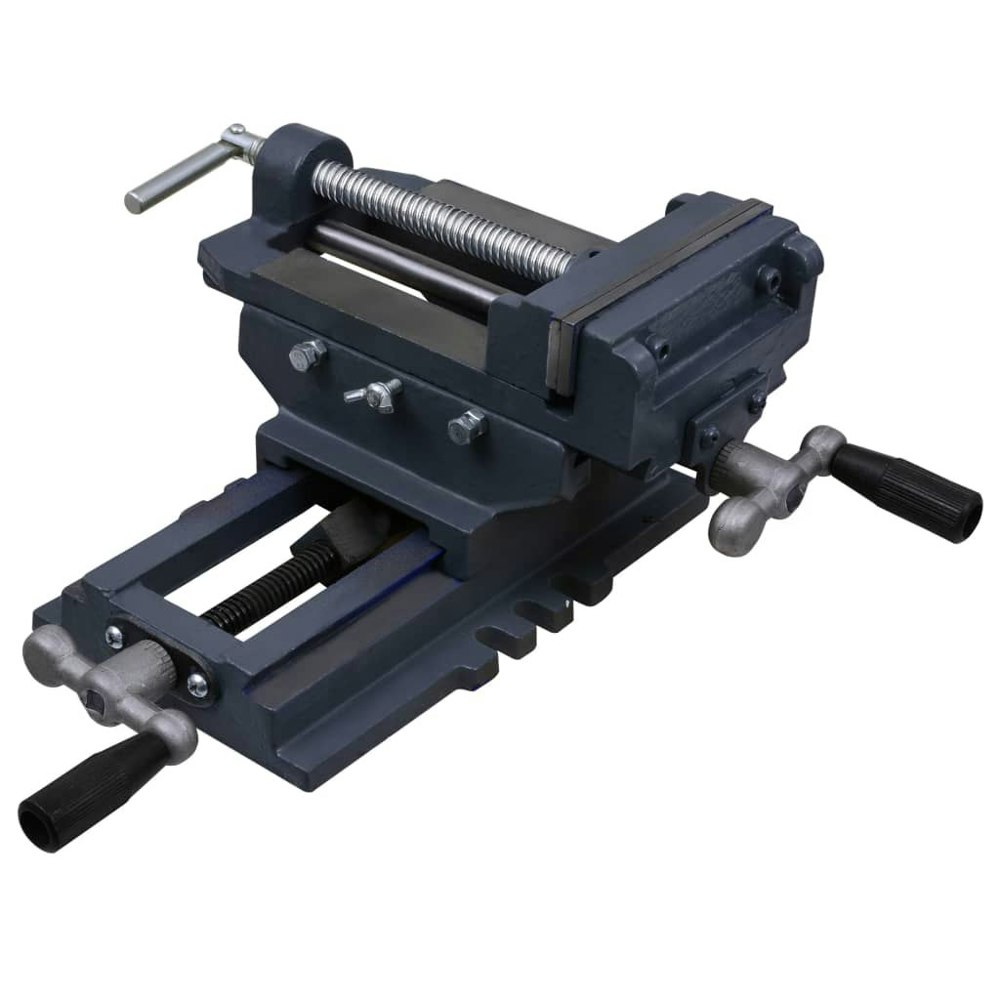

Berkfield Manually Operated Cross Slide Drill Press Vice 150 mm

Built for accurate positioning during drilling and milling, the Berkfield manually operated cross slide drill press vice secures metalwork firmly while allowing controlled movement across two axes. The cast iron body provides a solid, stable construction, and the base mounts directly to a workbench for fixed use.

Lead screw adjustment on both axes makes it well suited to repetitive drilling tasks where consistent positioning is required across the same workpiece. Its clamping capacity and travel range support precise workshop setup without unnecessary complexity.

Key features

• Cast iron construction
• Manually operated cross slide mechanism
• Two-axis adjustment by lead screws
• Stable base for workbench mounting

Sizing

• Jaw width: 145 mm
• Jaw opening: 150 mm
• Jaw depth: 37 mm
• Longitudinal travel: 100 mm
• Cross travel: 100 mm
• Overall height: 157 mm
• Base size: 375 x 370 mm
