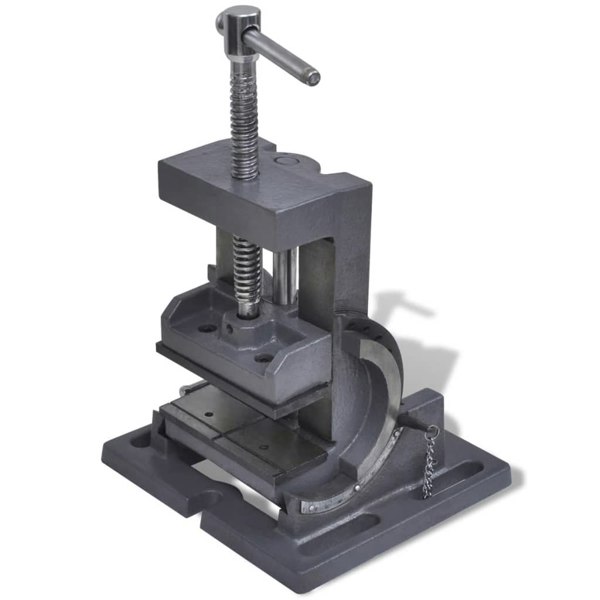

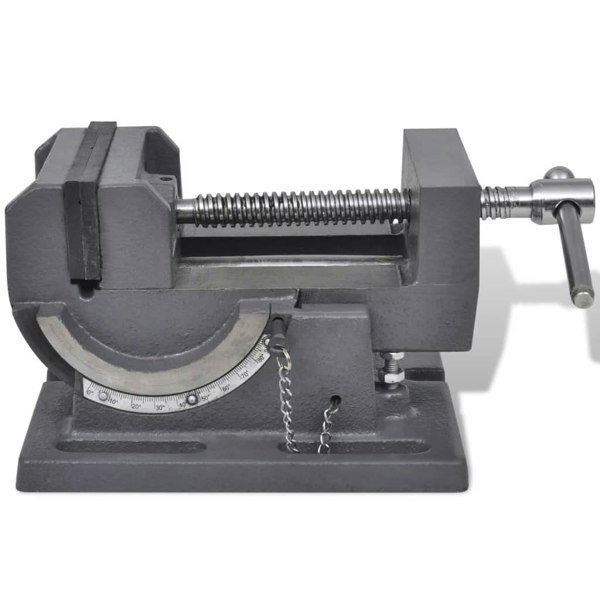

Berkfield Manually Operated Tilting Drill Press Vice 110 mm

Built for drilling and milling setups, the Berkfield manually operated tilting drill press vice combines a cast iron body with a stable base for secure bench mounting. Its adjustable tilt range from 0 to 90 degrees allows the workpiece to be positioned at different angles, with a locking pin on the chain fixing the vice every 15 degrees.

Compact and light in form, it suits workshops where a sturdy clamping solution is needed without taking up unnecessary space. The strong clamping force helps keep the vice steady during use, while the cast iron construction provides a solid, durable build.

Key features

• Cast iron construction

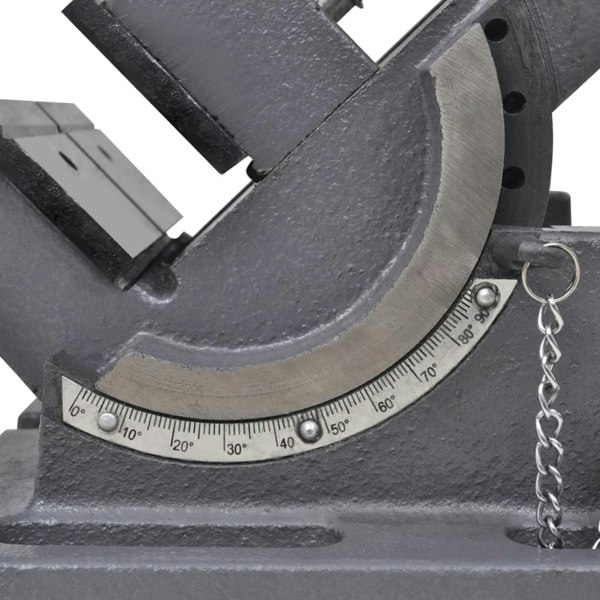

• Adjustable tilt from 0 - 90 degrees
• Locking pin fixes the tilt position every 15 degrees
• Stable base for workbench mounting

Sizing

• Jaw width: 105 mm
• Jaw opening: 110 mm
• Jaw depth: 47 mm
• Base size: 190 x 185 mm (L x W)
• Height: 120 mm (lying)
• Height: 220 mm (standing)
