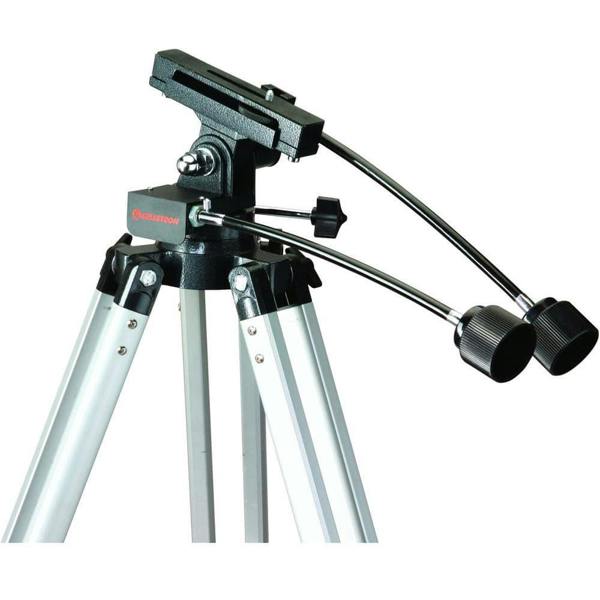

Celestron Heavy Duty Alt-Azimuth Tripod

Steady support and precise manual control make the Celestron Heavy-Duty Alt-Azimuth Tripod a practical choice for binoculars, spotting scopes, small to medium-sized telescopes and cameras. This manual alt-azimuth tripod combines a 5kg maximum load capacity with an adjustable working height from 785mm to 1250mm, giving it the flexibility to suit both seated and standing use.

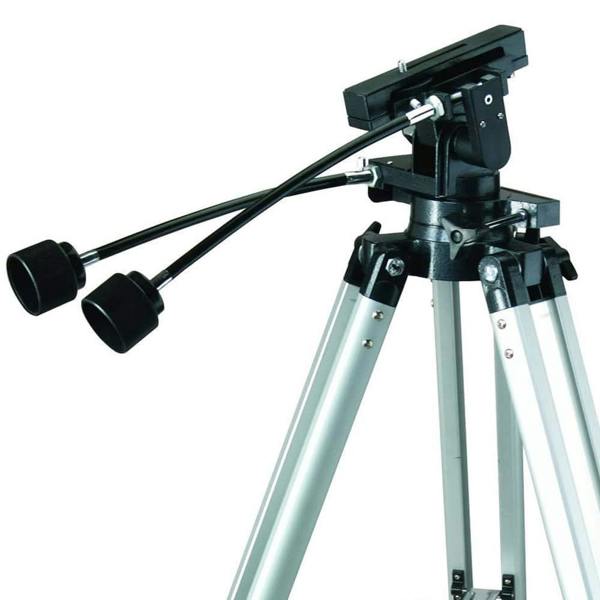

An all-metal alt-azimuth head allows broad manual movement, while slow-motion control handles provide finer altitude and azimuth adjustment. The sliding 1/4"-20 mounting bolt helps position equipment more centrally over the tripod for improved balance, which is particularly useful with longer optical setups. Aluminium legs, a centre brace and a metal accessory tray complete a robust, considered design for hands-free viewing and observation.

Key features

• Manual alt-azimuth tripod head
• Maximum load capacity: 5kg
• Adjustable height from 785mm to 1250mm
• Aluminium legs with centre brace for added stability
• Slow-motion control handles for fine altitude and azimuth adjustment
• Sliding 1/4"-20 mounting bolt for balance adjustment

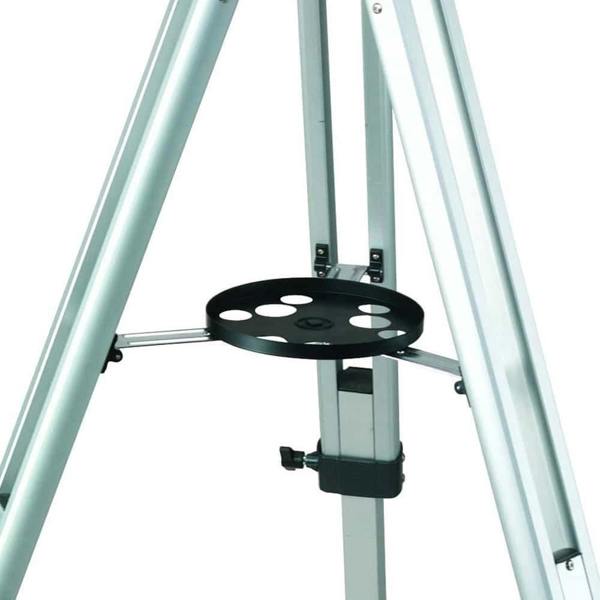

• Metal accessory tray fitted to the centre brace
• 2-year warranty
• Model number: 93607-CGL

Specifications

Support and head

• Mount type: Manual alt-azimuth
• Maximum load: 11. 0 lbs (5kg)
• Mount thread: 1/4"-20
• 360 azimuth rotation with lock disengaged

Legs and setup

• Leg material: Aluminium
• Leg sections: 2
• Leg angles: 19
• Distance between tripod feet at full leg extension: 780mm (30. 7")
• Area covered by the tripod when all three legs are at full extension: 0. 14 sq. m (1. 5 sq. ft. )
• Weight: 7. 8 lbs (3. 54kg)

Sizing

• Folded length: 820mm (32. 3")
• Minimum height: 785mm (30. 9")
• Maximum height: 1250mm (49. 2")
• Maximum height with centre column down: 1250mm (49. 2")

Support & warranty

2-year warranty.

Rackhams Reference : RER3F9HJQC
