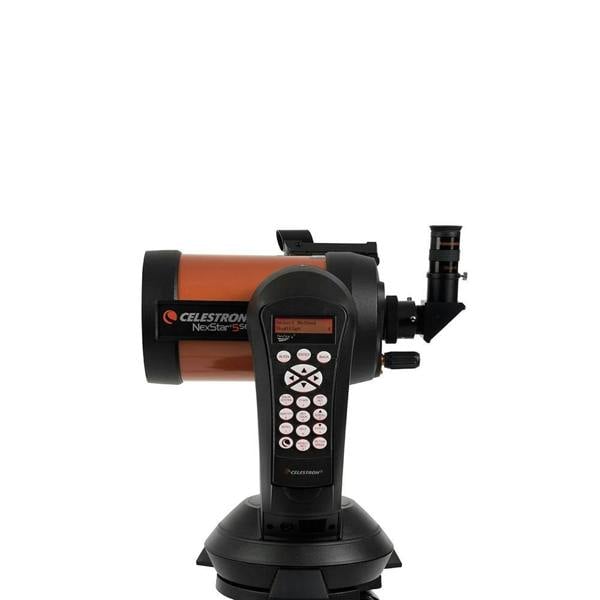

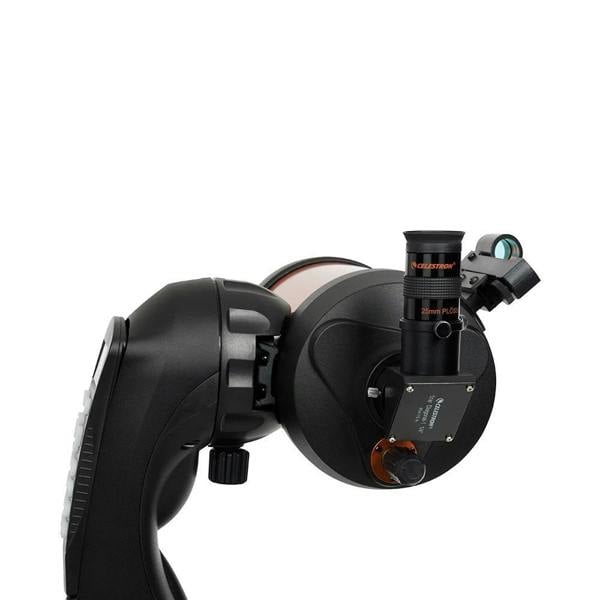

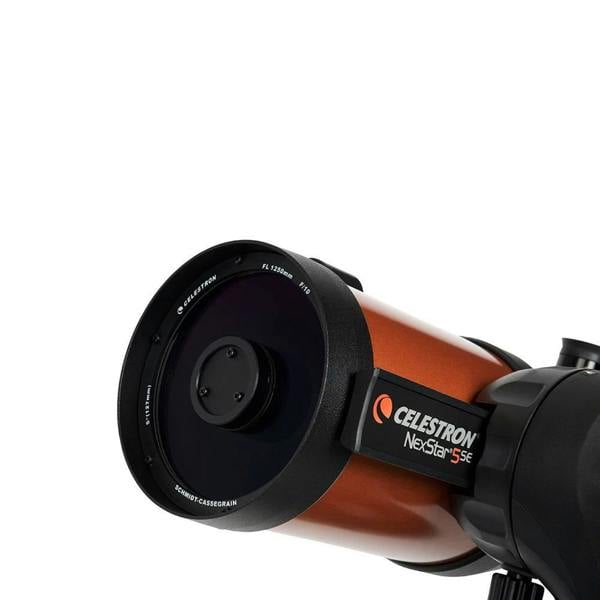

Celestron NexStar 5SE Computerised Telescope

Compact in scale yet notably capable, the Celestron NexStar 5SE is a Schmidt-Cassegrain telescope with a 125mm aperture, 1250mm focal length and f/10 focal ratio on a computerised alt-azimuth single fork arm mount. Celestron’s orange-tube SE design pairs established optics with an automated GoTo system, giving this model a strong balance of portability and guided observing.

The mount locates and tracks from a database of over 40,000 celestial objects, while SkyAlign supports quick setup through a simple three-object alignment process. A 25mm eyepiece is supplied for 50x magnification, and the telescope includes a StarPointer red dot finderscope, 1. 25-inch star diagonal and steel tripod with accessory tray. The optical tube is aluminium and fitted with StarBright XLT optical coatings. For users building a more advanced setup, the NexStar 5SE also supports a range of compatible accessories including SkySync, StarSense AutoAlign and imaging options.

Key features

• 125mm Schmidt-Cassegrain optical system
• 1250mm focal length with f/10 focal ratio
• Computerised alt-azimuth single fork arm mount
• Database of over 40,000 celestial objects with automatic locating and tracking
• SkyAlign alignment technology
• StarBright XLT optical coatings
• Steel tripod with accessory tray
• 2-year warranty
• Model number: 11036-CGL

Specifications

Optics

• Optical design: Schmidt-Cassegrain
• Aperture: 125mm
• Focal length: 1250mm
• Focal ratio: f/10
• Eyepiece: 25mm
• Magnification with supplied eyepiece: 50x
• Highest useful magnification: 295x
• Lowest useful magnification: 18x
• Limiting stellar magnitude: 13
• Resolution (Rayleigh): 1. 11 arc seconds
• Resolution (Dawes): 0. 93 arc seconds
• Light gathering power compared to human eye: 329x
• Secondary mirror obstruction: 51mm (2. 0")
• Secondary mirror obstruction by diameter: 40%
• Secondary mirror obstruction by area: 16. 6%
• Optical coatings: StarBright XLT
• Finderscope: StarPointer red dot finderscope
• Star diagonal: 1. 25" star diagonal
• Optical tube material: Aluminium
• Dovetail: CG-5 dovetail bar

Mount

• Mount type: Computerised altitude-azimuth single fork arm
• Instrument load capacity: 10 lbs (4. 54 kg)
• Tripod leg diameter: 50. 8mm (2") stainless steel
• Slew speeds: 9 slew speeds - max speed 3/second
• Tracking rates: Sidereal, Solar and Lunar
• Tracking modes: Alt-Az, EQ North & EQ South
• Dovetail compatibility: CG-5 dovetail
• Number of auxiliary ports: 1x Aux port
• Autoguide port: No
• USB port: Yes, hand control input
• Power requirements: 8-AA batteries (not included) | 12 VDC-750 mA (Tip positive)
• Motor drive: DC servo motors
• Alignment procedures: SkyAlign, 1-Star Align, 2-Star Align, Auto 2-Star Align, Solar System Align, EQ North / EQ South Alignment (EQ align requires an equatorial wedge)
• Periodic error correction: No
• Computerised hand control: Double line, 18 character Liquid Crys

Build

• Product weight: 16. 78 kg
• Optical tube weight: 6 lbs (2. 7 kg)
• Mount head weight: 7 lbs (3. 2 kg)
• Tripod weight: 10 lbs (4. 54 kg)
• Accessory tray: Yes
• Skill level: Intermediate
• Technologies: All-Star Polar Alignment, CPWI, S. N. Special Edition, SkyAlign Technology, StarBright XLT

Sizing

• Optical tube length: 330mm (13")
• Optical tube diameter: 152mm (6")
• Height adjustment range (includes mount and tripod): 939. 8mm - 2397mm (37" - 55")

In the box

• 25mm eyepiece
• StarPointer red dot finderscope
• 1. 25" star diagonal
• Steel tripod
• Accessory tray
• NexStar+ hand control

Support & warranty

• 2-year warranty

Rackhams Reference : 71GUX9QES2
