Celestron Off-Axis Guider

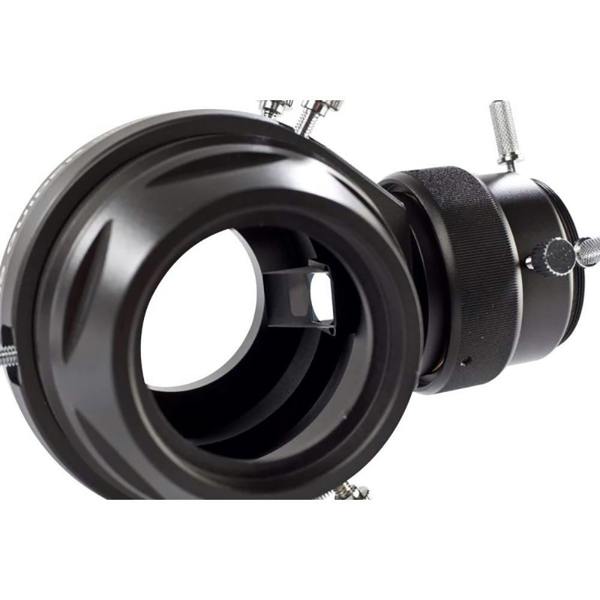

Accurate guiding becomes far more straightforward with the Celestron Off-Axis Guider, an astroimaging accessory for long focal length telescopes. Suited to Schmidt-Cassegrain and EdgeHD telescopes, it uses a 12. 5mm multi-coated prism to pick up a guide star from the telescope’s focal plane, allowing guiding corrections to match the movement seen by the main imaging camera.

A 48mm clear aperture supports full frame cameras without vignetting, while the fixed-orientation helical focuser allows smooth, precise adjustment of the autoguider focus without rotating the camera. Celestron includes a broad set of spacers and adapters for common imaging configurations, including DSLR cameras, Nightscape CCD cameras and other popular astroimaging cameras, helping to simplify setup across a wide range of systems.

Key features

• 12. 5mm multi-coated prism
• 48mm clear aperture
• Fixed-orientation helical focuser
• Supports full frame cameras without vignetting
• Includes spacers and adapters for DSLR cameras, Nightscape CCD cameras and other popular astroimaging cameras
• Suitable for Schmidt-Cassegrain and EdgeHD telescopes
• Model number: 93648-CGL

Specifications

• Accessory type: Astro photography accessory
• Clear aperture: 48mm (1. 89-inch)
• Prism size: 12. 5mm
• Weight: 18 oz (510 g)

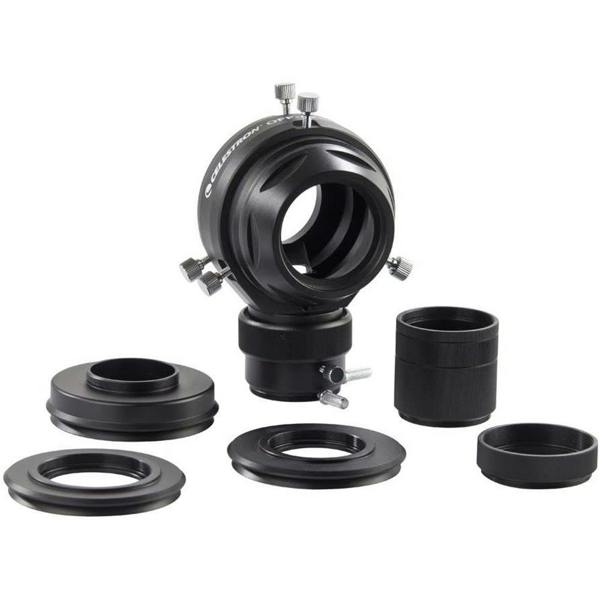

In the box

• SCT/EdgeHD adapter
• Female M48 adapter
• Female M42 (T-thread) adapter
• Male M48 adapter
• Male M42 (T-thread) adapter
• 3 T-thread spacers

Support & warranty

• 2-year warranty
