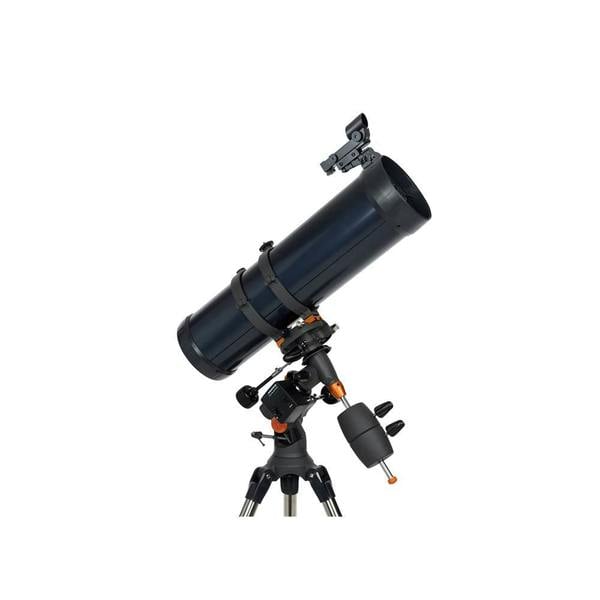

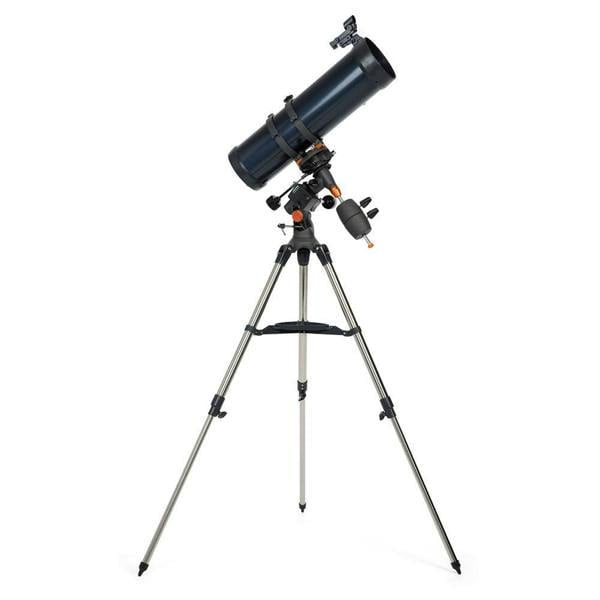

Celestron Astromaster 130EQ Astronomy Telescope

For a first step into astronomy, the Celestron AstroMaster 130EQ brings together a 130mm Newtonian reflector optical tube, a 650mm focal length and a manual German equatorial mount in a well-established beginner-friendly format. Its f/5 optical system is paired with a preassembled tripod and mount, along with 20mm and 10mm eyepieces to get started straight away.

This model uses a CG-3 equatorial mount with setting circles and slow-motion control knobs for fine adjustment in Right Ascension and Declination. The 20mm eyepiece includes a built-in erect image corrector, adding terrestrial viewing alongside astronomy. A built-on StarPointer red dot finderscope helps with locating objects before viewing through the main telescope, while the included Starry Night Basic Edition software and SkyPortal app add useful support for learning the night sky.

Key features

• Newtonian reflector telescope
• 130mm aperture
• 650mm focal length
• f/5 focal ratio
• Manual German equatorial mount with setting circles
• Slow-motion controls on the RA and DEC axes
• 20mm eyepiece with built-in erect image corrector
• Built-on StarPointer red dot finderscope
• 2-year warranty
• Model number: 31045-CGL

Specifications

Optics

• Optical design: Newtonian reflector
• Aperture: 130mm (5. 11")
• Focal length: 650mm (25. 6")
• Focal ratio: f/5
• Highest useful magnification: 307x
• Lowest useful magnification: 19x
• Limiting stellar magnitude: 13. 1
• Resolution (Rayleigh): 1. 07 arc seconds
• Resolution (Dawes): . 89 arc seconds
• Light gathering power (compared to human eye): 345x
• Secondary mirror obstruction: 44mm (1. 73")
• Secondary mirror obstruction by diameter: 34%
• Secondary mirror obstruction by area: 11%
• Optical tube: Aluminum
• Dovetail: CG-5 dovetail bar

Eyepieces and viewing

• Eyepiece 1 focal length: 20mm (. 78")
• Eyepiece 1 magnification: 33x
• Eyepiece 2 focal length: 10mm (. 4")
• Eyepiece 2 magnification: 65x
• Barlow lens: Not included
• Finderscope: Built-on StarPointer red dot finderscope
• Star diagonal: None

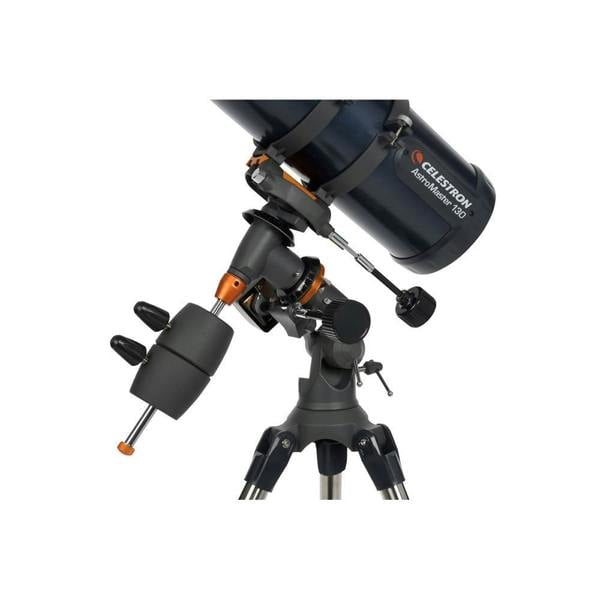

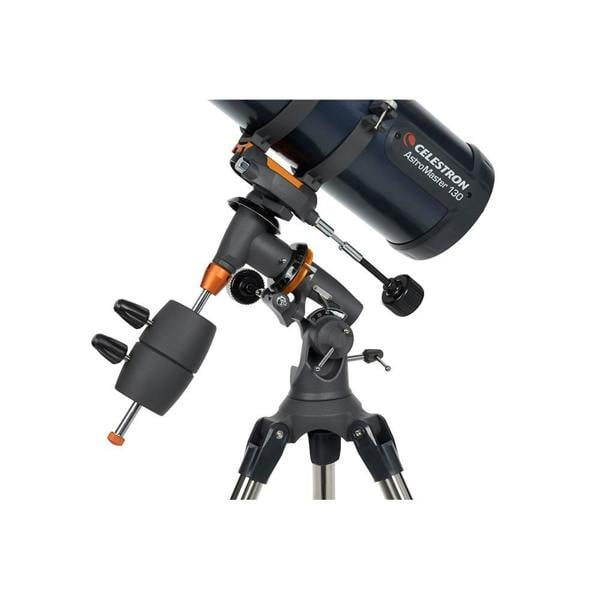

Mount

• Mount type: CG-3 equatorial
• Slew speeds: Manual
• Dovetail compatibility: CG-5 saddle plate
• Tripod leg diameter: 31. 75mm (1. 25") steel
• Accessory tray: Yes
• Tripod weight: 7. 6 lbs (3. 44 kg)

Software

• Celestron Starry Night Basic Edition software
• SkyPortal app

Sizing

• Optical tube length: 610mm (24")
• Height adjustment range (includes mount and tripod): 812. 8mm - 1295. 4mm (32" - 51")

In the box

• Tripod and mount (preassembled)
• 20mm eyepiece with built-in erect image corrector
• Standard 10mm eyepiece
• Red-dot finderscope
• Manual

Support & warranty

• 2-year warranty

Safety information

Never look directly at the Sun with the naked eye or with an optic (unless you have the proper solar filter). Permanent and irreversible eye damage may result. Never use your optic to project an image of the Sun onto any surface. Internal heat build-up can damage the optic and any accessories attached to it. Never leave your optic unsupervised. Make sure an adult who is familiar with the correct operating procedures is with your optic at all times, especially when children are present.
